Speed signal input
Can anyone post a pic or any info for the speed signal input on a 1998. Trying to contact Pioneer Avicd d3 GPS unit.
Reply
Old Mar 31, 2014 | 02:01 PM
Share
  #2
The Wizard's Avatar
The Wizard
Administrator
iTrader: (43)

Joined: Feb 2002
Posts: 16,718
From: Southern California

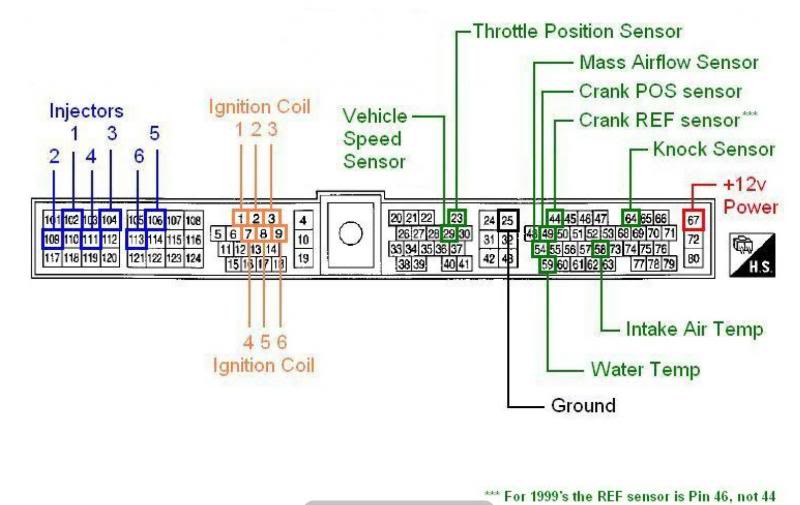

At the ECU, it's pin #29 and is a pink wire with blue stripe.

At the gauge cluster, it's the brown center harness, and of course the wire is pink with a blue stripe.

Name: ECUpinout_zpsae358726.jpg Views: 19 Size: 48.0 KB
Reply
Old Mar 31, 2014 | 02:14 PM
Share
  #3
Michael Feather's Avatar
Michael Feather
Thread Starter
Junior Member

Joined: Sep 2012
Posts: 21
Speed control wire
Thank you that is a big help
