Help with Vacuum Lines Please

Photos taken before I started the job are all a blur. Hope someone can help me out here. It's for the 95 Federal model.

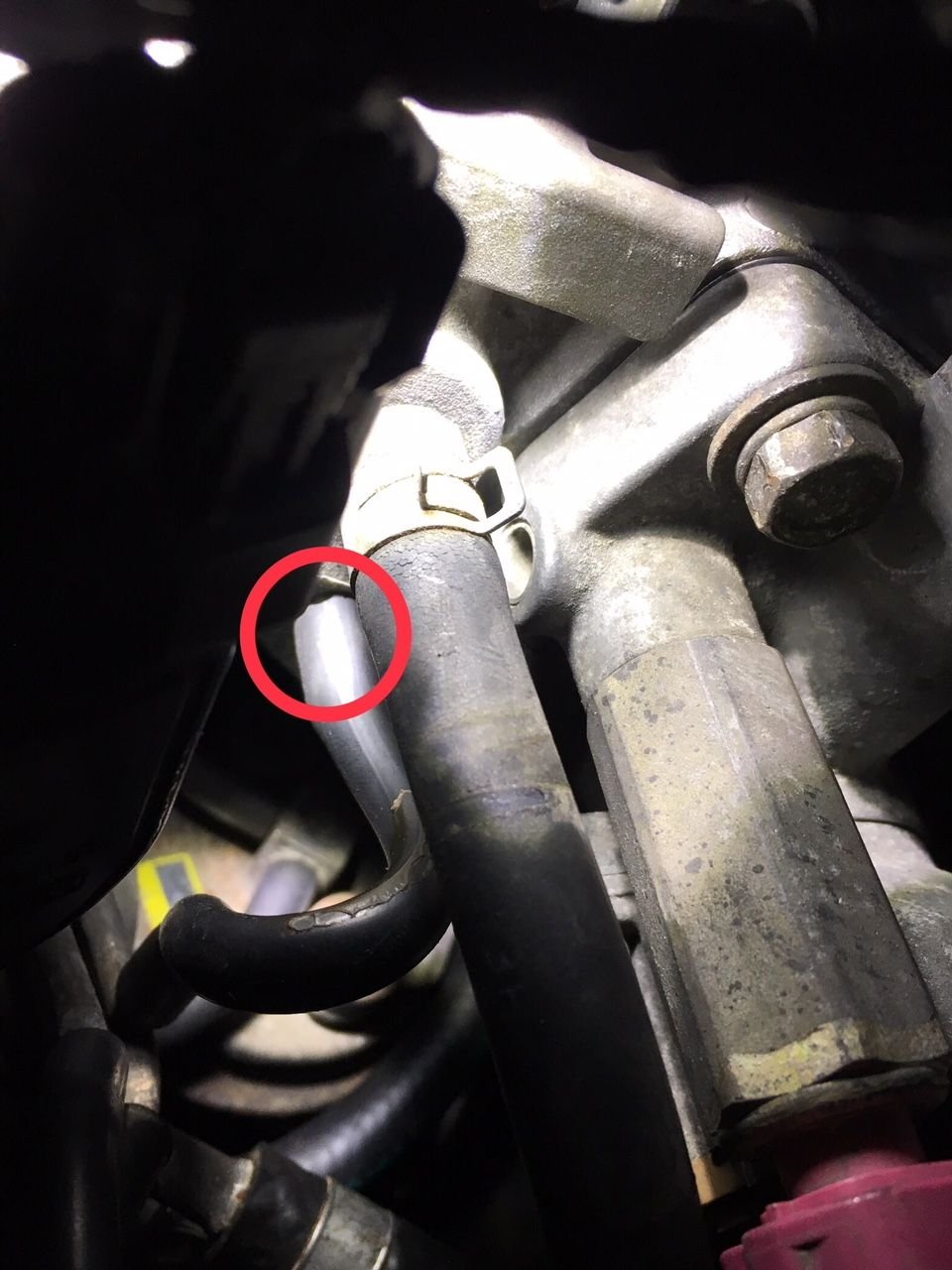

There's a thin hose coming out from under the throttle body. Not sure where it goes.

Two lines left of the IACV. Where does the thin hose go?

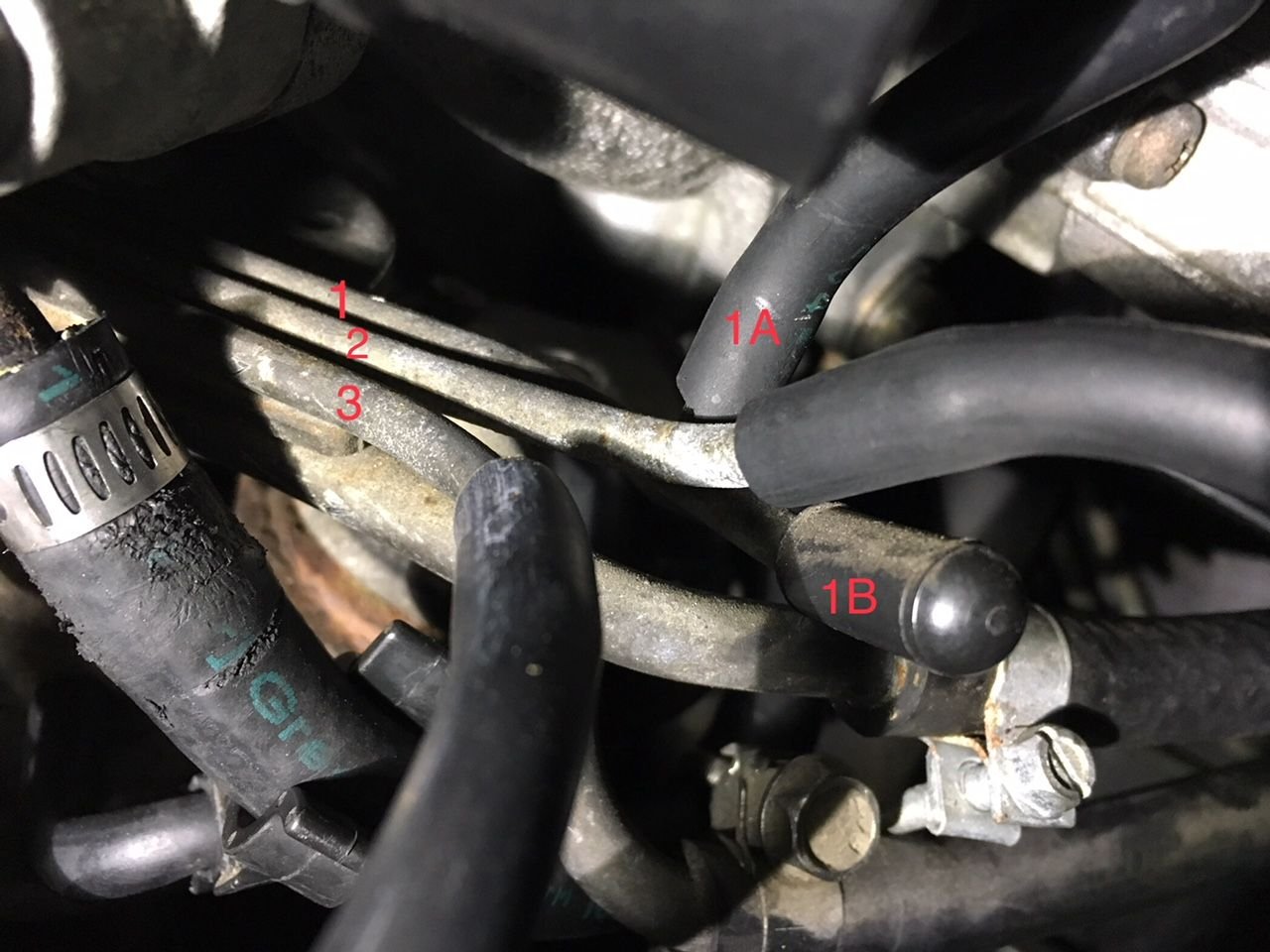

And there are 3 thin pipes underneath the throttle and IACV all have hoses going places. Where does 1A go? Where does 2 go? And where does 3 go?

Thanks!

Last edited by skywalker85; Sep 11, 2018 at 10:47 AM.

Sep 11, 2018 | 01:13 PM

skywalker85

Thread Starter

Member

Joined: Oct 2013

Posts: 113

Anybody?

Sep 11, 2018 | 01:55 PM

jholley

Senior Member

iTrader: (13)

Joined: May 2008

Posts: 1,319

From: TN

Using the search tools I found it connects to the EVAP canister on the firewall. Only the 1995 had that vacuum hose.

Quote:

Originally Posted by JSutter

On a 95 Fed spec, that nipple behind the throttle body would go to an evap canister located on the fire wall (below and left of brake booster). The 95 Fed spec was the only 4th gen to have that setup.
