EBAY reflector headlight Projector retrofit

I finally decided to swap in projectors into my EBAY reflector type headlights. I have had 6000k HIDs in them and they got the job done but they had some pretty bad hotspots and the cutoff wasn’t very good. As you can see from the picture below



I decided to go with E55 projectors and picked up a used set off EBAY for $81 shipped. I decided on the E55 because they are bi-xenon and would allow me to have dual high beams. Another popular option is the E46 projector. I also picked up some D2S bulbs and adaptor plugs to fit the projectors and my existing ballasts.



Before I started I pulled the headlights and made lighting marks on the inside of my garage door so I could match them once I got things swapped over which was the first picture.

To get the lights apart I baked them at about 185° for about 10-12 minutes. At first I had them at 225° but something was smoking so I dialed it back. I took everything that easily came off of the headlights but I didn’t strip them before baking. Also throw a towel down on the rack too to prevent the housing from melting on the metal rack.

I worked my way around with a flathead screwdriver and they came apart after about 3-5 minutes of working at it.

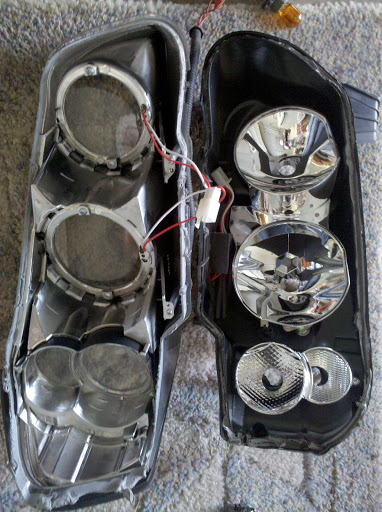

Then I took the reflectors off, as you can see the high and low beam are one piece so I had to cut them apart later. To get them out you need to loosen the two adjusting screws at the back until it comes free. Alternate screws as you go otherwise you will crack the housing like I did with mine.



Once you get this off you can get the projector in place and start aiming it. I used one of the original adjustment screws as a mounting point as well as drilling two other holes to run bolts through to use as mounting points. The original mounting screw is a #10-32 (get those) I accidentialy grabbed #10-24 nuts and bolts (pictured) which didn’t really matter it just meant that I had two different thread pitches. Get #10-32 hardware and you wont have to worry about keeping stuff separate. I also had to drill out the mounting holes on the projector a little bit so the bolts would fit I think I used a ¼” bit for that. Something just bigger than the hardware you are using will work. Below is all the hardware you should need for the install.

Feldman is offline   Reply With Quote
Old 03-22-2010, 01:16 AM   #2
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062

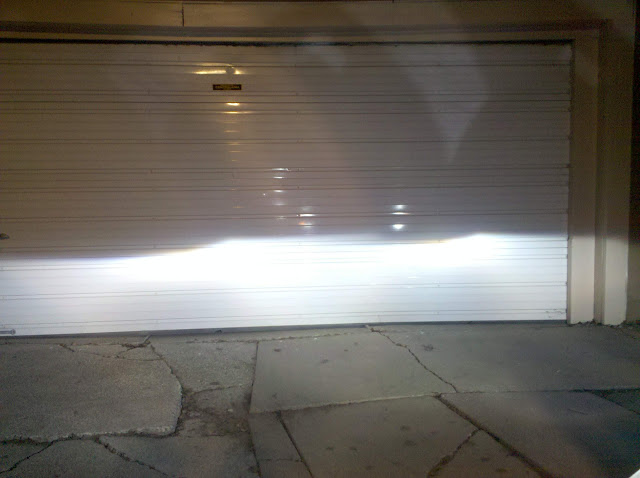

It took me forever to aim the light properly and figure out where to drill into the housing, if you can get an extra set of hands for this part it would save you tons of time.



Once I got them somewhat aimed in my garage I threw them onto my car without the front lenses and did a final adjustment using the mounting screws. Once I got everything where I wanted I used a little bit of locktite thread locker and tightened everything down on them to make sure they wouldn’t loosen up down the road. Make sure they are where you want them now because you wont be able to adjust them once you put the lens back on.


Mounting screws with locktite


I threw the housing and the lens back in the oven for a couple of minutes at 185° again to loosen up the sealant again and pushed everything back together and put them back on the car.


The last step was wiring everything up so when the highs went on the lows stayed on and the metal reflector moved out of the way leaving me with dual HID high beams. I did this by wiring the ground of the low of the low beam to the chassis and splicing the bi-xenon solenoid to the high beam.


Feel free to ask any questions, if i don't respond in this thread PM me because i probably forgot i wrote it and am not checking it

Last edited by Feldman; 03-22-2010 at 01:34 AM.
Feldman is offline   Reply With Quote
Old 03-22-2010, 04:16 AM   #3
Member

Join Date: Dec 2009
Location: PA
Posts: 100
wow great write up, looks good too
Nismo215 is offline   Reply With Quote
Old 03-22-2010, 05:29 AM   #4
Senior Member

Join Date: Sep 2009
Location: Baton Rouge, LA
Posts: 487
Excellent work! What about when you put it all back together? Did you modify the reflectors and put them back in?
avciugroar is offline   Reply With Quote
Old 03-22-2010, 07:21 AM   #5
Senior Member
iTrader: (2)

Join Date: Jul 2008
Location: western mass
Posts: 1,644
wow thats awesome! looks real good man nice work ive been thinkin about doing something similar i really want a set of those heads
bigpopaj369 is offline   Reply With Quote
Old 03-22-2010, 07:46 AM   #6
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: NH
Posts: 590
ya nice little writeup....some pics installed? did u use any shrouds?
arcueda is offline   Reply With Quote
Old 03-22-2010, 08:11 AM   #7
Senior Member
iTrader: (11)

Join Date: Jun 2006
Location: Cherry Hill, NJ / Hoboken, NJ
Posts: 1,329
Looks good

subscribing - curious to see what shrouds you'll use, with a large circular reflector. E46? Gatling?
nalc is offline   Reply With Quote
Old 03-22-2010, 11:13 AM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
There was already kind of a shroud built into the headlight that went around the old low beam reflector, I just used that. It wasn't exactly a perfect fit but it was a lot easier than hacking up the headlight more than i already did.
Feldman is offline   Reply With Quote
Old 03-22-2010, 11:27 AM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by avciugroar View Post
Excellent work! What about when you put it all back together? Did you modify the reflectors and put them back in?
I left the high beam reflector as is and replaced the low beam with a projector, I guess i could have color moded the projector but i decided to not mess with things more than i already had

here is what they look like on my car
Feldman is offline   Reply With Quote
Old 03-22-2010, 12:55 PM   #10
Senior Member
iTrader: (1)

Join Date: Mar 2007
Location: SE PA
Posts: 3,997
nice work, looks good and 100x better than the original.

Too bad you can't adjust the beams though, thats tough for any changes later on.
Prophecy99 is offline   Reply With Quote
Old 03-22-2010, 01:42 PM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by Prophecy99 View Post
nice work, looks good and 100x better than the original.

Too bad you can't adjust the beams though, thats tough for any changes later on.
Thanks!

Thats why getting them aimed properly is so important before you put the lenses back on. I can think of any reason they would need any further adjustment down the road. I'm sure i could have figured out a system to make them adjustable but the way i did it seemed more secure and less complicated
Feldman is offline   Reply With Quote
Old 03-22-2010, 01:49 PM   #12
Senior Member
iTrader: (6)

Join Date: May 2008
Posts: 1,992
Build some for me...?
MoncefA33 is offline   Reply With Quote
Old 03-22-2010, 02:27 PM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by MoncefA33 View Post
Build some for me...?
haha, you really want me to build a set for you don't you...

What is it worth to you?
Feldman is offline   Reply With Quote
Old 03-22-2010, 03:14 PM   #14
Senior Member
iTrader: (8)

Join Date: Nov 2009
Posts: 406
hey im down if you can build them for me as well. Mine are the ebay ones that come with the halos. How much can you replace my halos for (i want brighter bluer ones)? and make my headlights look like yours lol? yours are sexy!!! give me a price and will talk more! (mines an 01 SE black) THX!!!
bgawad is offline   Reply With Quote
Old 03-22-2010, 03:34 PM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by bgawad View Post
hey im down if you can build them for me as well. Mine are the ebay ones that come with the halos. How much can you replace my halos for (i want brighter bluer ones)? and make my headlights look like yours lol? yours are sexy!!! give me a price and will talk more! (mines an 01 SE black) THX!!!
mine have halos as well but started with reflectors instead of projectors.



I think it would be easier to retrofit the ones that start with projectors
http://cgi.ebay.com/ebaymotors/00-01...#ht_2112wt_941
is this what you have?

As far as bluer halos, if you can find them i can install them for you but i have no idea where to find them
Feldman is offline   Reply With Quote
Old 03-22-2010, 04:12 PM   #16
Senior Member
iTrader: (23)

Join Date: Oct 2008
Location: NJersey
Posts: 1,141
Looks good.

The ebay projectors are cool, but I like the larger low-beam reflector ring of yours as opposed to the smaller ebay projector rings.

Kudos
Nexus67 is offline   Reply With Quote
Old 03-22-2010, 04:32 PM   #17
Senior Member
iTrader: (6)

Join Date: May 2008
Posts: 1,992
Quote:
Originally Posted by Feldman View Post
haha, you really want me to build a set for you don't you...

What is it worth to you?
PM me a price and we can work from there
MoncefA33 is offline   Reply With Quote
Old 03-22-2010, 05:21 PM   #18
Senior Member
iTrader: (7)

Join Date: Jul 2003
Location: Honolulu, HI
Posts: 1,099
Great job! I would like to compare notes on your circuit design... mainly on how you apply power to work the solenoids for the high beams.
808MAX-SPEC is offline   Reply With Quote
Old 03-22-2010, 05:41 PM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by 808MAX-SPEC View Post
Great job! I would like to compare notes on your circuit design... mainly on how you apply power to work the solenoids for the high beams.
the solenoid for the high beam was the easy part, i just connected the two wires from it to the two wires of the high beam (before the ballast) It doesn't matter which wire goes where solenoids are non polar.

The tricky part was figuring out how to get the high and low beam to be on at the same time. It actually ended up being pretty simple but I had to think about it for a while. I don't have an easy way to diagram it out right now but the easiest way to explain is the ground of the low beam is grounded to the chassis instead of using the ground from the plug.
Feldman is offline   Reply With Quote
Old 03-22-2010, 05:42 PM   #20
Senior Member

Join Date: Jun 2005
Location: Toronto, ONT
Posts: 1,046
Man the mod looks good...I retrofit TSX projectors into my ebay projectors and they look and work great....

I bought custom CCFL angel eyes and swapped out the crappy, dim, and unreliable LED halos for CCFLs...took a while to get the fitment right but I think they look sick:


Last edited by M1RAG3; 03-22-2010 at 05:45 PM.
M1RAG3 is offline   Reply With Quote
Old 03-22-2010, 06:14 PM   #21
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by M1RAG3 View Post
Man the mod looks good...I retrofit TSX projectors into my ebay projectors and they look and work great....

I bought custom CCFL angel eyes and swapped out the crappy, dim, and unreliable LED halos for CCFLs...took a while to get the fitment right but I think they look sick:
Is there any extra room around the projectors? i thought i saw someone had swapped in e55 projectors into those housings I know they are 3" and i think the tsx projectors are 2.5" i was wondering if they fit without major modifications.

also where did you pick up your CCFL halos?
Feldman is offline   Reply With Quote
Old 03-23-2010, 01:48 AM   #22
Senior Member
iTrader: (7)

Join Date: Jul 2003
Location: Honolulu, HI
Posts: 1,099
Quote:
Originally Posted by Feldman View Post
Is there any extra room around the projectors? i thought i saw someone had swapped in e55 projectors into those housings I know they are 3" and i think the tsx projectors are 2.5" i was wondering if they fit without major modifications.
Got a ton of pics of my projector retrofit project. The diameter of the ebay projectors are 3" so the e55s should fit okay depending on placement in the frame. Mounting the TSX is a little bit more of a challenge but possible. I opted to go with the e46 singles.

http://www.cardomain.com/ride/504020/3
808MAX-SPEC is offline   Reply With Quote
Old 03-23-2010, 09:03 AM   #23
Senior Member
iTrader: (2)

Join Date: Jul 2008
Location: western mass
Posts: 1,644
IMO this should be a sticky so many people are going to buy these headlights and DIY the retro awesome work the final pics are sicky
bigpopaj369 is offline   Reply With Quote
Old 03-23-2010, 09:26 AM   #24
Senior Member

Join Date: Jun 2005
Location: Toronto, ONT
Posts: 1,046
The TSX projectors were not that difficult to fit...however there was a bit of open space (clearly because the TSX projectors are a bit smaller diameter than the original cheap a$$ projectors) but I spend HOURS fiddling modifiing the bracket which the projector shroud and base screw into and I was able to close up the space for the most part.

The CCFLs are from www.retro-solutions.com. Definitely check out the site of you are a DIY-er its a great site with great products
M1RAG3 is offline   Reply With Quote
Old 03-23-2010, 03:55 PM   #25
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by bigpopaj369 View Post
IMO this should be a sticky so many people are going to buy these headlights and DIY the retro awesome work the final pics are sicky
Thanks everybody for the input, there is definitely a lot of good info on this site pertaining to this subject and it helped me a ton with my retrofit.

I think MoncefA33 wants me to build him a set, if he decides to go ahead with that i will do a writeup on how to do it with the ebay projector headlights which i think will be much easier than the reflector headlights I used
Feldman is offline   Reply With Quote
Old 03-24-2010, 07:16 PM   #26
Member
iTrader: (1)

Join Date: Mar 2010
Location: Ashland, MA
Posts: 137
That looks
xspanishxkidx is offline   Reply With Quote
Old 03-24-2010, 07:17 PM   #27
Member
iTrader: (1)

Join Date: Mar 2010
Location: Ashland, MA
Posts: 137
that looks very good did it take a long time to do this? I would really like to do this on my car I have a HID Bi-Xenon kit installed in my 2000 nissan maxima and I would like to add in some projectors. What do you recommend for me to do?
xspanishxkidx is offline   Reply With Quote
Old 03-24-2010, 11:00 PM   #28
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by xspanishxkidx View Post
that looks very good did it take a long time to do this? I would really like to do this on my car I have a HID Bi-Xenon kit installed in my 2000 nissan maxima and I would like to add in some projectors. What do you recommend for me to do?
In short you need to purchase a set of e55 projectors or a similar 3" bi-xenon projector. pick up a set of ebay projectors and bake them into halves. replace the ebay projector with the e55 projector put the two halves back together and wire it up. You'll also need the appropriate bulbs and harnesses depending on what projectors you go with (d2s or d2c for the e55)
Feldman is offline   Reply With Quote
Old 03-25-2010, 07:57 PM   #29
Senior Member

Join Date: Dec 2009
Location: Torrance CA
Posts: 141
Any final pics of what the lights look like??
5point5gen is offline   Reply With Quote
Old 03-25-2010, 08:18 PM   #30
RR5
Senior Member
iTrader: (6)

Join Date: Sep 2005
Location: Bellevue, WA
Posts: 1,722
Looks professional OE style, would you get similar results using the EBAY projector headlamps and replace those halogen projectors with probably the same bi-xenon projectors?
RR5 is offline   Reply With Quote
Old 03-25-2010, 09:36 PM   #31
Turbo'd Saab
iTrader: (17)

DrunkieTheBear's Avatar

Join Date: Feb 2007
Location: Albany, NY
Posts: 35,197
Yes you should get the same result with a projector retro on the ebay projector headlights
DrunkieTheBear is offline   Reply With Quote
Old 03-25-2010, 11:37 PM   #32
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by RR5 View Post
Looks professional OE style, would you get similar results using the EBAY projector headlamps and replace those halogen projectors with probably the same bi-xenon projectors?
I think it would look better than mine to be honest. The ebay projectors are 3" and the e55 projector is 3" so it should look exactly like the ebay projectors but with good output and bi-xenon capability
Feldman is offline   Reply With Quote
Old 03-25-2010, 11:51 PM   #33
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Salt Lake City, UT
Posts: 1,062
Quote:
Originally Posted by 5point5gen View Post
Any final pics of what the lights look like??
post #9
Feldman is offline   Reply With Quote
Old 03-31-2010, 11:26 PM   #34
Banned
iTrader: (8)

Join Date: Aug 2009
Location: Long Beach, CA/Las Vegas, NV/Oklahoma City, OK
Posts: 2,727
sweet im def subscribing & goin to retro fit mine, that is when i buy some they look siiiick especially w/ upgrade halo rings
J2FRESH is offline   Reply With Quote
Old 09-21-2010, 01:51 AM   #35
Banned
iTrader: (8)

Join Date: Aug 2009
Location: Long Beach, CA/Las Vegas, NV/Oklahoma City, OK
Posts: 2,727
yea i kno months late but i forgot to add my pics of my retrofit

DAYTIME

NIGHT TIME
J2FRESH is offline   Reply With Quote
Old 09-21-2010, 01:53 AM   #36
Senior Member

Join Date: Sep 2009
Location: Baton Rouge, LA
Posts: 487
I just cant get over the fact that the lows are smaller than the highs... I'm so used to seeing vehicles that have smaller high beam areas than low beam. Guess it just looks weird to see something non-stock on a maxima
avciugroar is offline   Reply With Quote
Old 09-21-2010, 10:51 AM   #37
Senior Member
iTrader: (1)

Join Date: Mar 2007
Location: SE PA
Posts: 3,997
Quote:
Originally Posted by avciugroar View Post
I just cant get over the fact that the lows are smaller than the highs... I'm so used to seeing vehicles that have smaller high beam areas than low beam.....
yeah i agree its not the best, but still props for great work something outa nothing
Prophecy99 is offline   Reply With Quote
Old 11-17-2010, 01:18 PM   #38
Member

Join Date: Apr 2009
Location: Lafayette/Jeanerette, Louisiana
Posts: 245
Sorry for the bump, but would anyone know if the HID projectors are any good? Are they comparable to the result of this retrofit? I am wanting to replace my stock, fogged-up headlights, maybe with the HID projectors. I was thinking if the HID kit in the HID projectors aren't any good, maybe I could swap out the ballasts for my stock ballasts. Yes? No? What do you guys think I should do?

Shout out to avciugroar XD
AUTOmobilePHILE is offline   Reply With Quote
Old 11-17-2010, 02:47 PM   #39
Senior Member

Join Date: Sep 2009
Location: Baton Rouge, LA
Posts: 487
huh? heard my name!
avciugroar is offline   Reply With Quote
Old 11-17-2010, 09:30 PM   #40
Member

Join Date: Jan 2010
Location: El Monte, CA
Posts: 201
Which HID Projectors are you talking about?
KBCobra is offline   Reply With Quote
