acastill0

I have a 2012 Max thats pre-wired for fog lights but don't have the column switch for them. How can I install both the switch and the lights?

MaximaDrvr

iTrader: (1)

If it doesn't have the column switch, why do you say that it is prewired for fogs?

acastill0

My fuse box and the wires under the car.

Liquid_pjear

iTrader: (2)

Courtesy parts sells an OEM kit. It comes with factory fogs and the new stalk. It is an incredibly easy install. It's about $200.

Edit: here is the link for the kit if you have auto headlights:
https://www.courtesyparts.com/exteri...01?parent=2721

Diehard

I once wired up fogs on a 09 civic was prewired for fogs. I ran the switch wire to head light fuse to trigger turn on. I then ran the remote turn on for the fogs to the fog lights fuse which was in my fuse panel. I'm pretty sure it's the same concept I'm not really sure how it is for a maxima.

There's more than one ways of doing it you just got to do some research.

14blackbeauty

It's easy I did it on ny 05 Frontier, It was pre wired and like it was stated there is a kit

Bigiron383

Yes, this is the way to go. Very easy to do.and you're correct, it's "pre wired" ready to go.

coco12

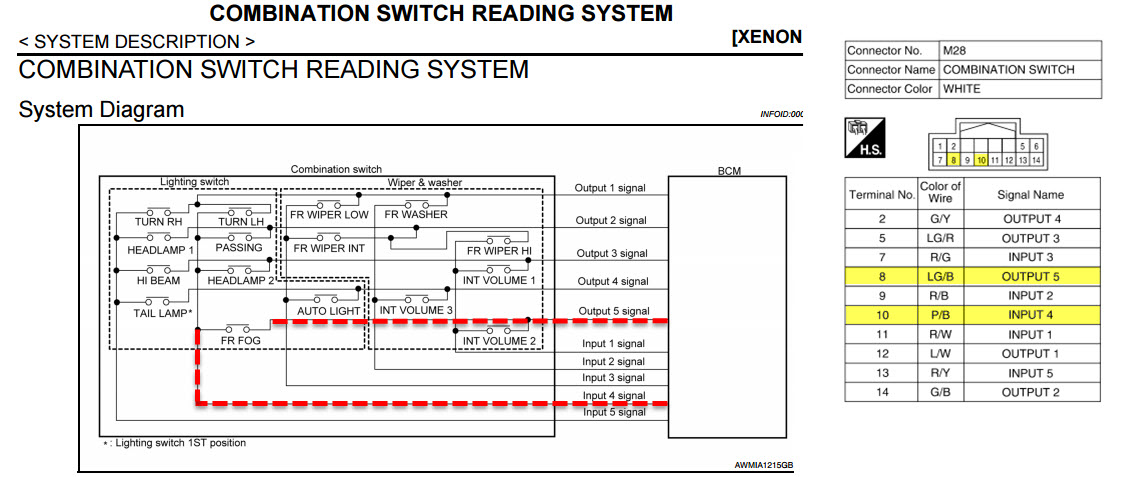

Here is wire schematic.
