Angle Wrench - For Angular Tightening Method
What is the FSM talking about in the Mechanical section, this angle wrench? I've never seen one of these for sale before. Used I think for the cylinder head bolts.
It says "some bolts need to use the angular tightening method as opposed to torque wrench method".
It says "some bolts need to use the angular tightening method as opposed to torque wrench method".
12-02-2008, 07:14 AM
#2
http://maxima.theowensfamily.com/tsb/NTB90-090.pdf
The only 2 bolts nissan "requires" angular tightening are cylinder head bolts, and connection rod cap nuts.
Updated torque/angular wrench:
http://buy1.snapon.com/catalog/item....store&tool=all
The only 2 bolts nissan "requires" angular tightening are cylinder head bolts, and connection rod cap nuts.
Updated torque/angular wrench:
http://buy1.snapon.com/catalog/item....store&tool=all
12-15-2008, 11:00 PM
#3
Banned
Thread Starter
Join Date: Apr 2008
Location: Ontario, Canada
Posts: 1,159
Greeny I picked up the old fashioned kind...the exact one in the Tech Bulletin PDF you posted (Snap On one on right)
What's the point of the arm thing. How do I use it? Didn't come with a manual.
What's the point of the arm thing. How do I use it? Didn't come with a manual.
12-16-2008, 03:04 AM
#4
12-16-2008, 03:19 AM
#5

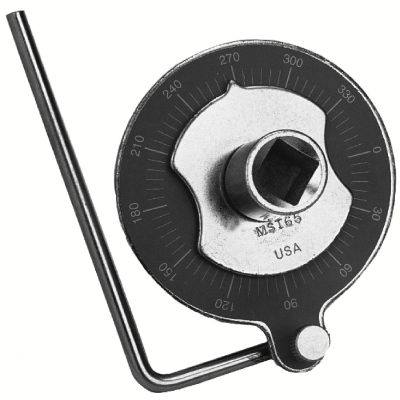

TORQUE ANGLE METER
* Measures angle of rotation after pre-torque load in "torque-angle" applications
* Includes 1/2" male and female square drives for both sockets and wrenches
* Measures in 5-degree increments on large easy-to-read dial
Those bolts are done in two stages; a pre load and a final torque value which is done by turning the bold a specific degree. Some head bolts are done in this manner so it is not an old or weird way of doing it. I also beleive the bolts are to be oiled prior in installing, check the manual.
1- pre load the bolt as specd in the manual.
2- put your wrench on the bolt.
3- use a protractor and mark 32' on the case from the wrench.
4- turn your wrench to the mark.
5- done!
One word of warning, when angle tightining do it in one fluid motion. You only get one shot with these bolts, it's not really that big of a deal to do it right.
1- pre load the bolt as specd in the manual.
2- put your wrench on the bolt.
3- use a protractor and mark 32' on the case from the wrench.
4- turn your wrench to the mark.
5- done!
One word of warning, when angle tightining do it in one fluid motion. You only get one shot with these bolts, it's not really that big of a deal to do it right.
http://www.advrider.com/forums/showp...2&postcount=12
12-16-2008, 07:00 PM
#6
Banned
Thread Starter
Join Date: Apr 2008
Location: Ontario, Canada
Posts: 1,159
Thanks guys - and the pics are great. I get it now - you just stick the arm thing against something, and the dial rotates. At first I thought you had to hold it while using the wrench with the other hand - then I figured this would be impossible to do it in one motion.
