Hello I'm new here to Nissan forums 2003 Nissan maxima windows will not work ??
08-05-2014, 10:39 PM
#1
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
Hello I'm new here to Nissan forums 2003 Nissan maxima windows will not work ??
Need help bad Can anybody tell digram for the driver side window wires are loose not one window will work because of this
08-06-2014, 02:43 PM
#4
here is a link to the service manual section for power windows. Start reading on page 251.
http://boredmder.com/FSMs/Nissan/Maxima/2003/EL.pdf
http://boredmder.com/FSMs/Nissan/Maxima/2003/EL.pdf
08-06-2014, 05:35 PM
#5
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
Window want work
I have Check theFuses, relays, all are good my problem is all the wires that control the driver side window switch the wires are all disconnected and I need to know what order they go in the image blow should give a clue thanks
2003 Nissan maxima se
2003 Nissan maxima se
08-07-2014, 03:39 PM
#7
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
2003 Nissan maxima windows not working

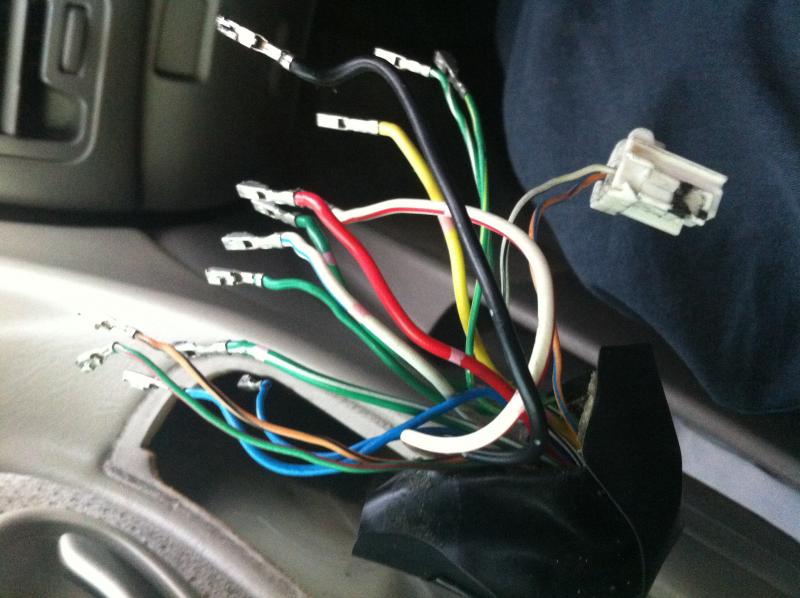

Thanks my problem is my wires are disconnected from where the window switch is connected would any one able to post a picture of their 2003 maxima SE?? so I could match my wires up right I have one window that want Down but want go back up lock also not working from driver side or passenger side
Below are my wires color's
Below are my wires color's
08-07-2014, 09:42 PM
#8
The master window switch in the driver's door has to work before the other 3 doors will work because some of the wires go to the other doors.
Code:
Sort the wires to make sure that you have a match to this chart.
Not all the connector openings have wires in them.
Note that you will have 2 blue and 2 green wires. You will have to trace
these wires.
wire
# color
---- -----
1 yellow
2 white/black stripe
3 red
4 orange/black stripe
5 green
6 orange/blue stripe
7 green/white stripe
8 thin blue (to window motor)
9 green/white stripe
10 white/blue stripe
11 green (to window motor)
12
13 green/yellow stripe
14 thick blue
15 green/red stripe
16
17 black
18
19 white/red stripe
This is the view of the wires in the connector when it is plugged into
the window switch.
╔═══╦═══╦═══╦═══╦═══════╦═══╦═══╦═══╗
║ 1 ║ 2 ║ 3 ║ 4 ║ lock ║ 5 ║ 6 ║ 7 ║ ╔═╗
╠═══╬═══╬═══╬═══╬═══╦═══╬═══╬═══╬═══╣ ╔═══╦╩═╩╦═══╗
║ 8 ║ 9 ║ 10║ 11║ 12║ 13║ 14║ 15║ 16║ ║ 17║ 18║ 19║
╚═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╝ ╚═══╩═══╩═══╝
connector D10 connector D13
08-08-2014, 11:26 AM
#9
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
2003 Nissan maxima windows not working
2003 Nissan maxima windows not working
Thanks my problem is my wires are disconnected from where the window switch is connected would any one able to post a picture of their 2003 maxima SE?? so I could match my wires up right I have one window that want Down but want go back up lock also not working from driver side or passenger side
Below are my wires color's
Their are
1.big green
2.green/white big
3.green small
4.green/white small
5.green/yellow
6.blue big
7.blue small
8.blue/white
9.blue/orange
10. Black/orange
11.black/white
12.red
13.yellow
14.red/ green
15.black
16.red/ white
I need to know what order they go in I thank the big black & big red/white goes to lock& unlock.
Thanks my problem is my wires are disconnected from where the window switch is connected would any one able to post a picture of their 2003 maxima SE?? so I could match my wires up right I have one window that want Down but want go back up lock also not working from driver side or passenger side
Below are my wires color's
Their are
1.big green
2.green/white big
3.green small
4.green/white small
5.green/yellow
6.blue big
7.blue small
8.blue/white
9.blue/orange
10. Black/orange
11.black/white
12.red
13.yellow
14.red/ green
15.black
16.red/ white
I need to know what order they go in I thank the big black & big red/white goes to lock& unlock.
08-11-2014, 01:57 PM
#10
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
2003 Nissan maxima windows not working
DennisMik you have all my wires would someone know what order they go in
# color
---- -----
1 yellow
2 white/black
3 red
4 orange/black stripe
5 green
6 orange/blue stripe
7 green/white stripe
8 thin blue (to window motor)
9 green/white stripe
10 white/blue stripe
11 green (to window motor)
12
13 green/yellow stripe
14 thick blue
15 green/red stripe
16
17 black
18
19 white/red stripe
This is the view of the wires in the connector when it is plugged into
the window switch.
╔═══╦═══╦═══╦═══╦═══════╦═══╦═══╦═══╗
║ 1 ║ 2 ║ 3 ║ 4 ║ lock ║ 5 ║ 6 ║ 7 ║ ╔═╗
╠═══╬═══╬═══╬═══╬═══╦═══╬═══╬═══╬═══╣ ╔═══╦╩═╩╦═══╗
║ 8 ║ 9 ║ 10║ 11║ 12║ 13║ 14║ 15║ 16║ ║ 17║ 18║ 19║
╚═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╝ ╚═══╩═══╩═══╝
connector D10 connector D13
# color
---- -----
1 yellow
2 white/black
3 red
4 orange/black stripe
5 green
6 orange/blue stripe
7 green/white stripe
8 thin blue (to window motor)
9 green/white stripe
10 white/blue stripe
11 green (to window motor)
12
13 green/yellow stripe
14 thick blue
15 green/red stripe
16
17 black
18
19 white/red stripe
This is the view of the wires in the connector when it is plugged into
the window switch.
╔═══╦═══╦═══╦═══╦═══════╦═══╦═══╦═══╗
║ 1 ║ 2 ║ 3 ║ 4 ║ lock ║ 5 ║ 6 ║ 7 ║ ╔═╗
╠═══╬═══╬═══╬═══╬═══╦═══╬═══╬═══╬═══╣ ╔═══╦╩═╩╦═══╗
║ 8 ║ 9 ║ 10║ 11║ 12║ 13║ 14║ 15║ 16║ ║ 17║ 18║ 19║
╚═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╝ ╚═══╩═══╩═══╝
connector D10 connector D13
Last edited by Maxima se 5184; 08-11-2014 at 02:02 PM.
08-22-2014, 10:40 PM
#11
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
This are the wires order for a 2003 nissan Maxima window switch
2003 nissan maxima window wires for driver side power window switch
We're are the one's for the window's.
1.yellow
2.black/white
3.red
4.black/orange
5.big green with pink dot
6.orange/blue
7.big white/green
8.big blue
9.small blue
10.small green white
11.blue/white
12.small green
13
14.green/yellow
15.small blue
16.red/green
17.
lock are
18.black
19.
20.red/white
╔═══╦═══╦═══╦═══╦═══════╦═══╦═══╦═══╗
║ 1 ║ 2 ║ 3 ║ 4 ║ lock ║ 5 ║ 6 ║ 7 ║ ╔═╗
╠═══╬═══╬═══╬═══╬═══╦═══╬═══╬═══╬═══╣ ╔═══╦╩═╩╦═══╗
║ 8 ║ 9 ║ 10║ 11║ 12║ 13║ 14║ 15║ 16║
connector D10
║ 17║ 18║ 19║
╚═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╝ ╚═══╩═══╩═══╝
connector D13
We're are the one's for the window's.
1.yellow
2.black/white
3.red
4.black/orange
5.big green with pink dot
6.orange/blue
7.big white/green
8.big blue
9.small blue
10.small green white
11.blue/white
12.small green
13
14.green/yellow
15.small blue
16.red/green
17.
lock are
18.black
19.
20.red/white
╔═══╦═══╦═══╦═══╦═══════╦═══╦═══╦═══╗
║ 1 ║ 2 ║ 3 ║ 4 ║ lock ║ 5 ║ 6 ║ 7 ║ ╔═╗
╠═══╬═══╬═══╬═══╬═══╦═══╬═══╬═══╬═══╣ ╔═══╦╩═╩╦═══╗
║ 8 ║ 9 ║ 10║ 11║ 12║ 13║ 14║ 15║ 16║
connector D10
║ 17║ 18║ 19║
╚═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╩═══╝ ╚═══╩═══╩═══╝
connector D13
08-23-2014, 09:56 PM
#12
The row of wires that are facing the camera (pin numbers 1 through 7) are in the correct order.
I can't really tell about the back row but I think that the blue wire in pin # 8 which is behind the yellow wire at the top of your photo may be the wrong blue wire.
Read my earlier post (# 8). I gave you the order.
But here is another diagram that is matched up to your photograph
I can't really tell about the back row but I think that the blue wire in pin # 8 which is behind the yellow wire at the top of your photo may be the wrong blue wire.
Read my earlier post (# 8). I gave you the order.
But here is another diagram that is matched up to your photograph
Code:
╔═══╦═══╗
thin blue (to window motor) ║ 8 ║ 1 ║ yellow
╠═══╬═══╣
green/white stripe ║ 9 ║ 2 ║ white/black stripe
╠═══╬═══╣
white/blue stripe ║ 10║ 3 ║ red
╠═══╬═══╣
green (to window motor) ║ 11║ 4 ║ orange/black stripe
╠═══╬═══╣
║ 12║ L ║
╠═══╣ O ║
green/yellow stripe ║ 13║ K ║
╠═══╬═══╣
thick blue ║ 14║ 5 ║ green
╠═══╬═══╣
green/red stripe ║ 15║ 6 ║ orange/blue stripe
╠═══╬═══╣
║ 16║ 7 ║ green/white stripe
╚═══╩═══╝
Last edited by DennisMik; 08-23-2014 at 10:26 PM.
08-26-2014, 04:02 PM
#13
Newbie - Just Registered
Thread Starter
Join Date: Oct 2013
Posts: 9
2003 maxima window not working
This is the back roll picture I put my wires back together by lock at an 2003 maxima my friend just got but my window are still not working now it may be my driver side window switch???. On the other hand my lock are working now
08-26-2014, 06:54 PM
#14
Senior Member
Join Date: Dec 2008
Location: NYC
Posts: 1,779
Thin blue and thick blue wires look to be in wrong spots.
I cannot see the bottom row. Double check your wiring!
08-26-2014, 10:07 PM
#15
It looks to me like you have the 2 blue wires switched.
It is possible that the switch is bad.
1 - you may have blown it up with the wires reversed.
2 - The switch may have been bad, which is why all the wires were pulled out.
It is possible that the switch is bad.
1 - you may have blown it up with the wires reversed.
2 - The switch may have been bad, which is why all the wires were pulled out.
