Old 06-08-2018, 05:47 AM
  #321
Senior Member
iTrader: (13)

Join Date: Oct 2010
Location: Ont. Canada
Posts: 1,683
Any new updates? Still hoping you have everything completed this summer. Looking forward to some vids of the worlds first stanzima
ac max 92 is offline
Old 06-14-2018, 11:25 PM
  #322
Senior Member
iTrader: (3)

Join Date: Oct 2007
Location: Houston, Tx
Posts: 8,917
This is Wild!
CMax03 is offline
Old 06-17-2018, 12:29 AM
  #323
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
whatap bros. sorry i wasnt around the car for a while.

i was having some weird voltage issues and found some settings that had apparently defaulted to nothing selected at all. for some reason im not fully sure of the voltage issues went away after i rerouted and reconnected the grounds for my gauges which are in a completely separate circuit than the ecu but i guess there must be something thats shared in there im not remembering idk or care cause now that those things are fixed the car is running noticeably better.

https://www.youtube.com/watch?v=QLF4...ature=youtu.be


so as soon as the registration suspension is up i can drive the car. so besides finishing the catch can which i will probably do tomorrow, i only have one more thing to do....


while i was in the car today i heard some strange noises coming from my headliner..... pretty much immediately i realized something was up there and was alive. i wasnt really sure what it was right away so i figured maybe it was just a bug or something that got stuck because thats kind of how it sounded. once it got dark out tho i could very clearly hear what it was.

theres a ****ing entire litter of mice in my headliner. i for sure heard AT LEAST 3 different mice running around up there. obviously im heated lol i get one thing fixed and some bull**** happens and sets me back again. so im going to figure out how to get them out of there (and then directly into my homebrew moustrap that will eradicate them with extreme prejudice) ill be pulling my headliner down to clean all of the poop and dirt and **** and probably completely redoing my headliner. i had absolutely no intentions of pulling my headliner down at all ever but its gotta happen now so thats probably gonna be the next update after the catch can.
Nate Boslet is offline
Old 06-18-2018, 05:12 PM
  #324
Senior Member
iTrader: (13)

Join Date: Oct 2010
Location: Ont. Canada
Posts: 1,683
Well on a positive note at least they didn't feast on your electrical causing you to chase electrical gremlins lol
ac max 92 is offline
Old 06-26-2018, 11:55 AM
  #325
Senior Member
iTrader: (3)

Join Date: Oct 2007
Location: Houston, Tx
Posts: 8,917
This person knows how to use rivnuts! You must be an A&P?
CMax03 is offline
Old 06-27-2018, 03:43 AM
  #326
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
Originally Posted by CMax03 View Post
This person knows how to use rivnuts! You must be an A&P?
lmao no unfortunately i only work on vehicles whos total value could be exchanged for some small livestock. im a fabricator at a speed shop, when we are busy i make good money (in relation to the current economy anyway) but there can be huge stretches of time where we arent busy so im usually pretty broke. i post some of the stuff i do there on my instagram @bosletnate i mostly work on hondas there because thats where the market is where im at but theres some other cool stuff there.


big update coming soon. dont think me not posting means im not working on the stanzima
Nate Boslet is offline
Old 07-01-2018, 06:25 PM
  #327
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
THE MUFFLER

as previously stated the exhaust i bought for 100 dollars that i had to chop up and reweld together sounded like total *** so here is the process i went through to rebuild a skunk2 muffler i got from my job that cracked in half after it apparently had all of the packing blown out of it.






this is the original tip from the cheepo exhaust.



this muffler was apparently a 3 inch inlet which means i need to reduce it. this is where the tip comes in.





3 to 2.5



i did some research on packing and found that apparently for longevity ceramic packing is much more resilient than fiberglass or stainless wool. i got some generic ceramic insulating blanket for like 10 bucks and did a little test to see what the real difference would be.

https://www.youtube.com/watch?v=kG3j...ature=youtu.be

i think its pretty clear the ceramic is a lot more resilient than the stainless steel wool.












here is the comparison between the old muffler, no muffler and new muffler.

https://www.youtube.com/watch?v=70ak...ature=youtu.be



the rasp is probably from the muffler being a little too big and not having a decent resonator in the exhaust. it was still there even with no muffler so im hoping when i make the headers it will go away or lessen. im not really worried about it tho for now im happy with it. it doesnt sound anywhere near as tinney or rattley like it did before. i still have to hang the muffler as you may have noticed in the video but i had some other stuff going on at the shop and didnt get a chance to get to it but once i do i think ill take the car out for a spin and see what works and what doesnt lol
Nate Boslet is offline
Old 07-05-2018, 04:19 PM
  #328
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
did the hangers last night, the muffler is where its gonna stay.







next thing i gotta do is mount the catch can and then reregister the car and find some extra super ultra cheap insurance so i can drive it. idk when ill have the money to get the turbo stuff done on the stanza if i had a more stable source of income i would probably just bang it out in a few weeks but not being able to afford stuff when i need it really sets me back. in the mean time im gonna work on getting my z to the garage and start getting it ready for the VQ swap. ill have more updates on the stanza soon dont worry. probably a burnout video soon.

Nate Boslet is offline
Old 07-05-2018, 11:52 PM
  #329
Senior Member
iTrader: (2)

Join Date: Apr 2004
Location: Plano, TX
Posts: 10,327
Great work! It looks like you are just about ready to terrorize the local villagers.
DennisMik is offline
Old 07-17-2018, 08:35 AM
  #330
Senior Member
iTrader: (13)

Join Date: Oct 2010
Location: Ont. Canada
Posts: 1,683
Where's the the burnout vid of the worlds 1st Stanzima ready to terrorize the local villagers? Any new progress? The anticipation lol. I haven't been on here as much since my max is gone but when I am I always check for any new updates with the Stanzima. Keep up the great work Nate. Hope the z31 is going good too. Also if your ever interested I have a bnib cat for the turbo z31.
ac max 92 is offline
Old 07-26-2018, 05:01 PM
  #331
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
i promise the next video i post will be me driving/roasting tires. i have been really struggling to find work lately so the car is even further in the back seat, more like stuffed into the trunk at this point. i havent even been up to the garage since the last post but im planning on going up this weekend to see if i can get the fans to work and probably just strap the catch can down for now.
Nate Boslet is offline
Old 08-05-2018, 03:57 PM
  #332
Member
Thread Starter

Join Date: Oct 2016
Posts: 250

im a man of my word. there she is in all her half assed, incredibly poorly tuned, stumbling, bumbling glory. i didnt worry about the fans, i doubt the car even got up to 100 degrees in the 2 minutes it was running. i know how to fix them, ill probably go back up this week to work on that. i definitely need to get it up to temp so i can get my fuel dialed in, the reason its running so bad is because its still trying to run in the warmup enrichment, without having the car up to temp i cant accurately setup the base map so whatever changes i make just slowly get screwed up when as the car warms up (it goes lean as it warms because it needs more fuel to run normally when its cold) this is why when i attempted to floor it the car just sort of coughed and slowly attempted to accelerate slightly. once i get the fans working right ill get the car up to temp and get the fuel dialed in so i can annihilate those minuscule tires im running.

everything went well tho, i didnt hear any crazy noises or knocks, the trans went through all the gears fine. there are some things i need to address like the shifter still needs bushings but i could definitely drive the car the way it is. for the catch can all i did was zip tie it to a section of the harness to keep it from moving. i lost the little cover for my distribution block and im worried about it shorting out so i might get another one of those but for the most part the car just needs to be registered again and i should also get some new gas because im sure whats in it is garbage.










Last edited by Nate Boslet; 08-05-2018 at 04:04 PM.
Nate Boslet is offline
Old 08-06-2018, 12:11 AM
  #333
Senior Member
iTrader: (2)

Join Date: Apr 2004
Location: Plano, TX
Posts: 10,327
All Right!!!
DennisMik is offline
Old 09-01-2018, 09:47 PM
  #334
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
FANS ARE WORKING.


there were 2 things keeping the fans from working. the first problem was the relay i had wired up to be switched by the MS1 wasnt turning the fans on, idk how i ever got the fans to turn on using that relay but whatever it was it was incorrect so i just switched the connector from that relay to the correct relay to have the fans turn on. the fans in the stanza are 2 speed, high and low, to accomplish this the car has 2 relays (three fan relays total but idk what the 3rd one is for, maybe ac or like some sort of safety relay idk) but if you turn on either one of the first two relays its on low and then both relays on at once gives you high speed. since i only have one output to switch the fans on i can only have the fans come on at low or high speed, for now they are on low because idk if high speed will be necessary yet.


the second reason the fans werent working is way more embarrassing and stupid but im gonna tell everyone anyway because it might prevent someone else from making a similar mistake, or maybe someone will find it funny.... the MS1 has 4 spare pins that you can use as outputs to control various things like boost control, nos injection, meth, launch control, 2 step etc. or in my case fan control. what i was not aware of is that in order to use these outputs you have to actually modify the hardware inside of the MS1. without doing this modification the wire i had run to my spare pin was connected to absolutely nothing. so ive been trying to figure out why im not getting signal from a wire that may as well be laying on the floor lol armed with the new knowledge of what i had to do to complete the mod i banged it out, it was actually really easy.










idk if anyone will really understand what this means but i figure its neat to look at. basically signal comes from an output pin and the transistor opens a gate i think maybe which completes a circuit between a ground and the output which closes the relay, im assuming the diode is for protection but im just learning so im not super sure about any of this lol anyway it works. i got the car warmed up a bit, had the fans kick on and off at certain times. they kick on slightly earlier than what they are set at which i found strange, i guess they account for temp spiking or heat soak or whatever in the code instead of trusting you to use the right temps which is nice. i have no idea what operating temperature is supposed to be, once i find that out ill set the fans at that and probably take the car for an extra long spin and start getting it better street tuned and fix the warmup enrichment and be well on my way to tire roasting. just from dialing the fuel in when it was around 160 degrees the car runs a million times better and its still running on that year old gas so once i get some decent gas in and get her nice and hot it should get wild quick. i really gotta build some turbo headers tho cause this car sounds like a dying buffalo in the revs.

Last edited by Nate Boslet; 09-02-2018 at 01:21 PM.
Nate Boslet is offline
Old 09-07-2018, 03:47 PM
  #335
Senior Member
iTrader: (2)

Join Date: Apr 2004
Location: Plano, TX
Posts: 10,327
Nissan uses 3 relays for the cooling fans on the Maxima. Fan Relay 1 turns both fans on at low speed. Fan Relay 2 turns fan #1 on at high speed and Fan Relay 3 turns fan #2 on at high speed. The reason for using a separate relay for each motor's high speed is unknown to me. This design would allow each fan motor to be operated at high speed independently from the other one, but the fans are connected to always operate as a pair. There is one pin on the ECU that says run the fans at low speed and one pin that says run the fans at high speed.

I will assume that the Stanza is set up the same way since it also uses 3 relays. If the car has air conditioning, it is necessary to have the cooling fans running when the a/c compressor is running.
DennisMik is offline
Old 10-30-2018, 07:22 PM
  #336
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
decided to redo the fuel rails again and install my bosch 550s i originally got for my Z31 in the stanza. i feel like the stanza has been down a cylinder because the one injector wasnt working. i know the 550s are good and i wasnt really happy with the way the injectors were done so im gonna change it lol i just got the stock today so new pics on that and hopefully burnout vids once the car is running right.
Nate Boslet is offline
Old 11-02-2018, 07:22 AM
  #337
Senior Member
iTrader: (3)

Join Date: Oct 2007
Location: Houston, Tx
Posts: 8,917
The exhaust isn't all that pretty sounding...deep but I think a 11" x 5" oval MF muffler would be the bomb with a large resonator...Pretty impressive stuffing that VG in that smaller chassis.
CMax03 is offline
Old 11-03-2018, 09:14 AM
  #338
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
Originally Posted by CMax03 View Post
The exhaust isn't all that pretty sounding...deep but I think a 11" x 5" oval MF muffler would be the bomb with a large resonator...Pretty impressive stuffing that VG in that smaller chassis.
i think the main issue is the really turbulent headers and possibly one of the injectors being screwed up. one of them had been giving me problems for a while so i know for a fact there is a chance its missing a cylinder entirely which isnt doing my exhaust tone any favors. once the rails are done ill look into building a new set of headers, possibly turbo headers.
Nate Boslet is offline
Old 11-06-2018, 09:36 AM
  #339
Senior Member
iTrader: (13)

Join Date: Oct 2010
Location: Ont. Canada
Posts: 1,683
Nice. Glad to see things are moving along slowly but surely. Still waiting for the smoke show vid lighting up tires terrorizing the local villagers lol..
ac max 92 is offline
Old 11-06-2018, 08:55 PM
  #340
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
Originally Posted by ac max 92 View Post
Nice. Glad to see things are moving along slowly but surely. Still waiting for the smoke show vid lighting up tires terrorizing the local villagers lol..
between work and various life situations and changes i just havent had the time or energy to really get to the car and work on it like i had been earlier. ive decided im going to be LS swapping my Z at some point and if i can get the stanza running and driving reliably ill probably sell my hybrid so i can daily the stanza instead but a lot needs to happen before then. i already ripped the intake off and brought it home so i can start on the rails tomorrow and be on my way to seeing if i can get it tuned up and idling right.
Nate Boslet is offline
Old 12-11-2018, 08:28 AM
  #341
Senior Member
iTrader: (13)

Join Date: Oct 2010
Location: Ont. Canada
Posts: 1,683
Any recent progress on the Stanzima?
ac max 92 is offline
Old 01-06-2019, 04:10 AM
  #342
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
i havent disappeared or anything just got a lot going on still, i had to order a specific size drill bit for the fuel rails so im still waiting on that, i bought it online from home depot thinking it would be quicker and they are taking a literal eternity to get it to my local store so thats been a big hold up but once that gets here i will get some progress pics. im trying to sell some of my old VG stuff to get the stanzima done and so i can get started on the Z so if anyone needs anything lmk i have a maxima engine and auto trans, a vg33 from a pathfinder and a bunch of other random parts, lots of intakes, im selling an intake like the one on page one of this thread actually so if anyone is interested in that im asking 450 shipped. regardless of what i sell ill at the very least have the rails done sometime next week.
Nate Boslet is offline
Old 01-08-2019, 08:20 PM
  #343
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
ok so the drill bit made its way to home depot today so i went and grabbed it and rushed home to see if it was actually the right size and if it was going to drill round holes or just turn my rail stock into scrap. being an idiot with a half decent memory i recalled the mistakes i made the last time i made a set of fuel rails and practiced/setup my jigs and stuff on a section of -8 fuel rail i had lying around that im not using for anything atm. (the rail stock im using for the stanzima is -6)

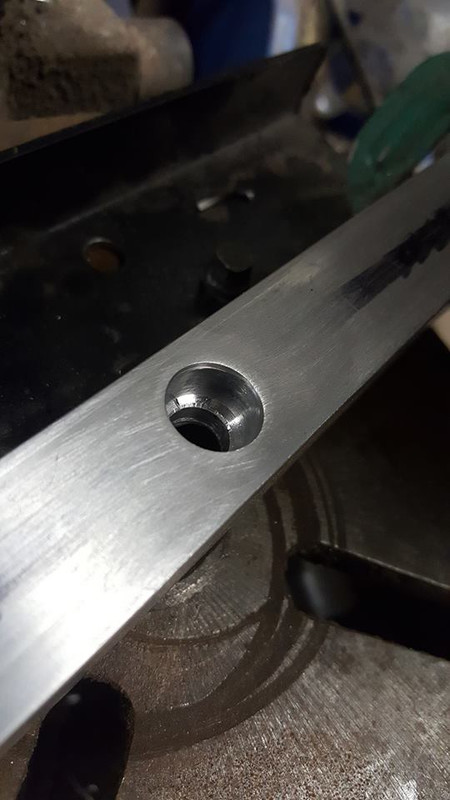

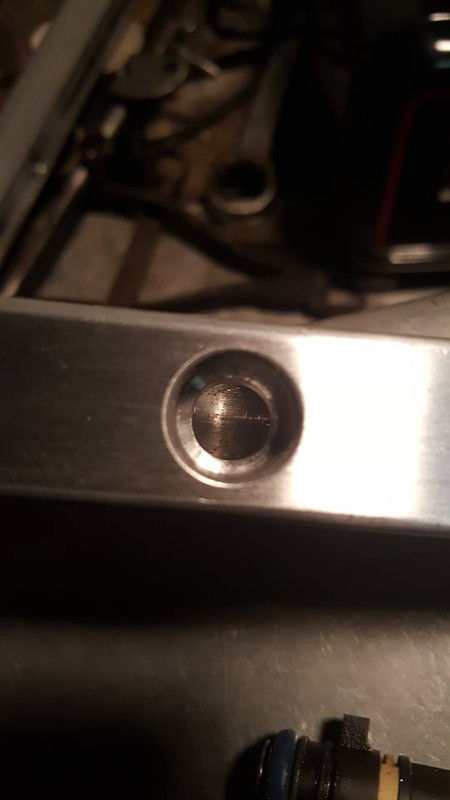

first i scribe the center of the rail, then i locate the exact position along the length of the rail that i want the injector to go (in this first case on the scrap -8 rail it doesnt matter) then i punch mark at the intersection of each mark which leaves me the spacing i want. i spent a few times marking and checking to make sure when i was done the rails would be exactly parallel because the even tho the injector bosses in the lower are exactly the same distance apart they are offset from one side to the other so some margin is required to make the rails line up. once i had my marks laid out and punched i pilot drilled with a 1/4 inch bit, then stepped up to whatever size it was that the top of the injector was (idr) so that it could pass through the hole but the oring would seat against it and then finally i drilled the oring boss with a 17/32 bit and sanded down all the burrs and sharp edges with some 220 grit sandpaper.

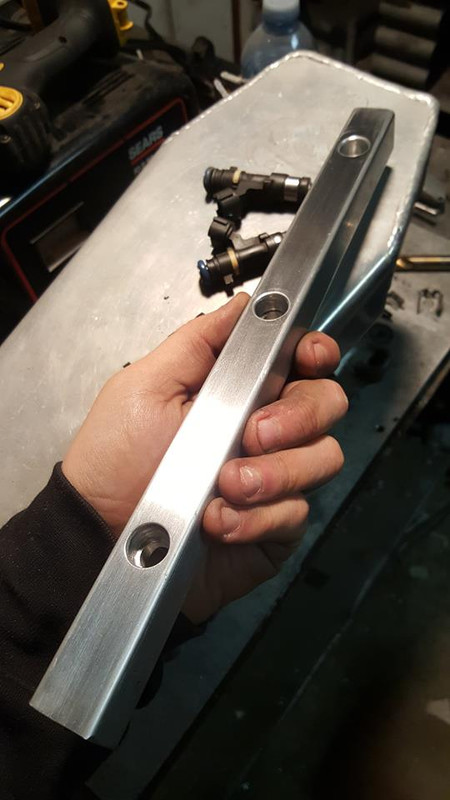

here is the first rail after drilling and sanding

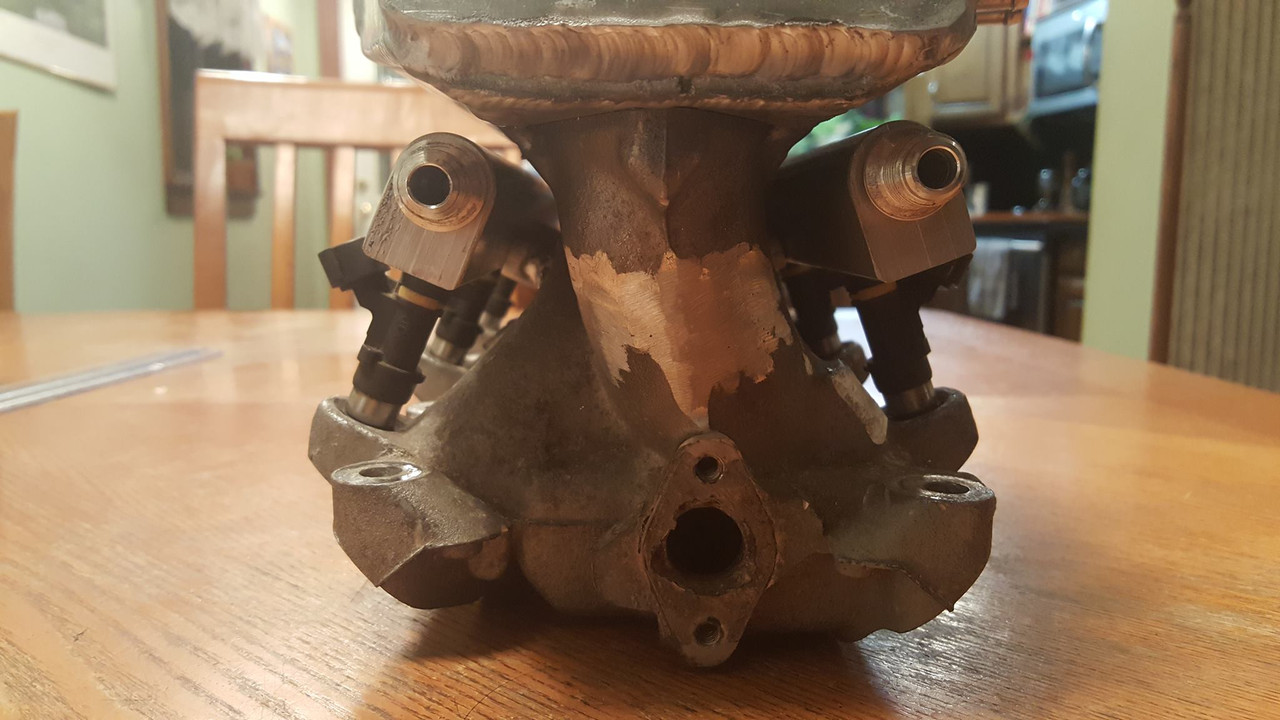

with injectors, notice the offset from one end to the other.

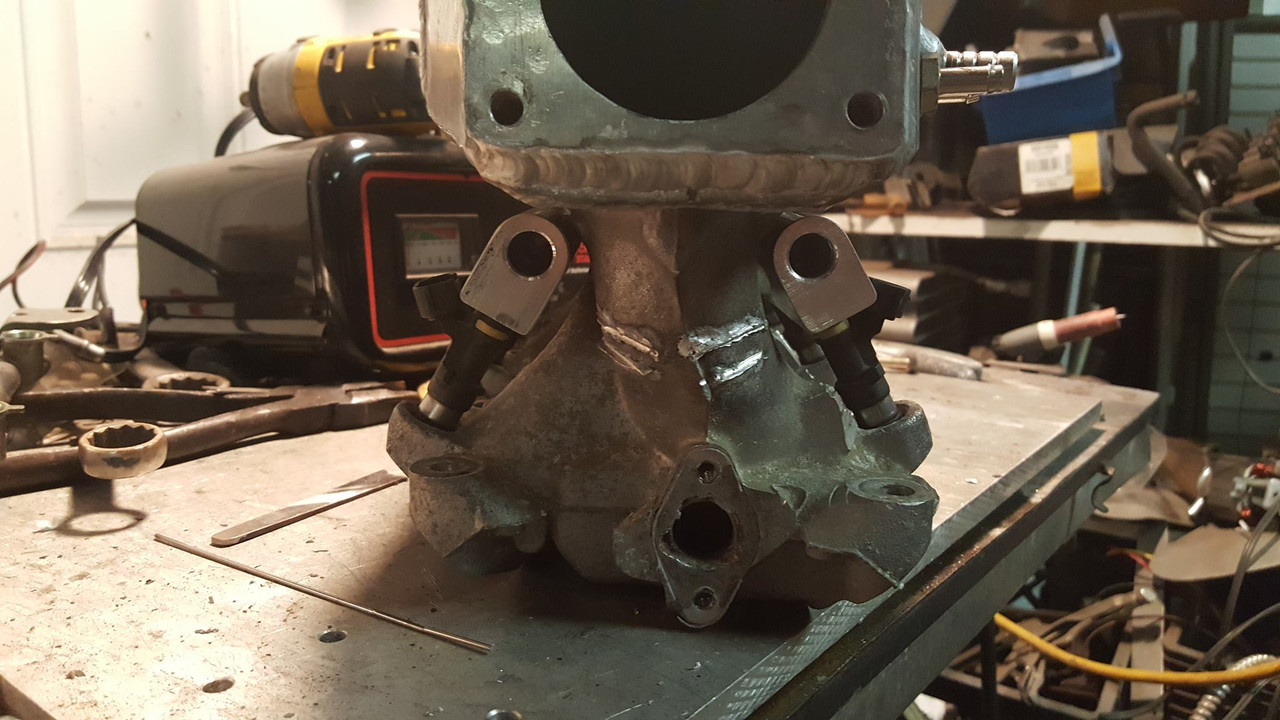

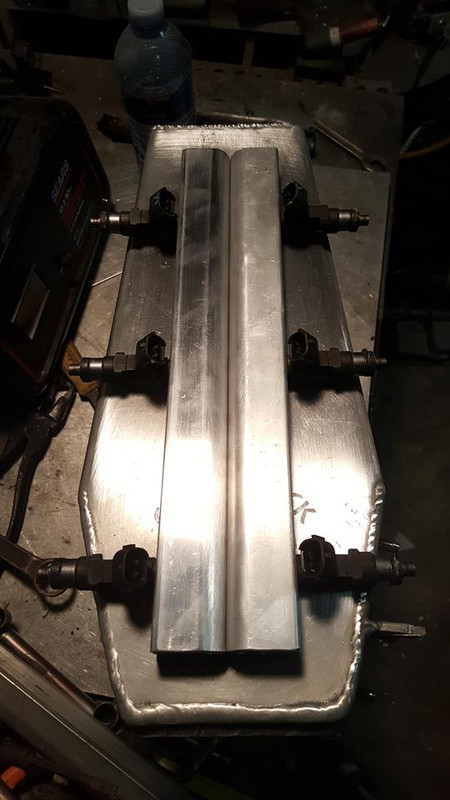

both rails done.







i couldnt really get a good shot of the rails being perfectly parallel lol its hard to tell but they are even.




so next ill be turning and tapping some mounting studs that ill cross drill the rails for and then weld to the lower so the rails will just have 2 bolts going through the side to hold them on. fortunately my old injectors are the same physical size as my new ones so ill just use them to hold the rails in place while im welding so i dont have to worry about arcing into them and destroying the 550s. after the studs are done ill have to get some fittings and bungs and do the fuel lines, i already have most of that stuff once again being donated by the Z so that should all get done very soon.
Nate Boslet is offline
Old 01-09-2019, 06:22 AM
  #344
Senior Member
iTrader: (13)

Join Date: Oct 2010
Location: Ont. Canada
Posts: 1,683
Nice to see this thread back in action. Looking forward to the finished product ☺ I think it's very cool the fact you've been fabricating a lot of your own parts to make the stanzima very unique. Once it's completed you'll have to get that rear center lettering changed to say stanzima lol. Looks like those are just plastic letters? If so I believe I have some from another gen maxima that look to be the same font or very similar so it could say stanzima. I'd be more than happy to donate/mail them to you if you'd like to have them.

Last edited by ac max 92; 01-09-2019 at 06:32 AM.
ac max 92 is offline
Old 01-09-2019, 12:59 PM
  #345
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
that is definitely something id wanna do for sure, thats part of the aesthetic of the car at this point lol yeah private message me man! thank you
Nate Boslet is offline
Old 01-18-2019, 09:15 PM
  #346
Member
Thread Starter

Join Date: Oct 2016
Posts: 250

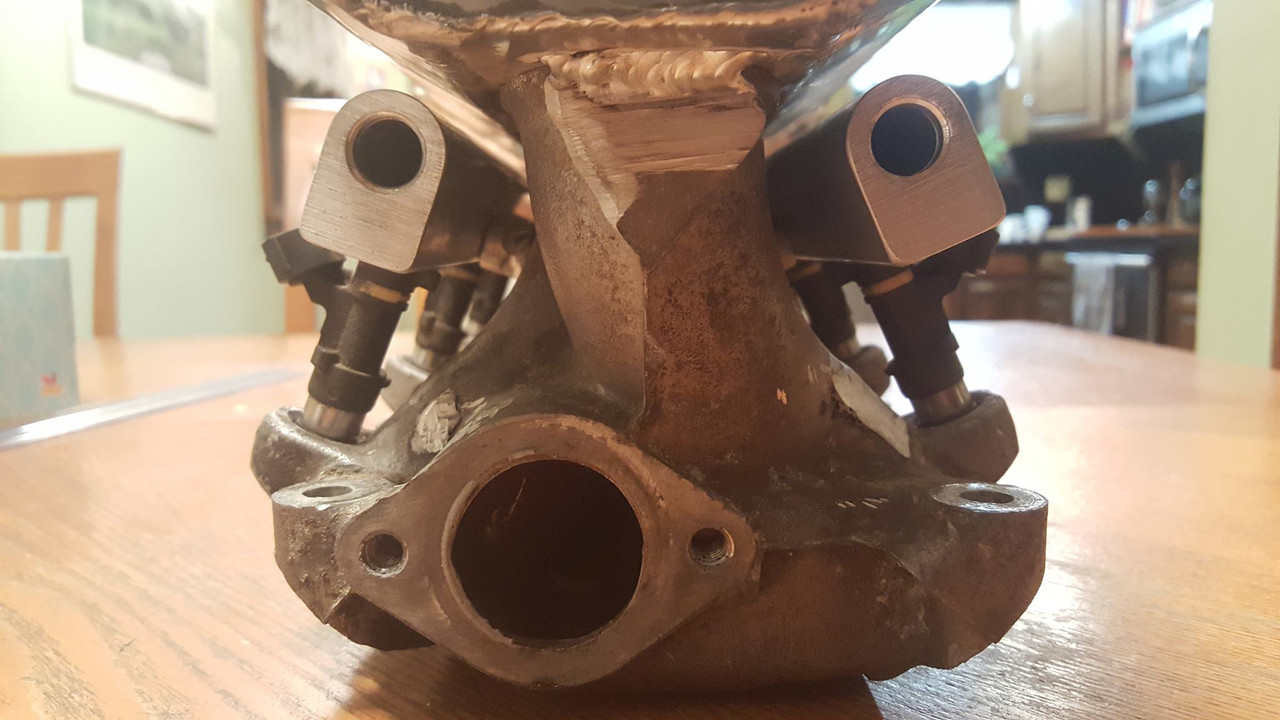

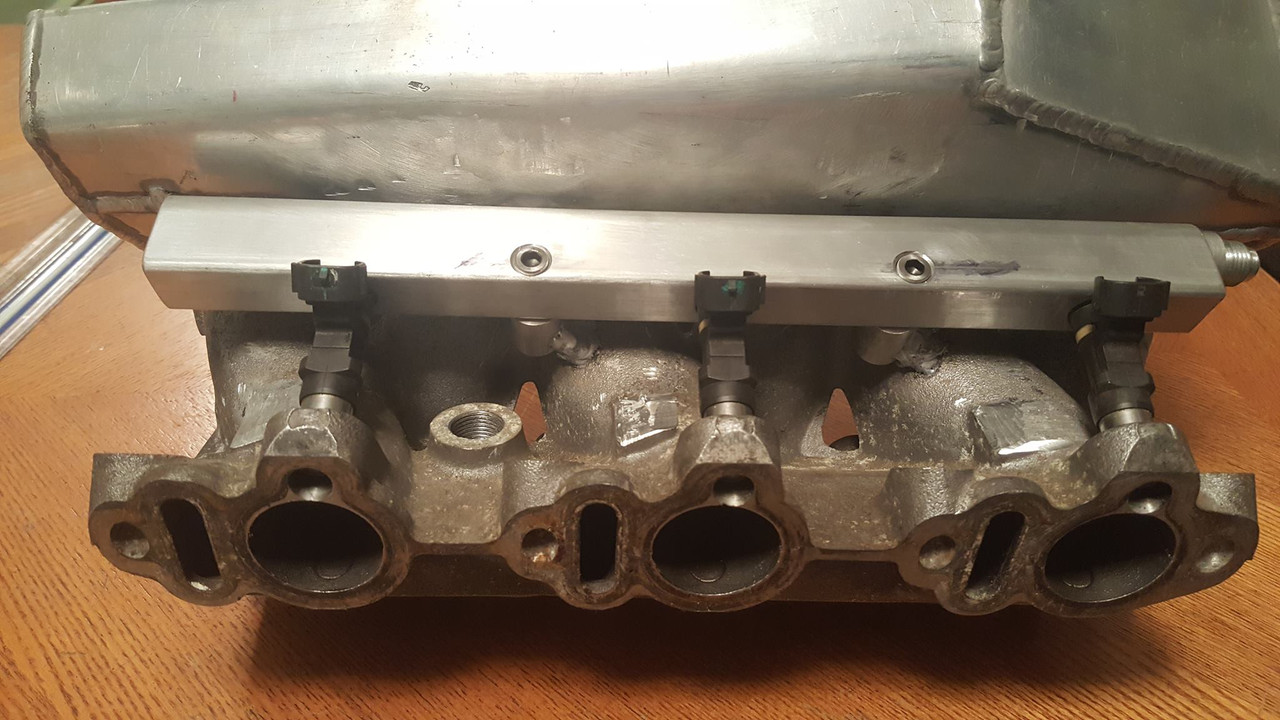

fuel rails are almost completely done. made a lot of progress on them today, basically spent the whole day on them.


first i cross drilled the holes for the mounting bolts

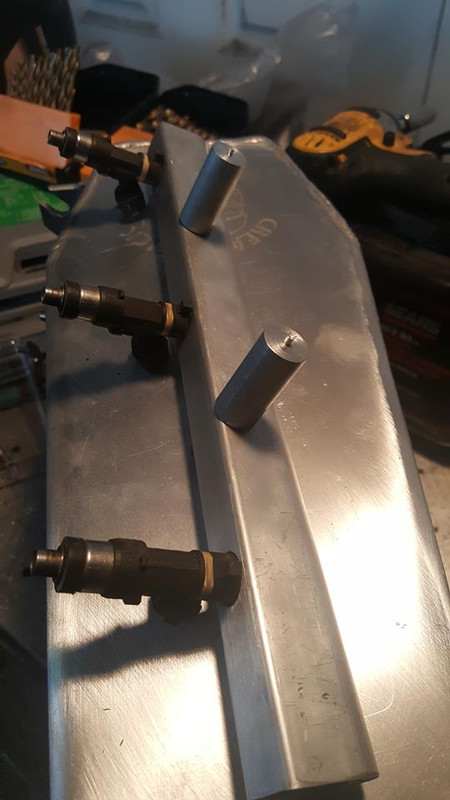

then i made a pair of threaded studs.

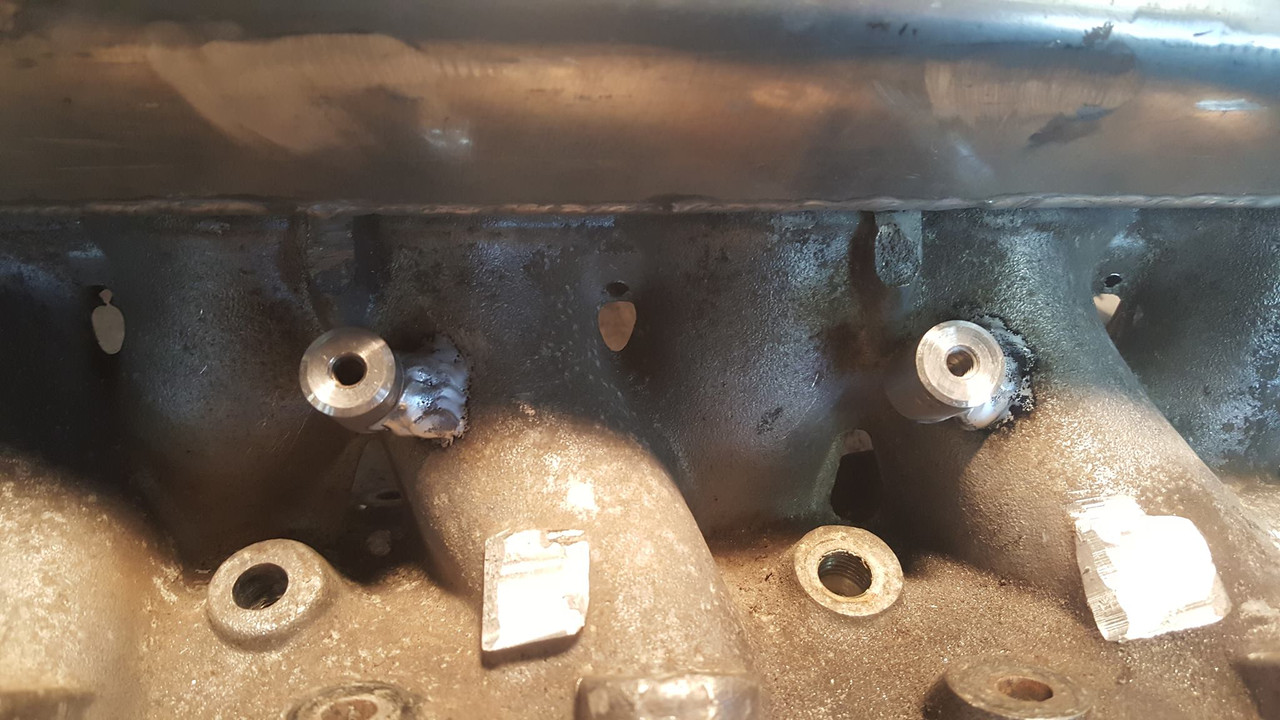

then i cut them down till they were about the right length, rigged up a bunch of random crap i had lying around to get the rails to stay where i wanted them and then tacked the studs, took everything back off and fully welded them up.

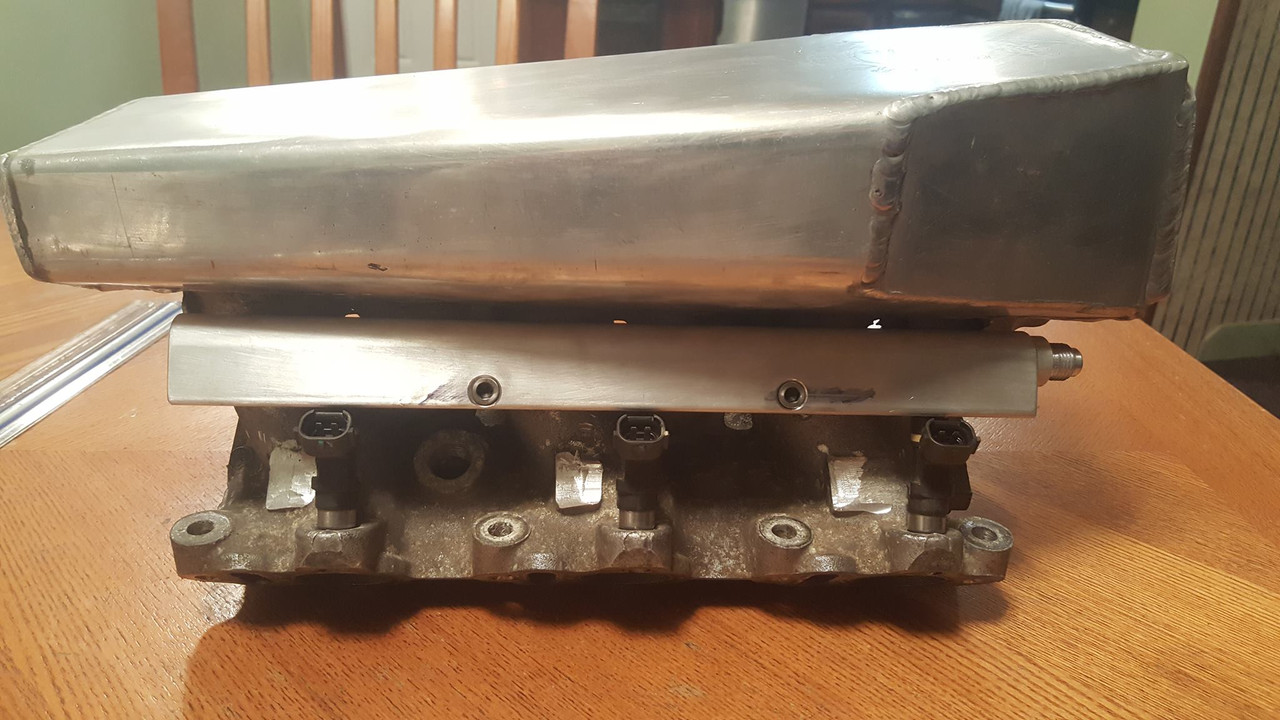

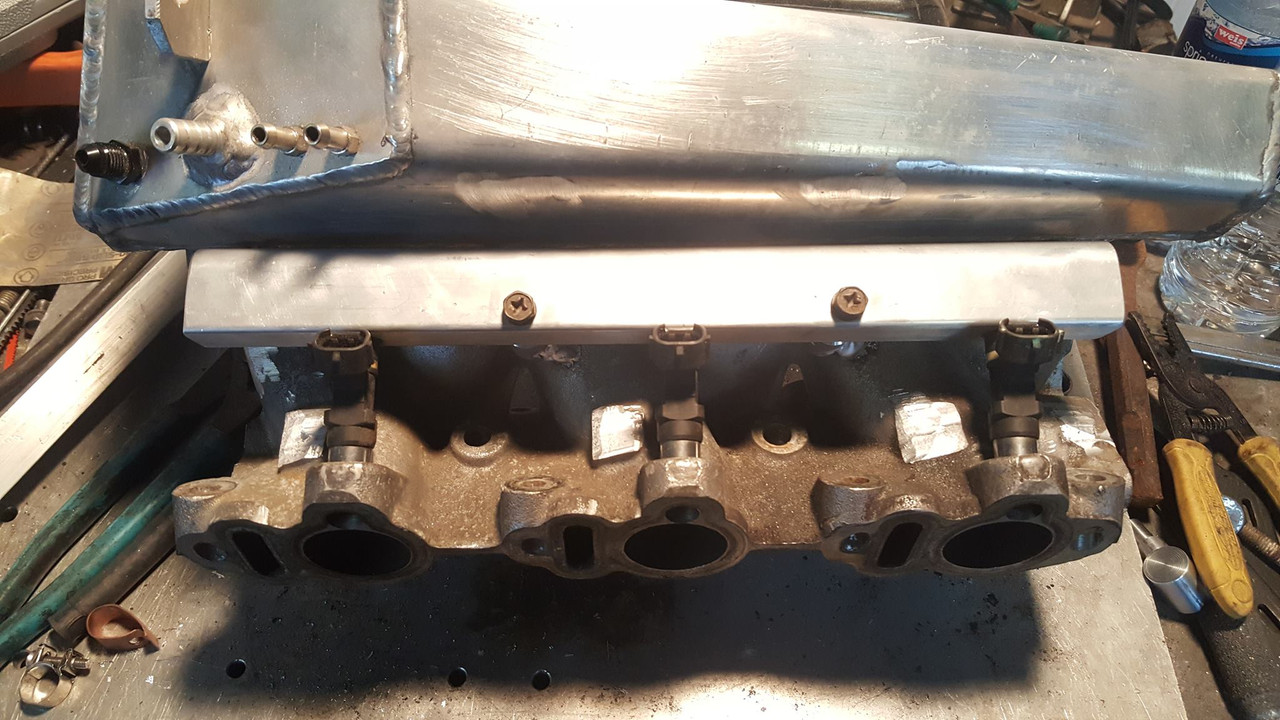

these are the same bolts i used on the z, they are temporary.

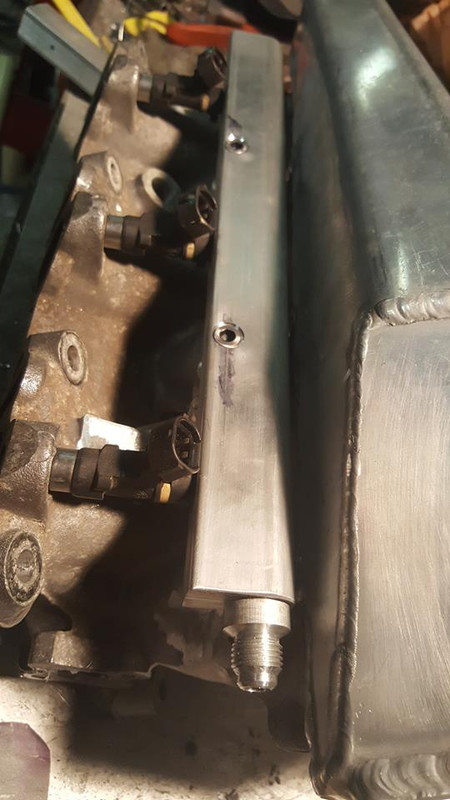

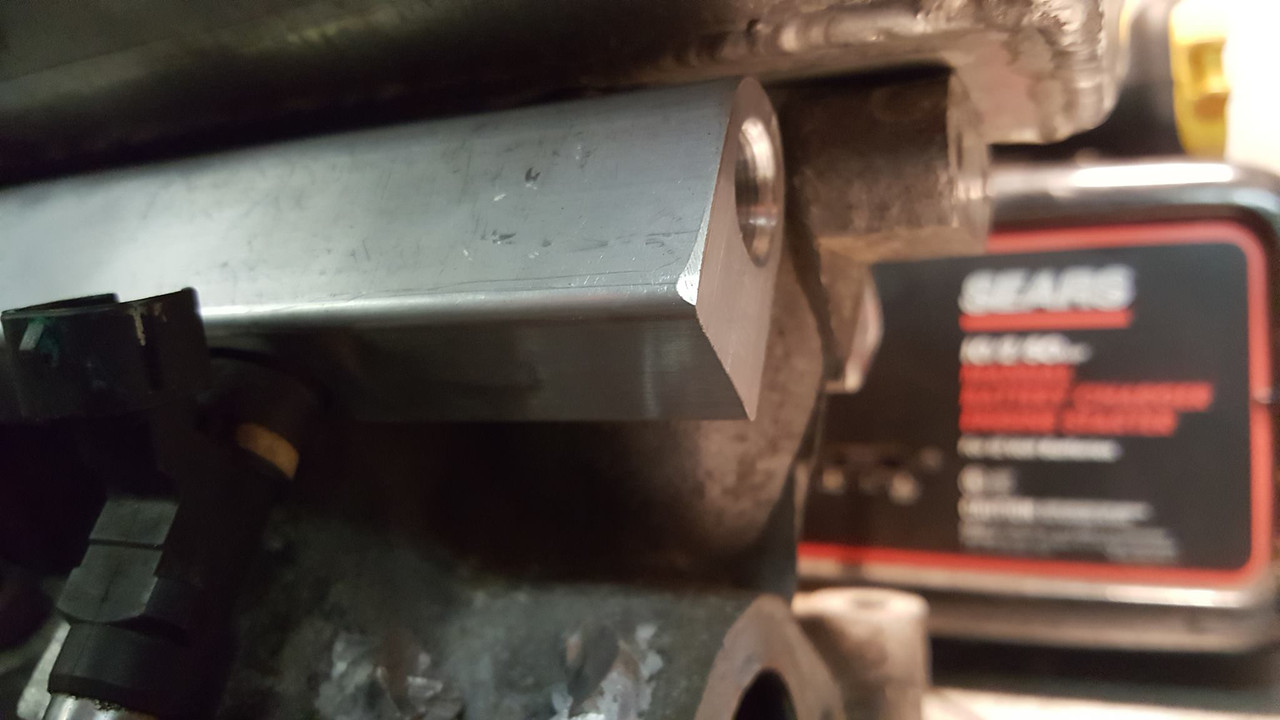

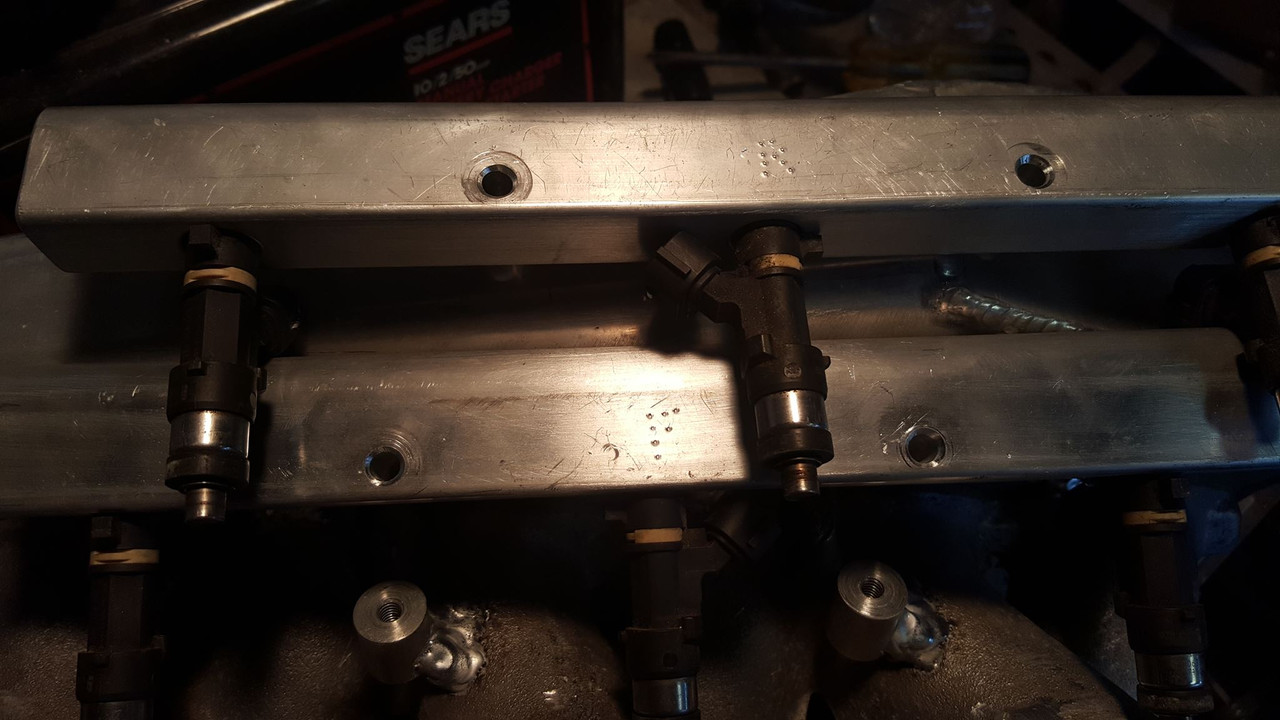

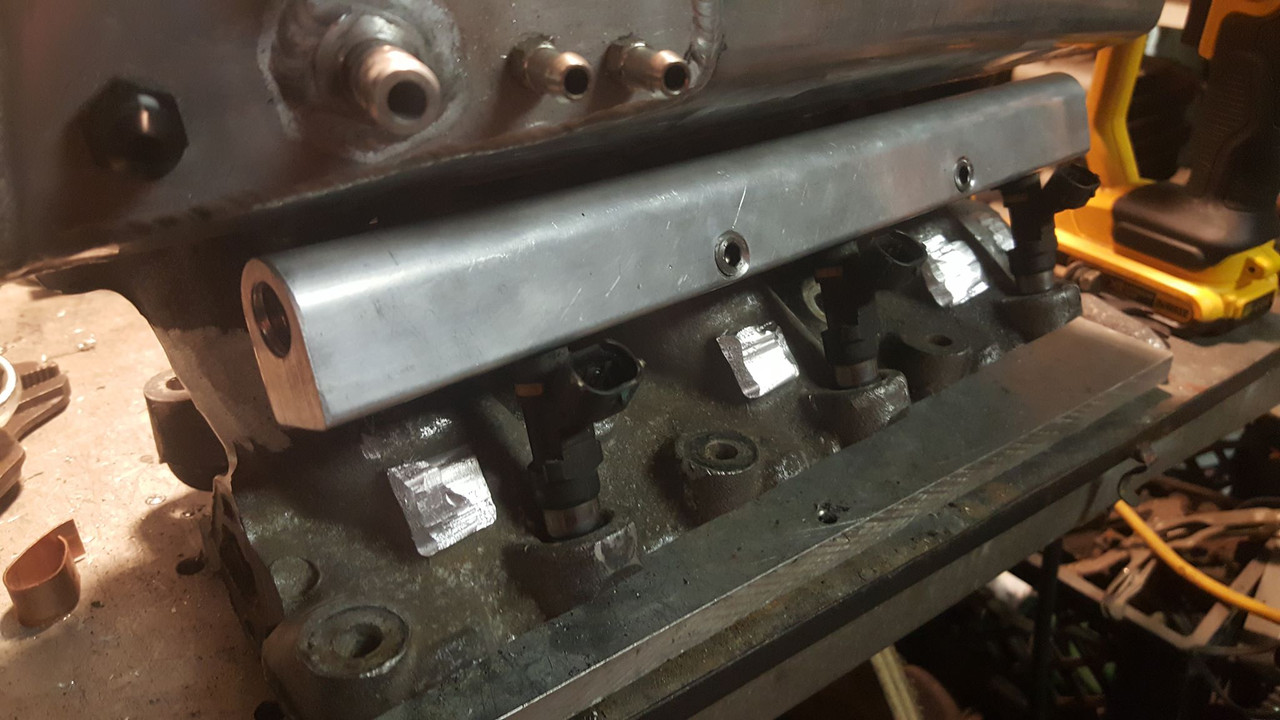

here is the second rail done up to the same point. i punch marked the front and rear at this point so i didnt mix them up since they are virtually identical.



while i was out getting salt for the impending blizzard were supposedly gonna get destroyed by i picked up some socket capped bolts so i could counter sink them, i dont really like these bolts, they were black for some reason so i hit them on the belt sander to try to make them more presentable... not sure how i feel about it but at least they are flush.




i needed 2 dash 6 bungs for the front of the rails that go to the feed and return but the ones i had were used on something else that got scrapped and got all beat up so i decided to just make myself up some new ones as i have done before.




somehow i managed to get a press fit on the first one without trying or paying attention whatsoever so i did the same thing on the second one for convenience when i go to weld them up.

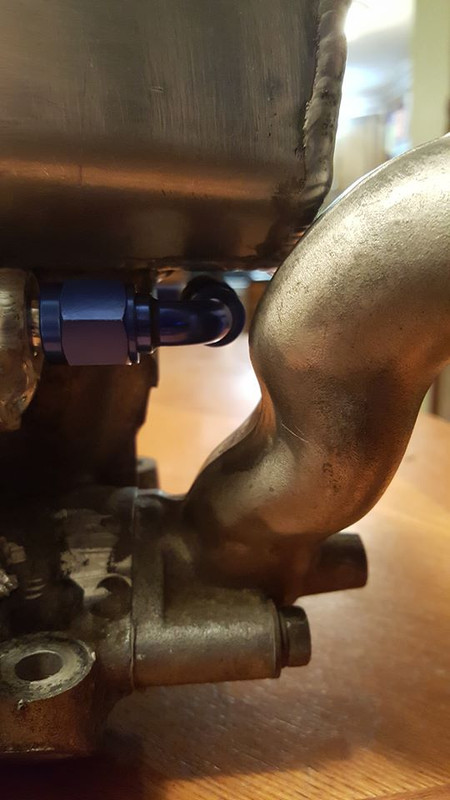

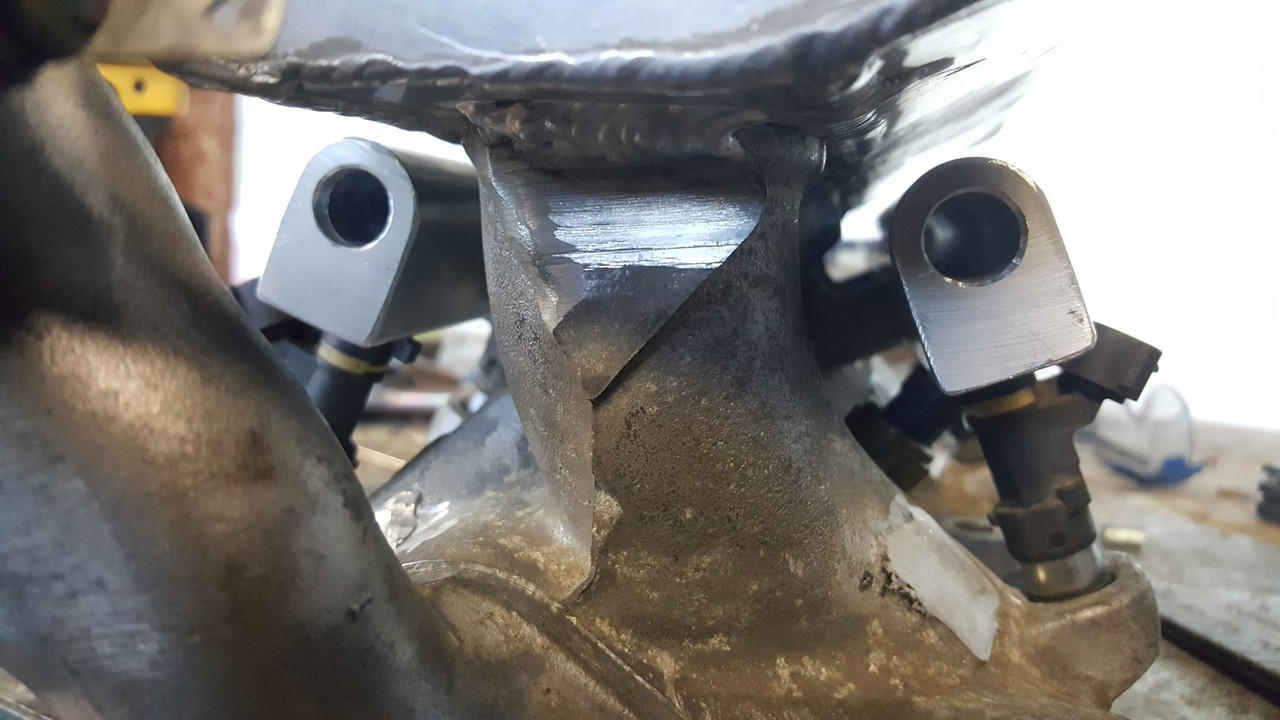

i might be heading up to the garage tomorrow so ill check my clearances and stuff and see what i feel like when its on the car. i cant fit any other kind of joiner where the loop needs to go in the back of the rails, theres not enough space for braided or hard line fittings and i cant loop them around anything either so it has to be barb fittings and a really short section of hose. im confident i can get it to work well but its been the biggest hangup so far, ive done everything else before when i made the same exact design of fuel rail for my z31.

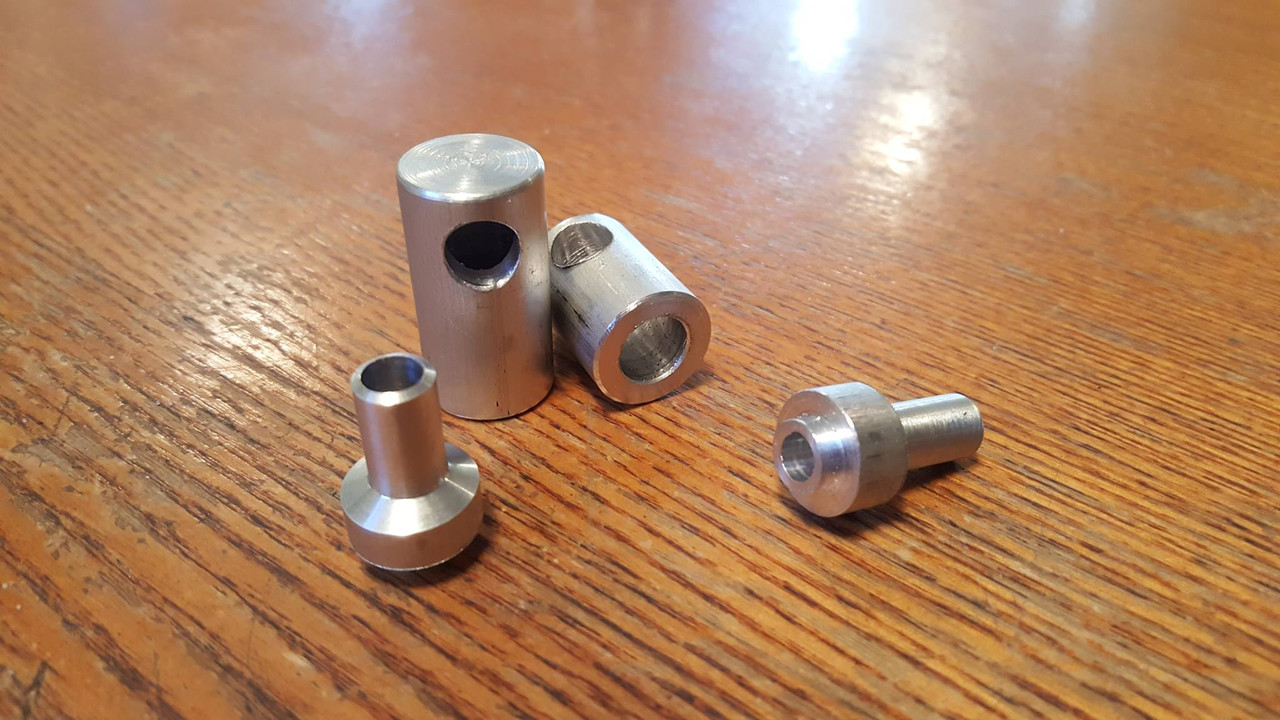

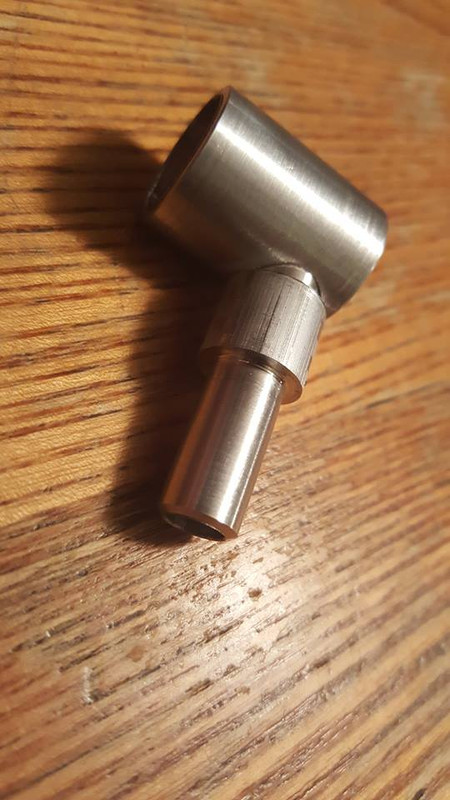

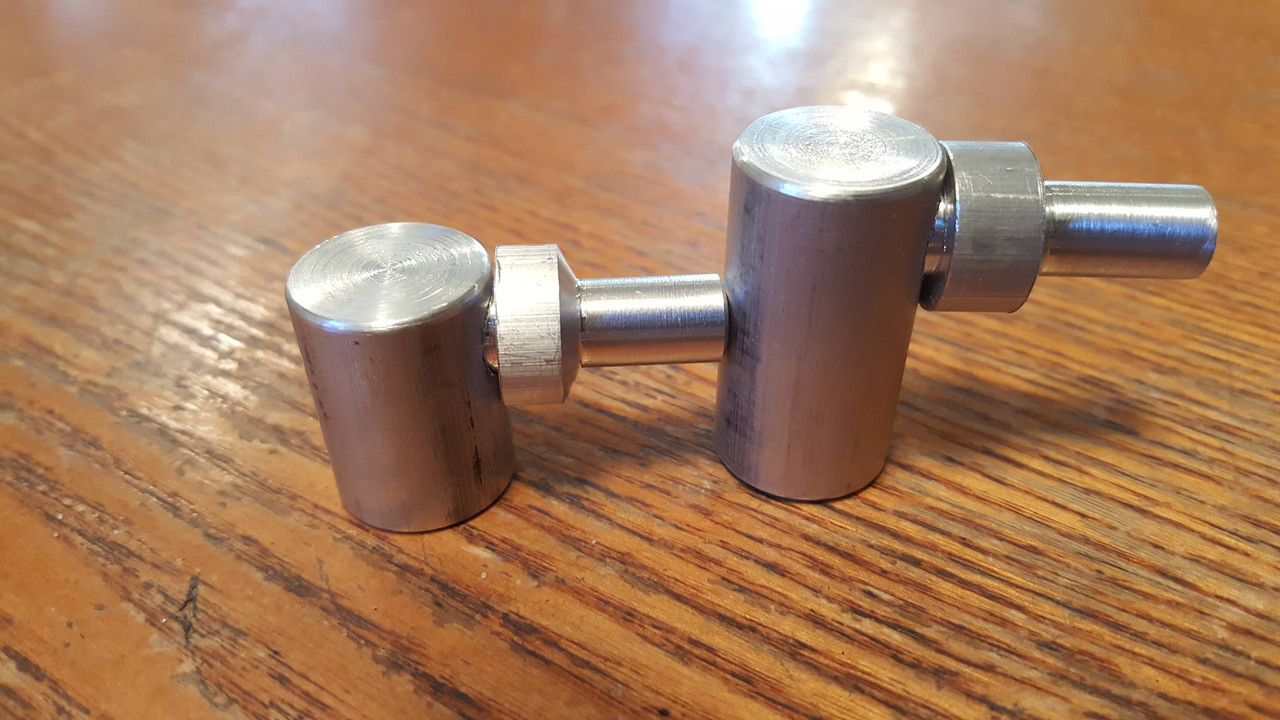

the fitting is made from 2 different sizes of rod, the larger one i drilled a blind hole about as big as i felt comfortable drilling it and then drilled a hole in the side, turned the barbed fitting side and a press fit and a shoulder on the other side and then tapped them together. this joint would get welded and then the whole fitting would be welded to the end of the fuel rails but this was just a proof of concept/making sure i could actually do it so if i decide to change the design i wont care that becomes scrap lol
















next post should be about the final touches on the fuel rails and mounting up the FPR, making new feed and return lines, a new vacuum line and wiring in the bosch 550 injectors and hopefully getting the car to run better than it has in years. we will see.

Last edited by Nate Boslet; 01-18-2019 at 09:19 PM.
Nate Boslet is offline
Old 01-18-2019, 11:40 PM
  #347
Senior Member
iTrader: (2)

Join Date: Apr 2004
Location: Plano, TX
Posts: 10,327
When you first started this project, I thought you were going for a daily driver with a bit more engine under the hood. But you are going so much further. The work you are doing is so phenomenal.

Care to venture a guess when you will have the car on the street?.
DennisMik is offline
Old 01-19-2019, 04:35 PM
  #348
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
Originally Posted by DennisMik View Post
When you first started this project, I thought you were going for a daily driver with a bit more engine under the hood. But you are going so much further. The work you are doing is so phenomenal.

Care to venture a guess when you will have the car on the street?.
thank you very much, the car was my daily driver for a few years so i still of it that way but as far as actually driving it every day obviously that hasnt been the case lol ive been dailying the hybrid lately but the plan is to get the stanzima done and running really good and then selling the hybrid so i can daily the stanzima instead. i care a lot more about the car getting built the way i want it and learning as much as possible than just getting it on the road and driving it by any means necessary, ive seen a lot of builds that use that kind of mentality and i cant afford to buy everything and i dont want to half *** anything so this is the pace i keep unfortunately lol i really appreciate everyones support here tho i dont get a lot of interest in what i do anywhere else.

i think the fuel rails are the last major thing i need to do unless i find some new issue on the next test drive so realistically, accounting for the weather which has been rough, sometime next month i should be back to drivable.
Nate Boslet is offline
Old 01-26-2019, 10:09 PM
  #349
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
so yesterday i spent pretty much the entire day maching and welding together these little angle pieces, you wouldnt think it would take all day but the thing is i had to make them 4 HECKING times because my welder doesnt have any kind of pulse control and i kept melting the small parts until i machined them as thick as possible lol these were the last iteration and at this point i was about ready to lose my mind.



as with all things sometimes even the most determined and hard fought effort is rewarded in a plentiful bounty of failure, even after successfully welding these fittings together and getting them tacked onto the rails i realized this solution would not be viable whatsoever lol there was no way to actually get the hose between the two barbs once the rails were back on the intake, the one rail actually couldnt even come on and off the intake at all so i just had to break them both off and throw them away. i was too pissed to take pictures but i never really liked this solution in the first place tbh and ive already come up with a more elegant solution so ill be posting that very soon. i would much rather have a bad idea fail and be forced to come up with a better one than have it succeed and have some consequence come later on, the frustration will pay off lol



so that brings us to the day before yesterday or whenever it was that i brought everything up to the garage and mocked it up just to make sure i was on the right track, everything looks like its going to fit fine but i decided i would need an FPR bracket. i know i wont need a bracket for my fuel filter or at least not anything crazy (probably just a P clip)



i decided the stock fuel filter was a perfect location for the FPR so i took the bracket for it home with me.

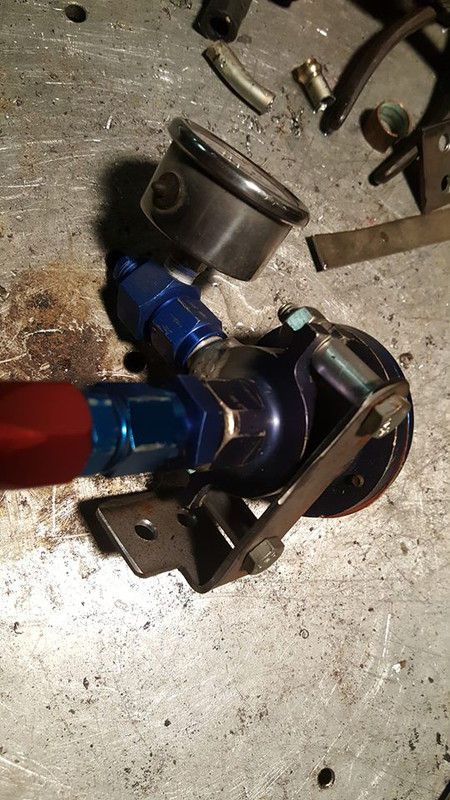

this was the bracket i had made for when this FPR was in my Z. you may notice this is not a regular FPR this one is actually for a kenne bell supercharger i believe, it had like one of those oring bosses you would just push into the side of something and bolt it on, i just drilled that out and welded an AN fitting to it (the heat turned the anodizing purple lol) the bracket looks pretty jank but it held it solid so i decided to keep the basic design and just kind of improve it with new materials.

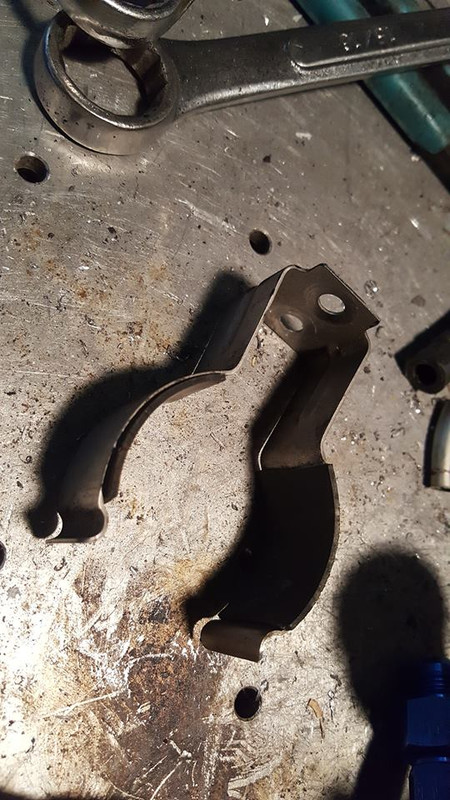

here is the fuel filter bracket, i really only took it for the bolt pattern, im not going to modify it in any way its going to be scrap.

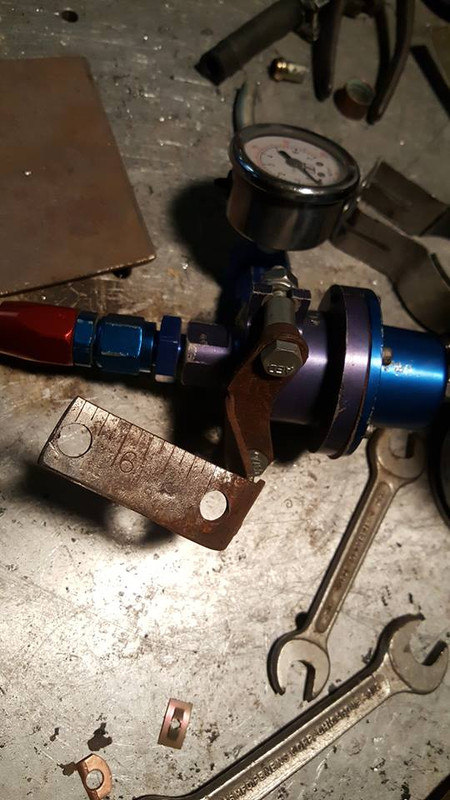

here is the new bracket, couldnt really be simpler, just a piece of steel with 4 holes in it and a 90 degree bend.

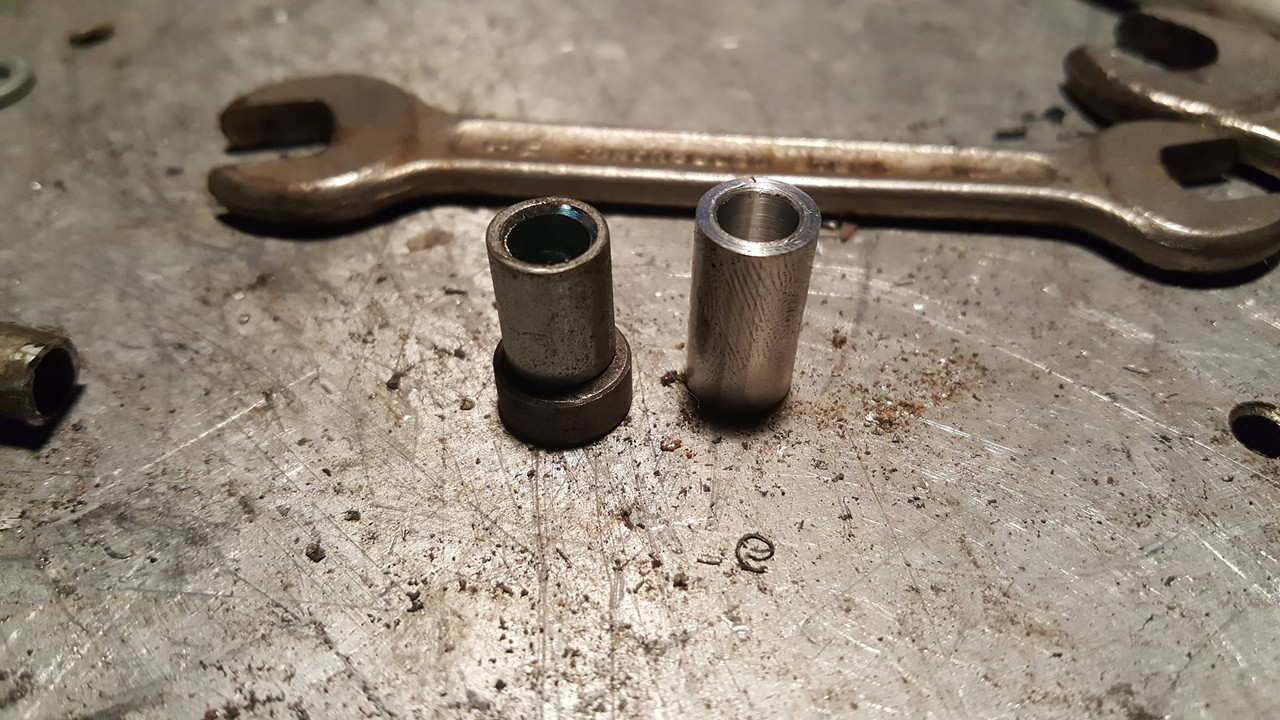

i also took this opportunity to make new spacers, i figured having one solid spacer would make it easier than having 2 little ones and it only took 10 minutes on the lathe to do.

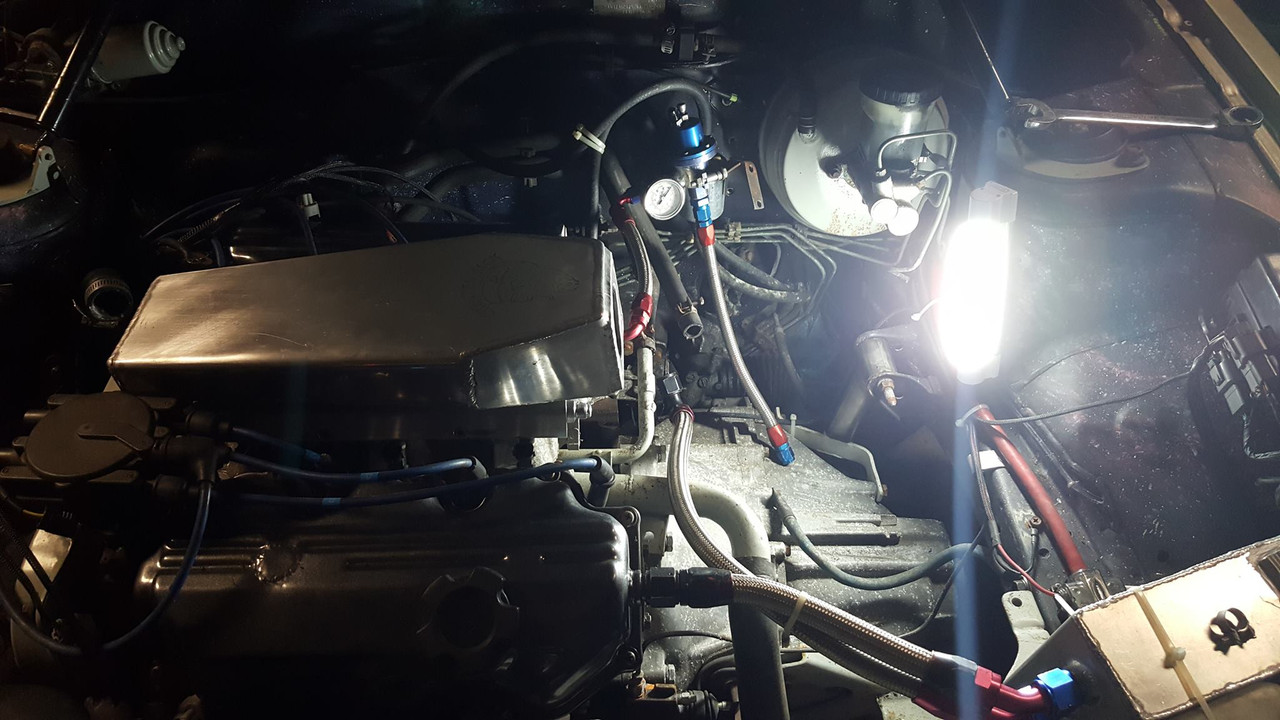

heres the bracket all done and bolted up. obviously ill have to bolt the bracket back onto the car first and then the regulator but i figure once its on there ill never have to take it off again i can just pull the lines for whatever im doing. regardless it should put the regulator where i want it.



so next im working on the new design for the rear loop for the rails, im gonna be using AN fittings so i can just take the whole loop off of the rails entirely, this will make assembly a million times easier than my other solution, i hate rubber.... then im going to have to find some new crush sleeves for my 3/8ths fuel line to -6 AN fitting adaptors and then ill be able to bolt everything onto the car, i messed with the lines while i was at home, you may have noticed they werent quite the right lengths in the pictures, they are much closer now, i hope they will fit up the way they are if not i should have enough line lying around to get something made up. regardless its definitely getting there. i decided im going to leave the old injectors in the first time i try starting everything up just to compare them to the 550s on the exact same fuel setup so i know for sure it was the injectors and not some other issue. ill try to get the fuel pressure to whatever the maxima rails were putting out. more updates coming soon.
Nate Boslet is offline
Old 02-03-2019, 02:16 PM
  #350
Member
Thread Starter

Join Date: Oct 2016
Posts: 250

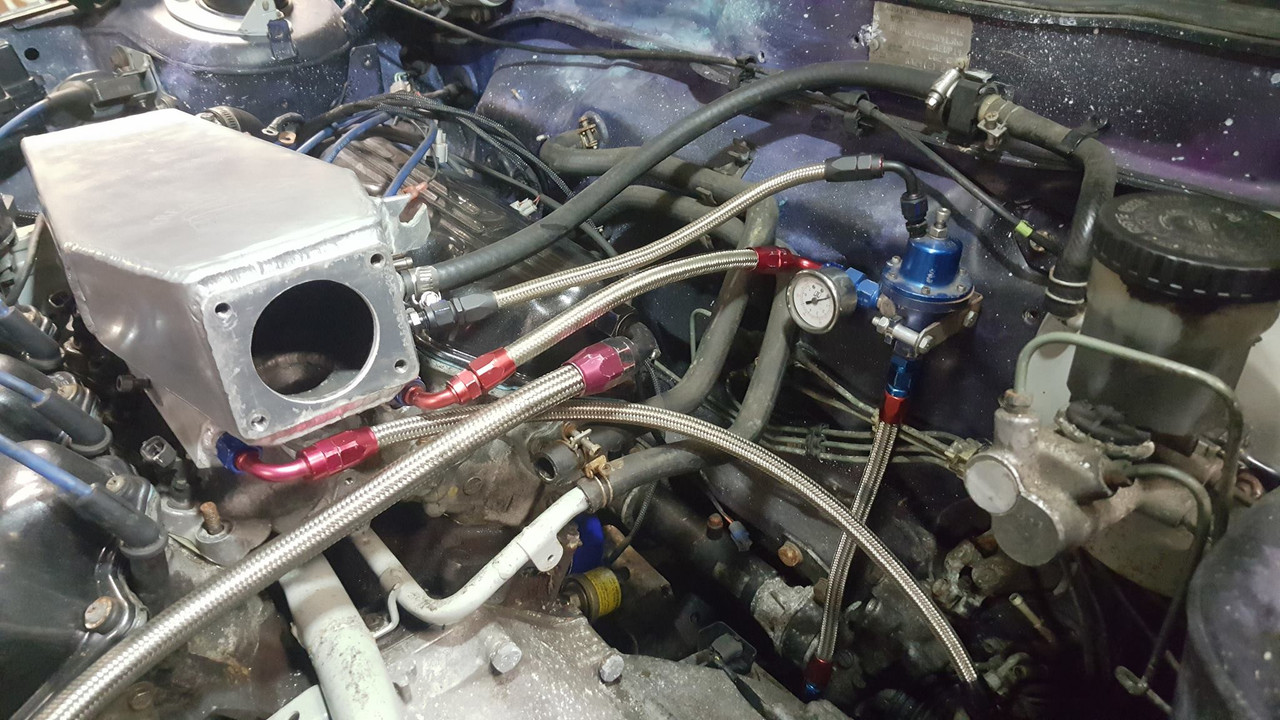

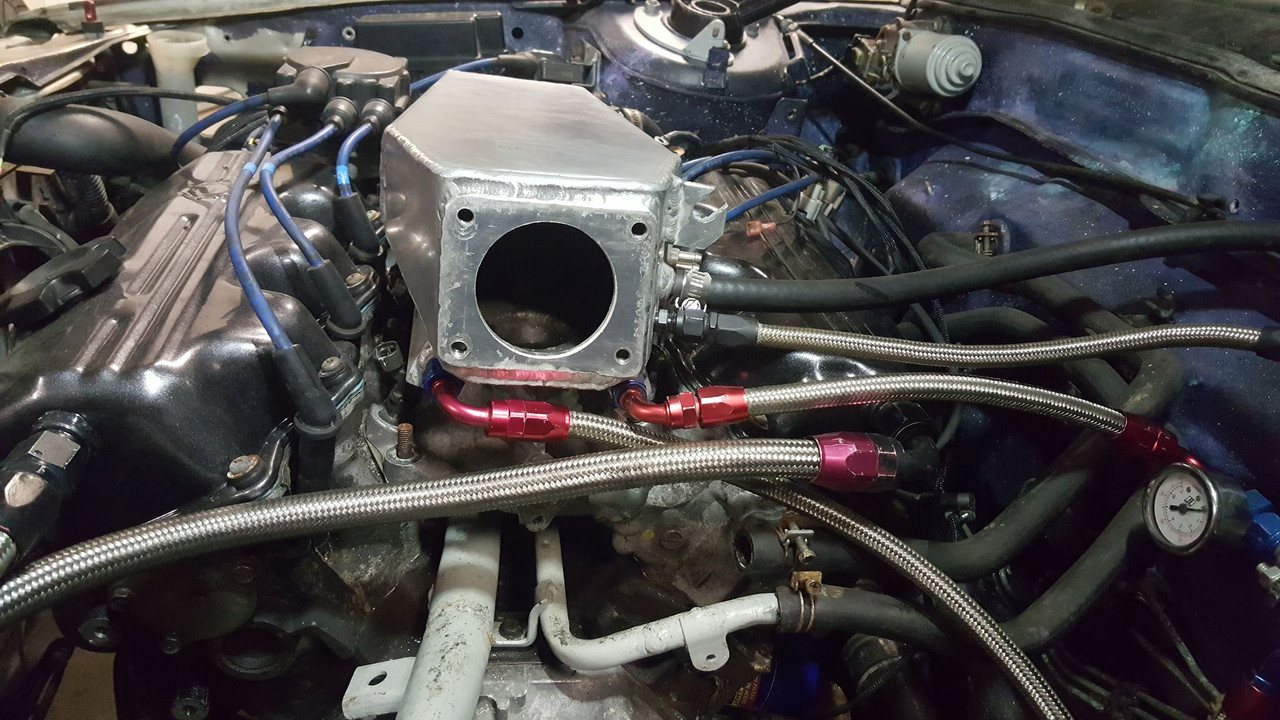

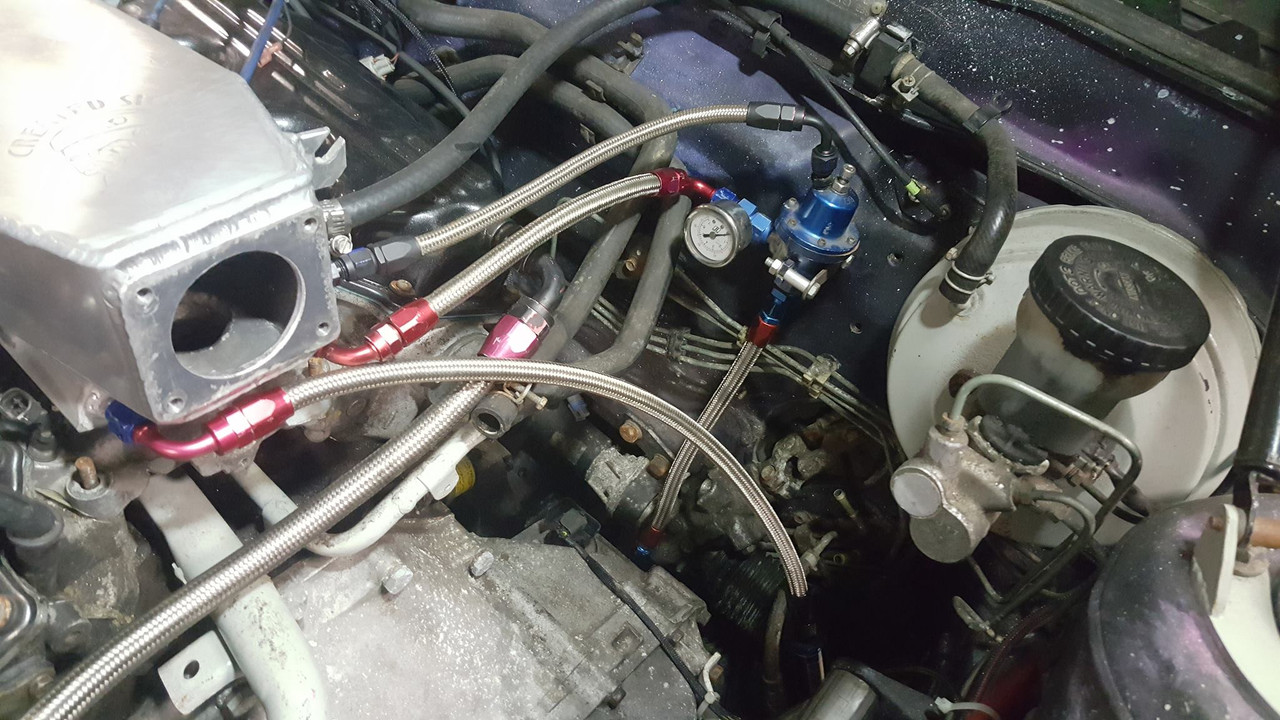

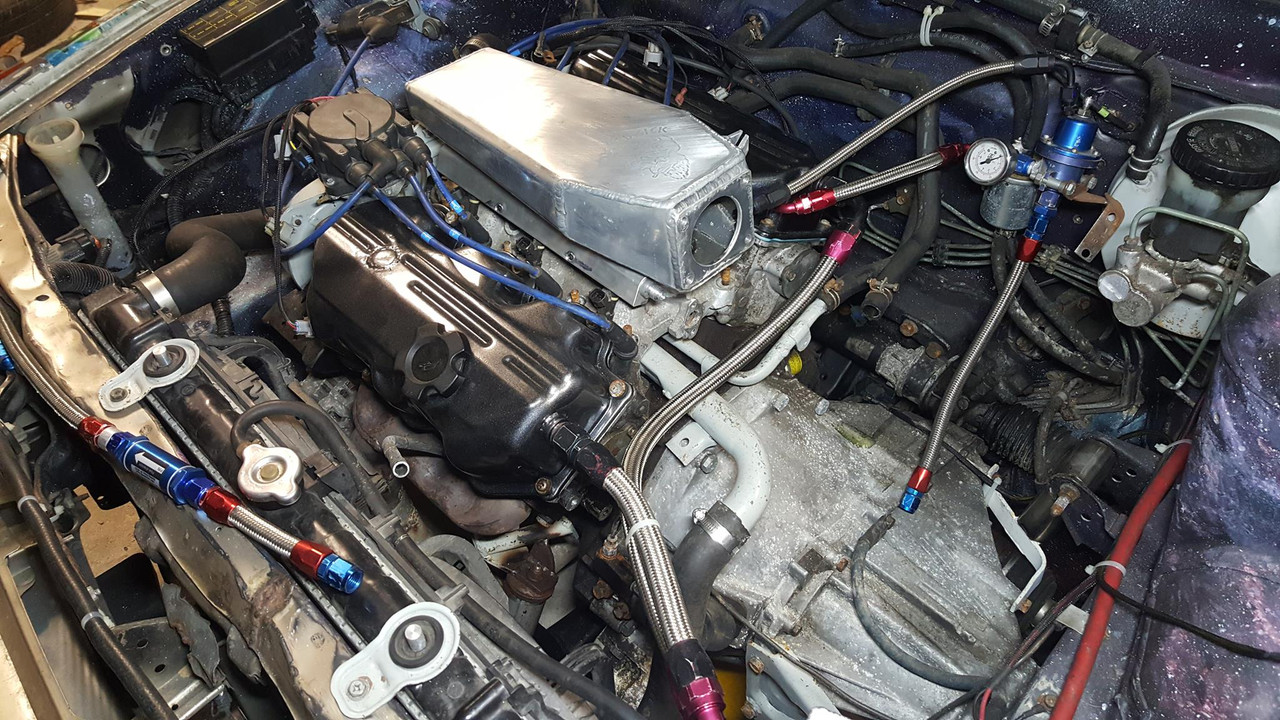

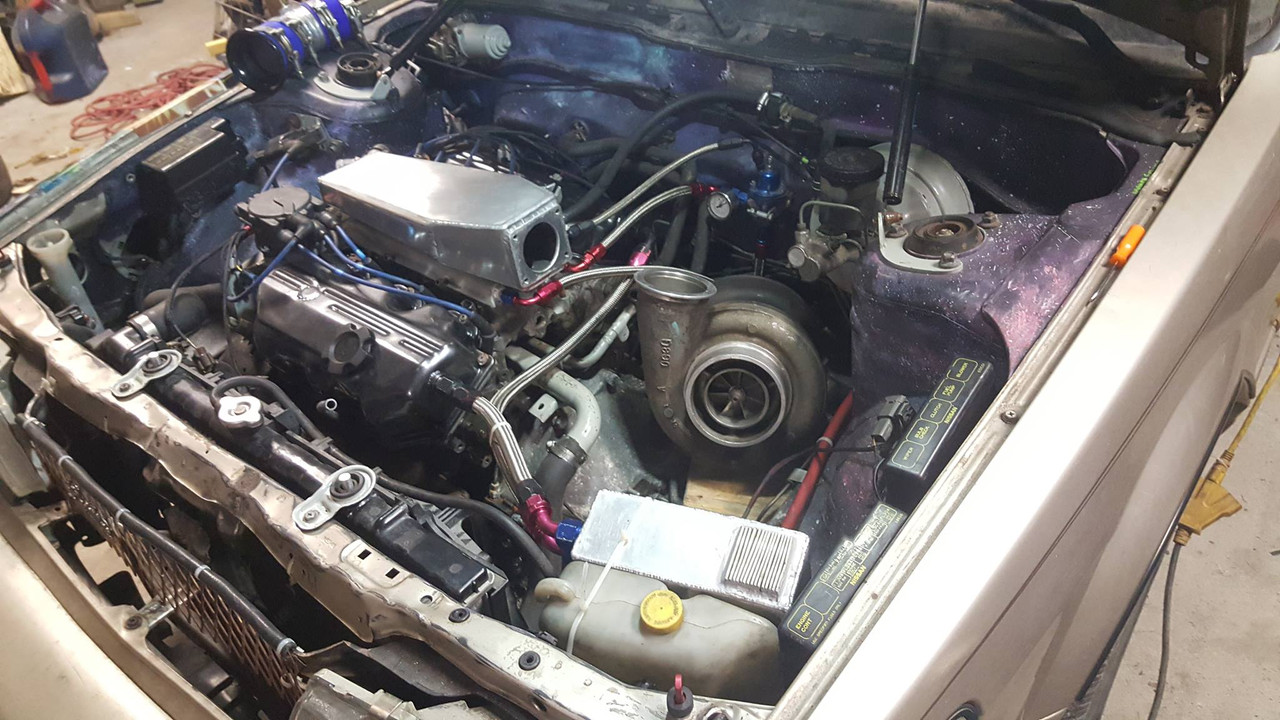

FPR bracket is installed and looks good. some of the lines are done but i am still missing the adaptors for the stock hard line. im not gonna replace that until i need to upgrade the fuel pump and stuff which definitely wont be necessary anytime soon.





hopefully this area will look a little less cluttered once the intake and stuff is back together. im not sure how i feel about all this braided line in one place lol but it should all work so thats good enough for me.



didnt really have too much to do after that last night. i just got the fittings for the rear loop on the fuel rails today so ill post that up soon but i do have one more thing to show, last night a friend brought me a little present. since im upgrading my fuel i figured id have a little headroom for more boost so i decided a little upgrade from the hx35 might be in order.... NBD not really anything too crazy just a little S475.



Nate Boslet is offline
Old 02-07-2019, 03:22 PM
  #351
Senior Member
iTrader: (2)

Join Date: Apr 2004
Location: Plano, TX
Posts: 10,327
From what I can tell from the photos, it looks like you will have to put a scoop on the hood. Am I correct?
DennisMik is offline
Old 02-07-2019, 07:56 PM
  #352
Member
Thread Starter

Join Date: Oct 2016
Posts: 250
Originally Posted by DennisMik View Post
From what I can tell from the photos, it looks like you will have to put a scoop on the hood. Am I correct?
i didnt realize the pictures made this turbo look somewhat reasonably sized but i was just goofing around lol this turbo is too big for the VG to even spool up and even if it could it would push the head studs right out of the block at 5psi lol this is the biggest turbo i have ever seen in person in my life. my buddy with the corvette decided to go nitrous so he gave it to me for my LS z31 project. its even a little bit big for the LS so the vg that is literally half the size is gonna have to be happy with that hx35 :P

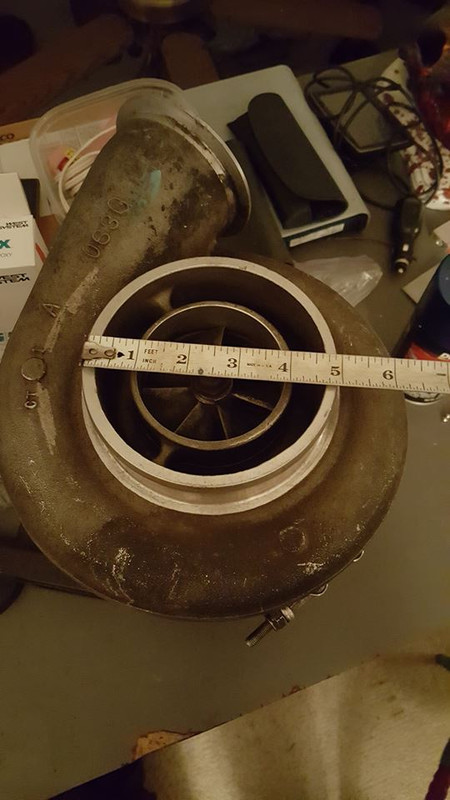

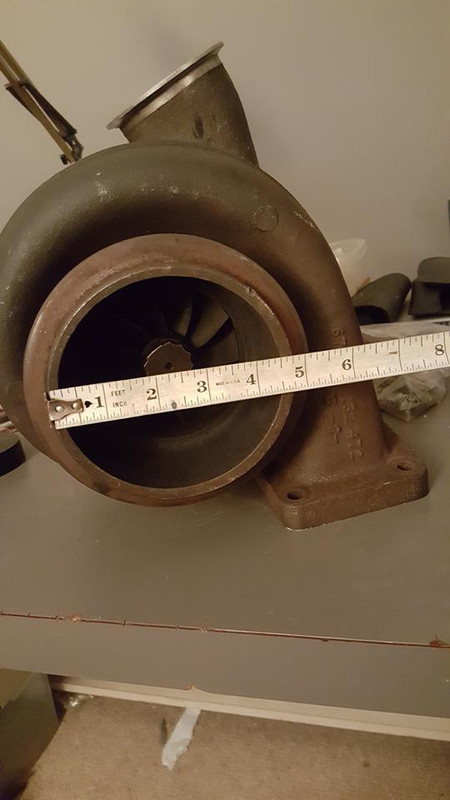

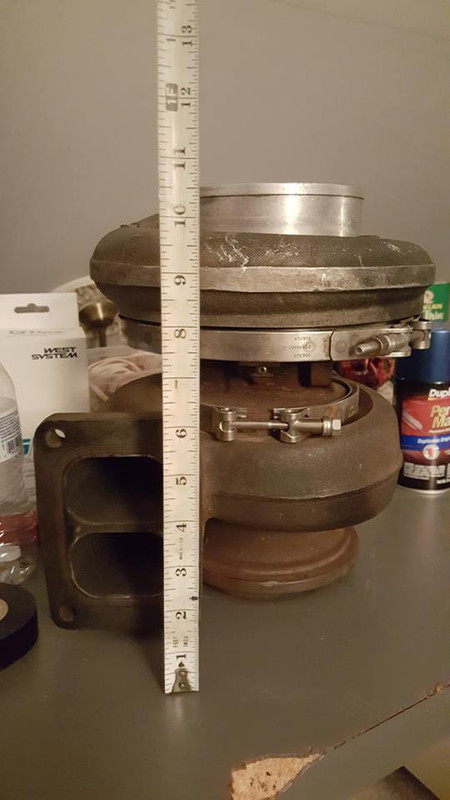

here are some better pics to illustrate how comically large this turbo is lol










just as a comparison to the dimensions of the turbo the stanza IS going to get, which is also not a small turbo by any means, this s475 has about an inch and a half on just about every dimension of the hx35. needless to say im excited about it haha

but you guys arent here to listen to me yammer on about my Z31 (ill be starting a thread for that car when the time comes ill let yall know dont worry) you come here for the stanzima. i promise i will have an update on that tomorrow. i have the new fittings and line to finish the rear loop and some line, i might have to experiment and mess around with some stuff and i might be forced to do things i dont want to do but regardless something will get done tomorrow lol
Nate Boslet is offline
Old 02-10-2019, 11:44 AM
  #353
Member
Thread Starter

Join Date: Oct 2016
Posts: 250

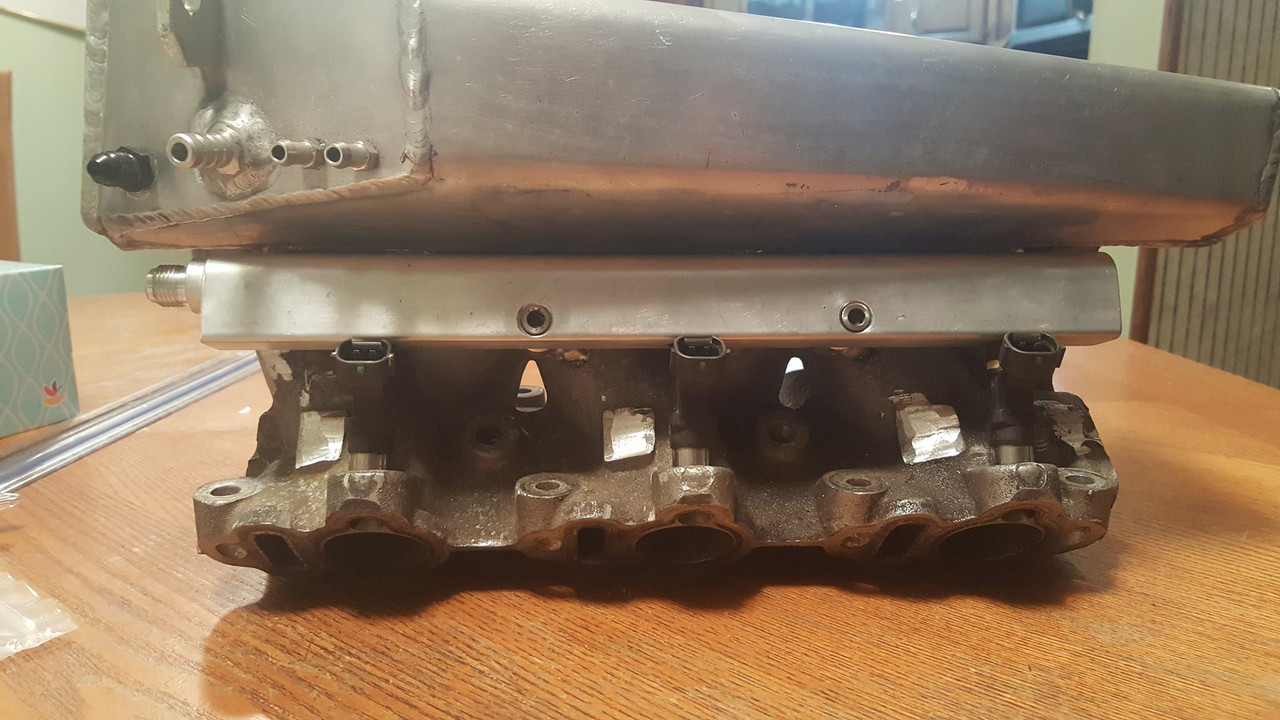

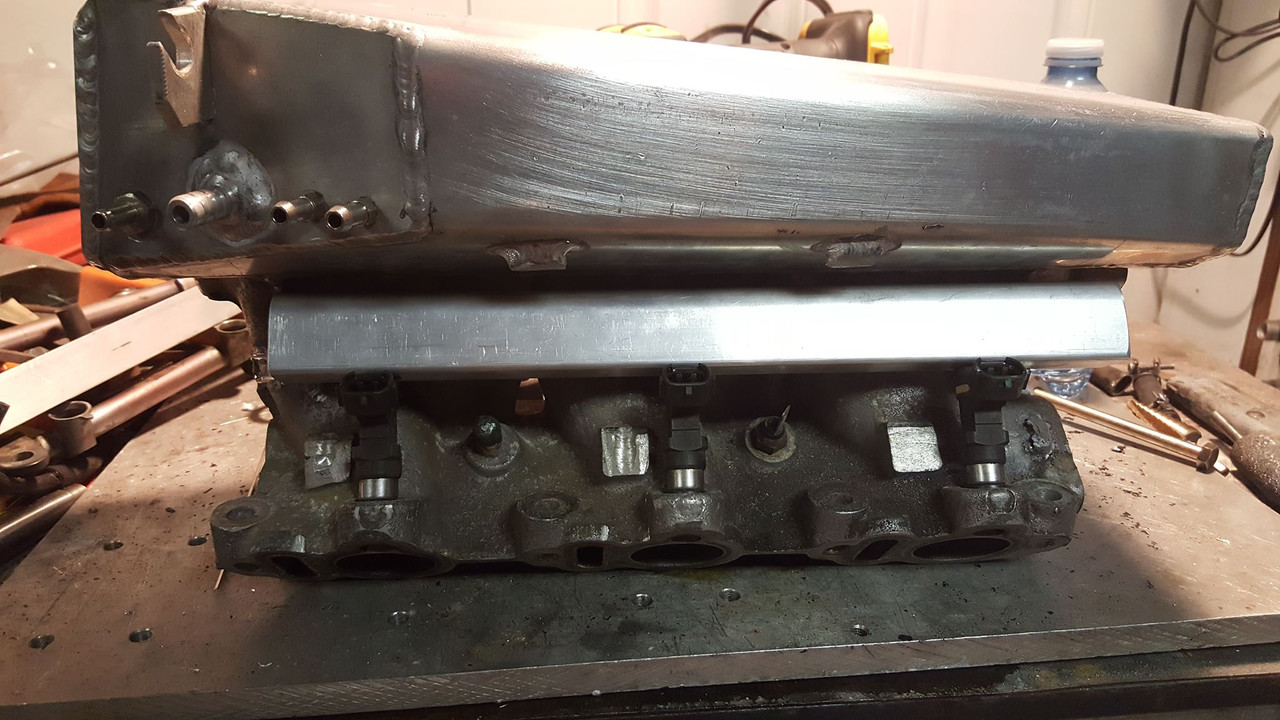

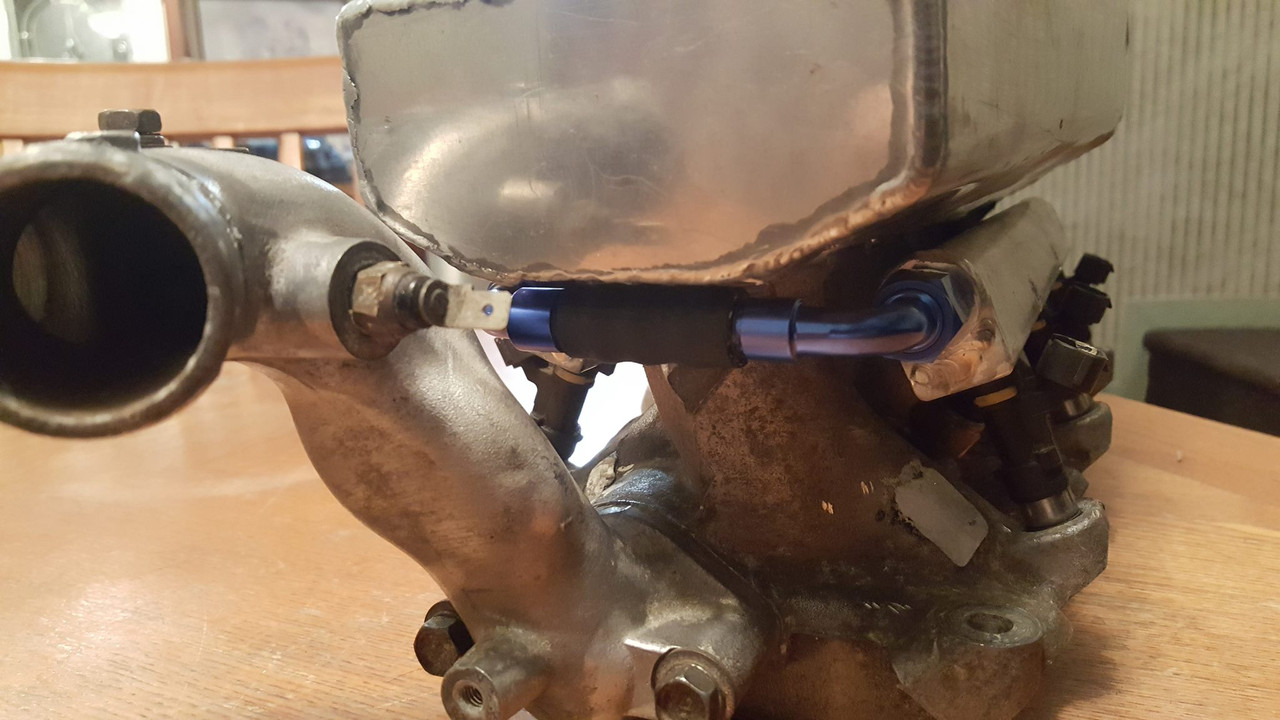

i finally got the fittings i needed and got the fuel rails done. basically all i did was mount the fuel rails up and then i used a square against the rails and the fittings to make sure they were going to clear the rear of the lower intake and thats how i figured out how much to take off of the left rail, then i used a straight edge on the machined mating surface of the coolant neck to take a measurement for how far away the fuel rail was and then transferred that measurement to the other rail to make them exactly the same length in relation to each other since the offset made it impossible to just cut the same amount off of each side (plus they werent perfect to begin with, now they are) for anyone that is curious i cut the rails in my bandsaw with one of those little sled things to try to get 90 degrees and then used my 12 inch disc sander to bring them in and clean up the cut then chamfered the holes with a step drill since i dont have any bigger deburring tools, i also filed the outer edges.

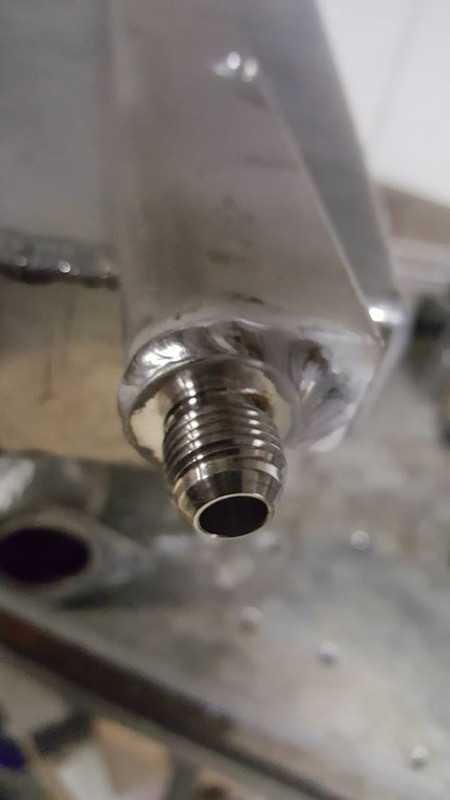

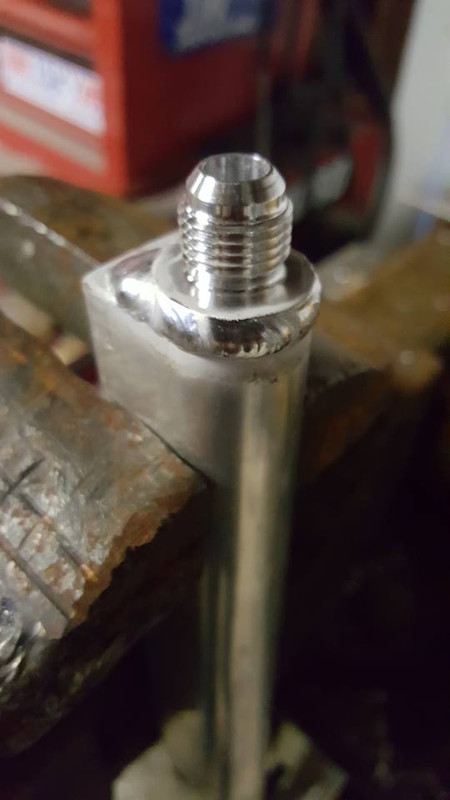

once i had that done i welded on the 6AN bungs.





i did my best to make sure these parts all fit together as square as i could get them so that once i put the fittings on they are perfectly aligned, of course the fittings themselves werent square so that didnt help but there is some degree of leeway for this type of fitting so it still works and holds pressure, i tested them to like 120psi and they didnt leak at all so im pretty happy about that. here are some shots of the clearance, its not crazy tight or anything but it was a difficult problem to solve lol im happy with this solution tho.



you probably cant tell and i really should have taken pictures but i had to grind one of the tips of the fittings down, they have two barbs and i ground a whole one off of one so they wouldnt hit each other. if you look close you can actually see there are only three little bumps in the hose lol







so there you have it, the rails are finally done. now i just have to find or make some new compression sleeves for my adaptor fittings and i can finally finish the fuel system and start the car up. if everything checks out ill be throwing the new 550cc injectors in there, changing the tune and hopefully ruining my perfectly good street tires.
Nate Boslet is offline
Old 02-10-2019, 04:34 PM
  #354
Senior Member
iTrader: (10)

Join Date: Jun 2006
Location: Philly
Posts: 732
Looks super tight but in a clean way.
95naSTA is offline

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
