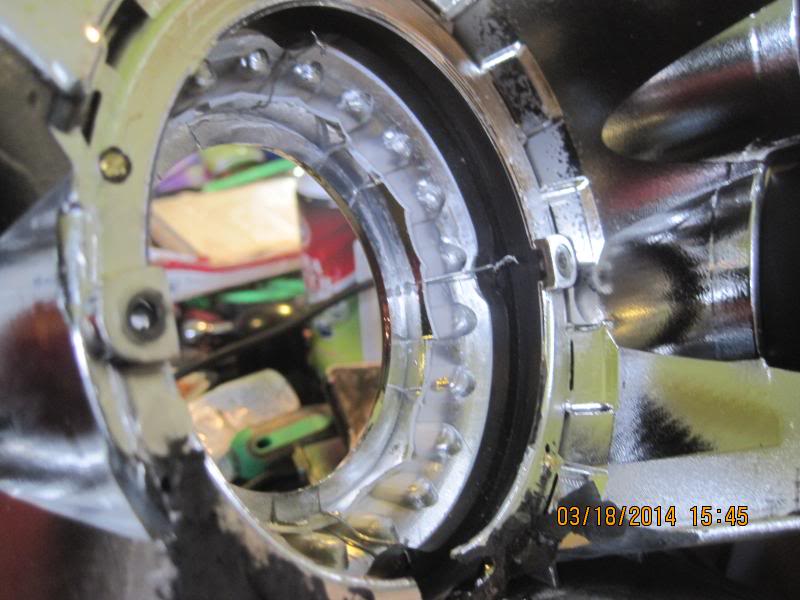

OK, took a day off today just to get this quad project going again. Was planning to close the light today till I found out one of the shrouds has chorme peeling out I don't know if it came like that or I caused it. I did the other 3 the same way and was perfect! I'll get then ordered from TRS.


Passenger side, almost done just need to close and seal the light.

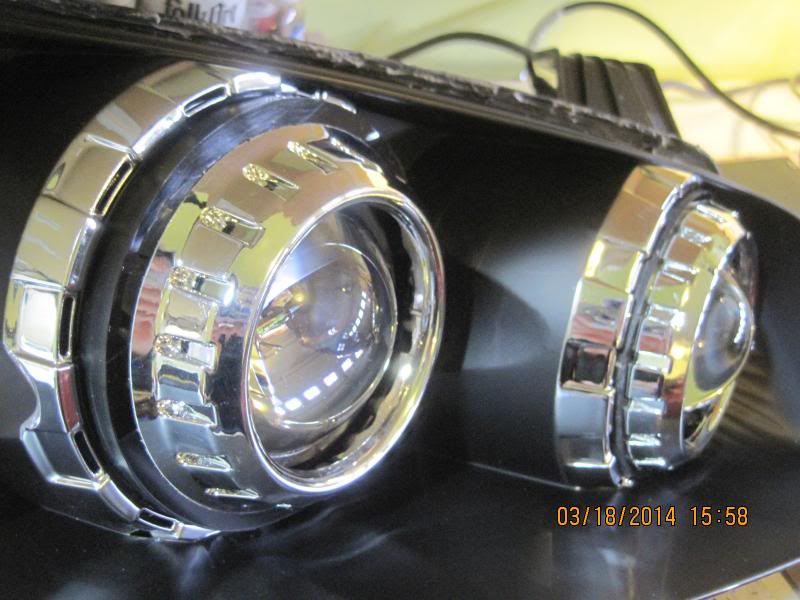

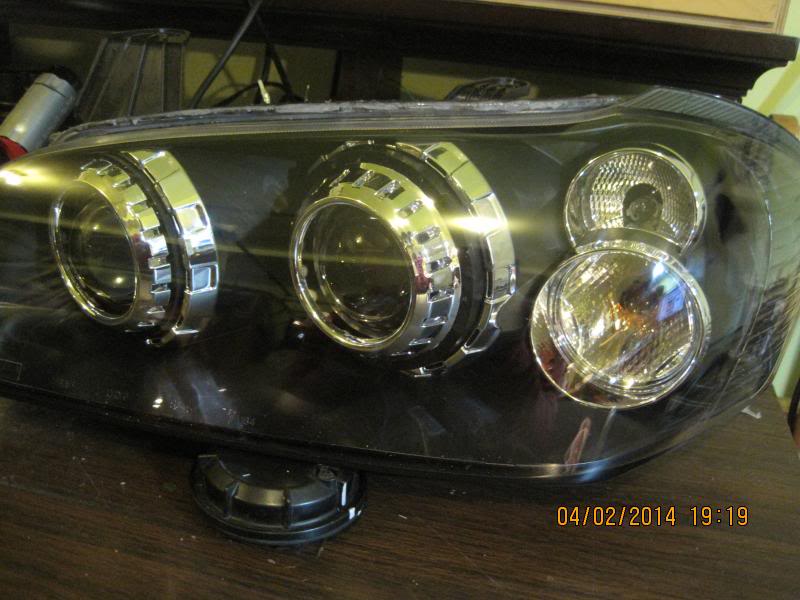

Shrouds and spacer mounting using screws and wire tensions ( to minimize space)






I like it



Yeah buddy it's looking good!

Do you need me to order another shroud?

S



I have them ordered already, I think it was my fault. No worries.

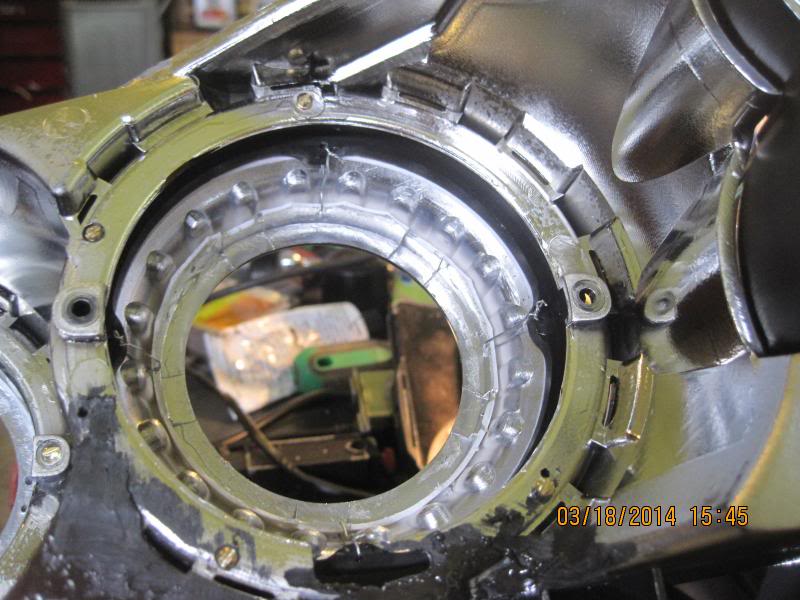

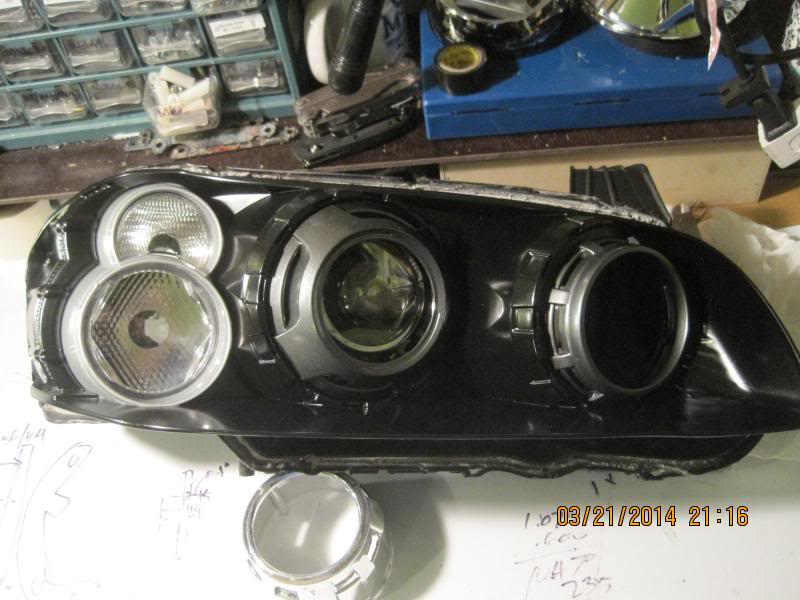

While waiting for MaximaSe86 shroud and solenoid replacement, I decided to make another set of retro using old parts I have just in case someone buys the ones I have for sale ( come one guys....make offers!). I Decided to refurbish the old beat up ebay housings and turned it into another FX-R retro. I have spare brackets laying around and decided to mod it and use it!

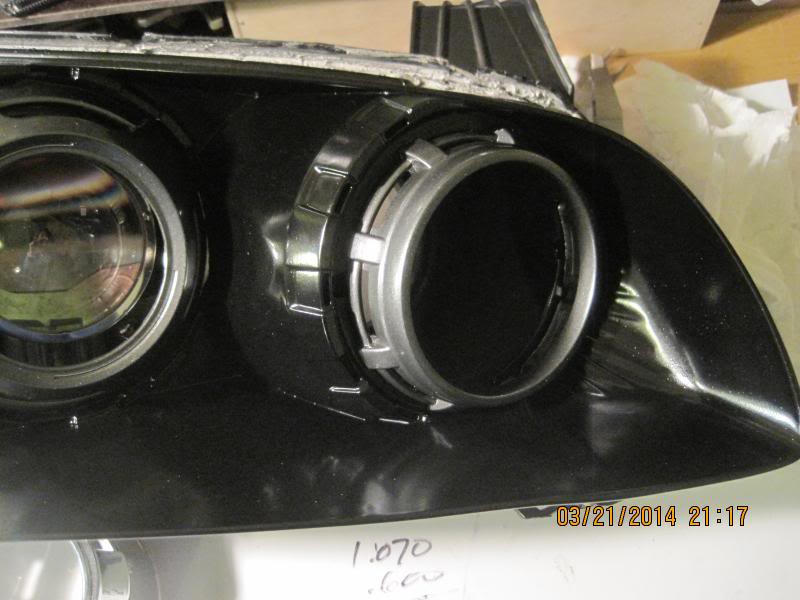

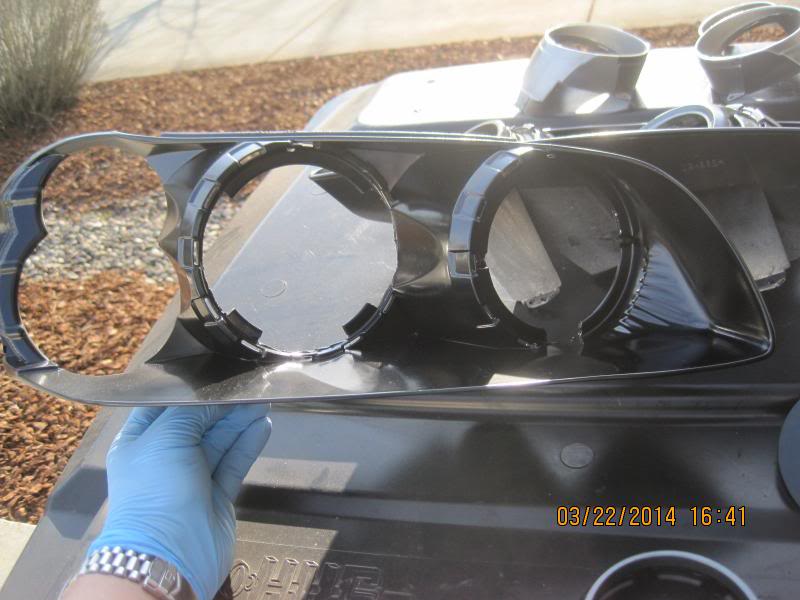

Painted bezel.

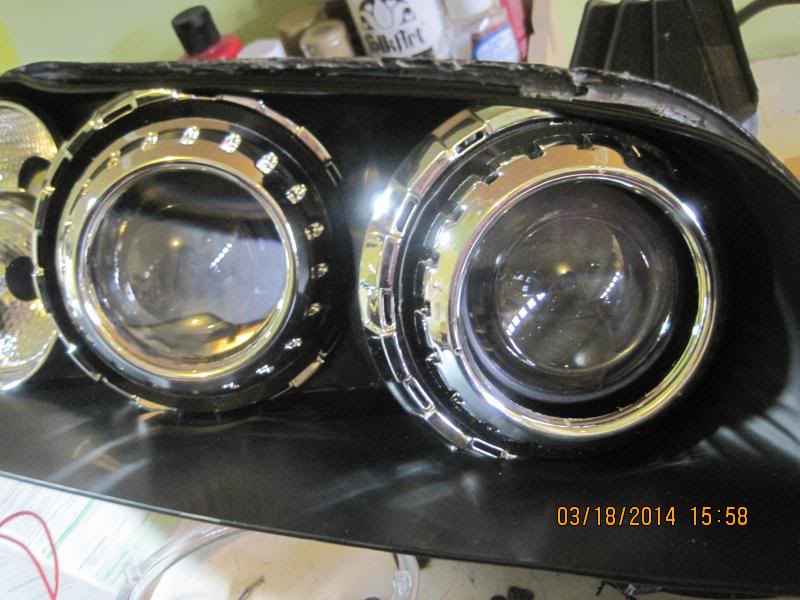

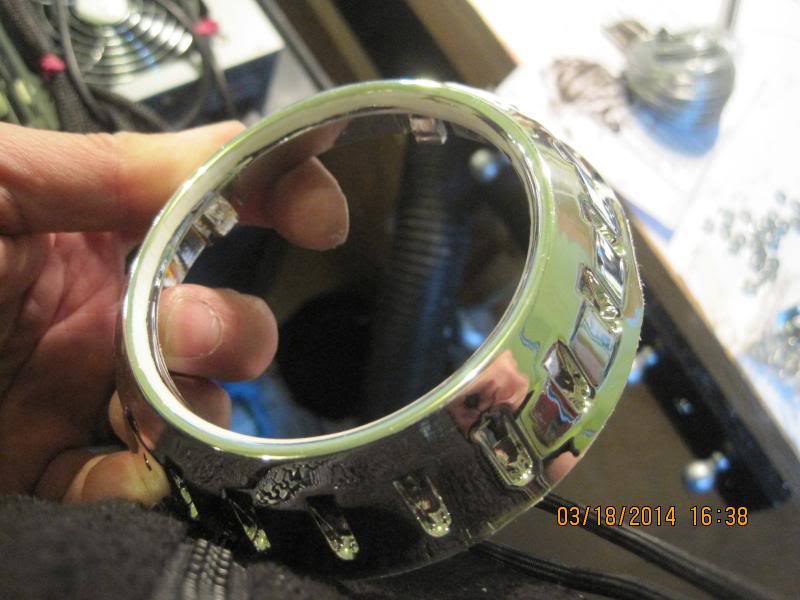

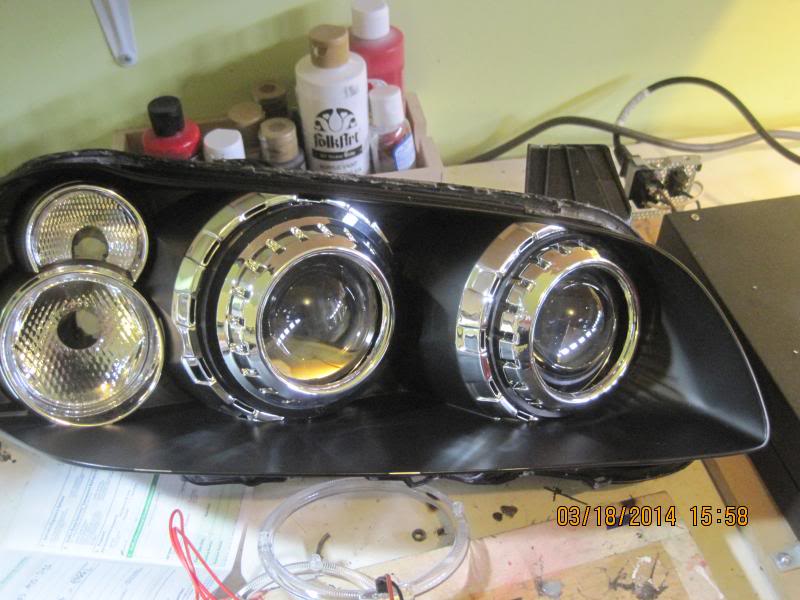

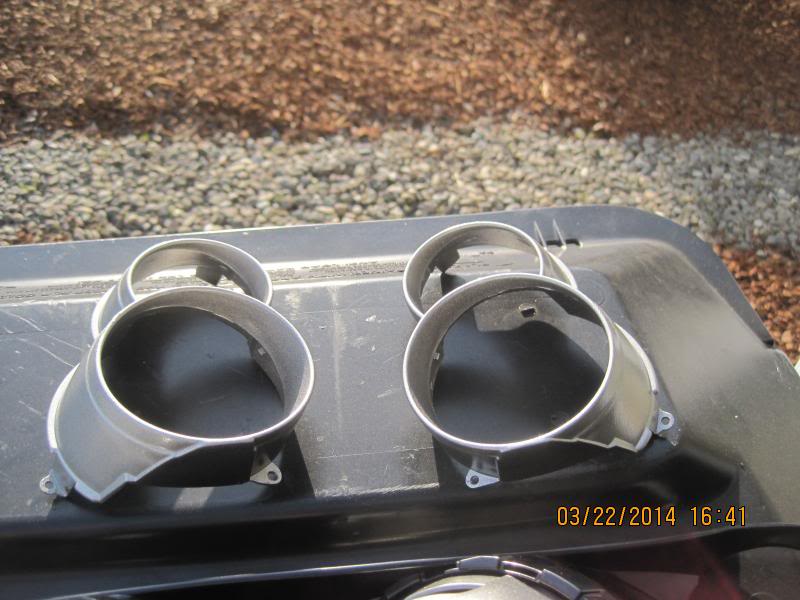

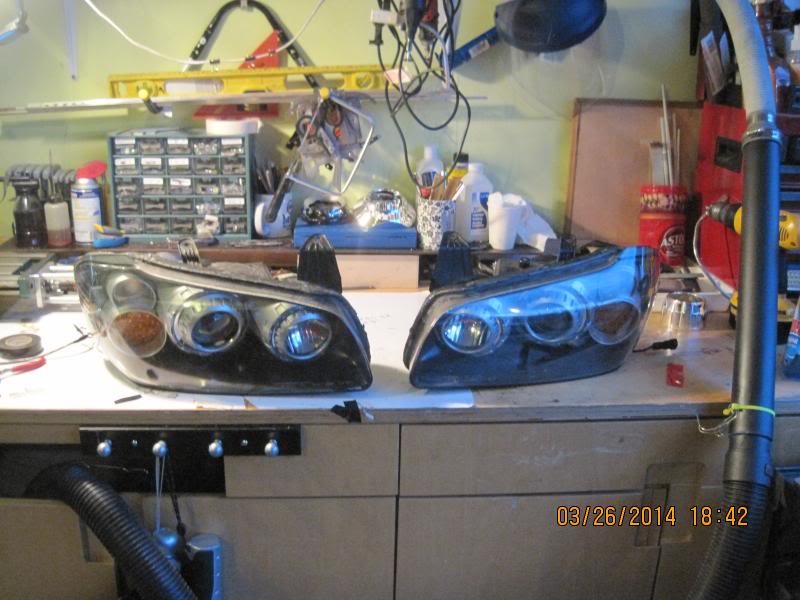

A couple of beat up/old mock up shrouds that I cleaned and trimmed and sprayed a couple of paint and clear coat. Considering all of these were used and mock up parts, I think I have pretty decent looking headlights assy
.



Not sure what I'm going to do with high beam yet,and no I'm not going to put any projector in there....maybe DRL, but I don't want to spend too much either.



Hey Genesis.. How much for these headlights^^^^???



Those are custom, a one off.



I have my old setup for sale if you are interested.....

http://forums.maxima.org/5th-generat...eadlights.html



I saw them...I them, But think these would look nicer on my car.lol



Hmm...I can't win, can I? What color is your car?



I guess this is a way to strum up business huh?



No...no, believe me I'm just trying to recoup all the expense on prototyping process and getting rid of stuff I don't need. These housings were the ones I used to prototype your headlights. Now that everything is almost done, I need room and funds to "finance" my other hobby which is completing my CNC machine. It's been 2 years in the making, its running but not the way I wanted. I made those brackets of yours on this machine too.....

Between yours, this, and the ones on my car I have 3 sets of retrofit. I think all of these combined would be about the price of my Max, crazy huh...



Ok, the old retro ( the ones for sale) is finally off the car ready for any potential new owner. It's still looking good other than the lens that got slightly oxidized.

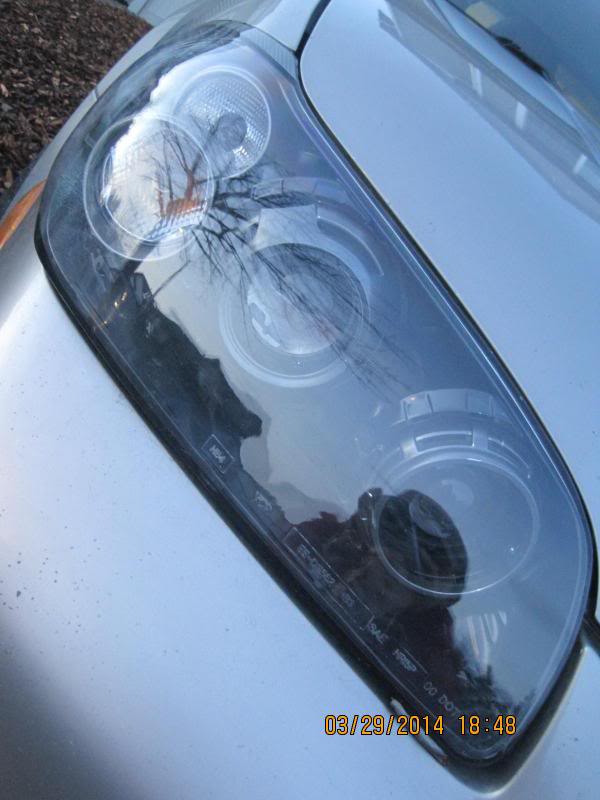

Replace above with these. No it's not a quad retro. That lens on the high beam spot is just the lens...for decoration...not a complete projector assy. I had to do something since I don't have the original reflector anymore and didn't want to put any projector in there.



Back to Maximase86 Quad retro.

Still waiting for the selenoid replacement for the driver side. Got the passenger side sealed and done.

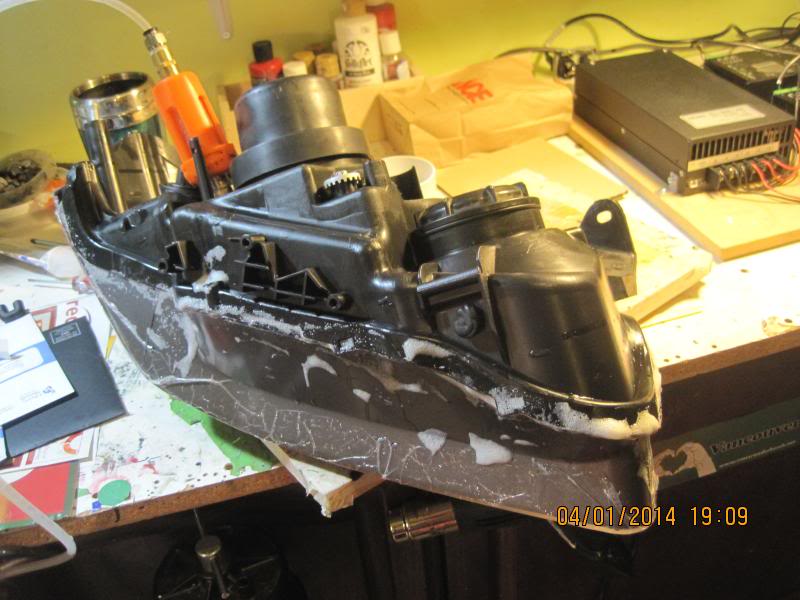

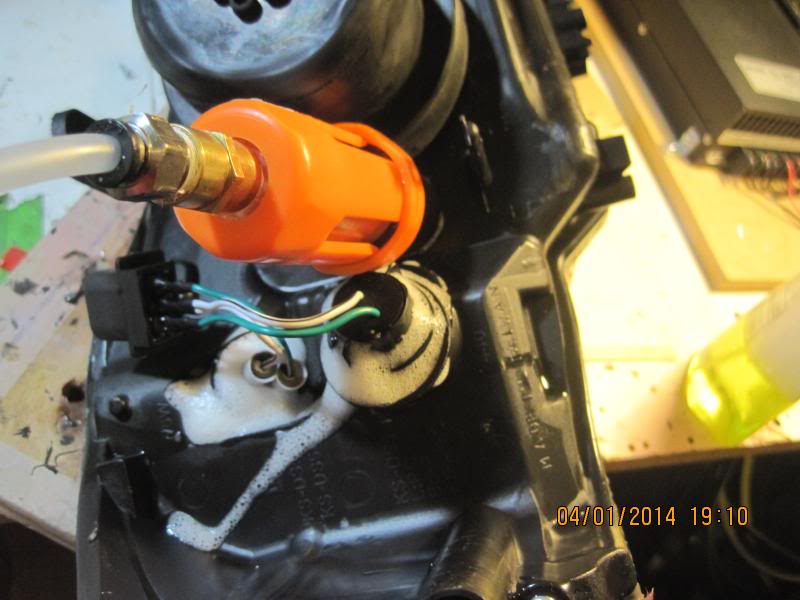

Pressurized headlight to check for water leak. This doesn't guarantee the regular condensation film from happening but to make sure that the seal is tight. Condensation films can occur from time to time especially if you sit on traffic for hours in heavy rain. This Ebay housing is so thin than the heat from engine bay is easily transferred inside the housing causing the air inside the housing to heat up and when the front lens is cooled by heavy rain condensation occurs.

I plan to extent the back housing where the high beam bulb sits to create special cap to make sure that there is no room for moisture to go in and to make room for silica gel. With silica gel those annoying condensation film from heavy rain moisture of pacific northwest should be eliminated.

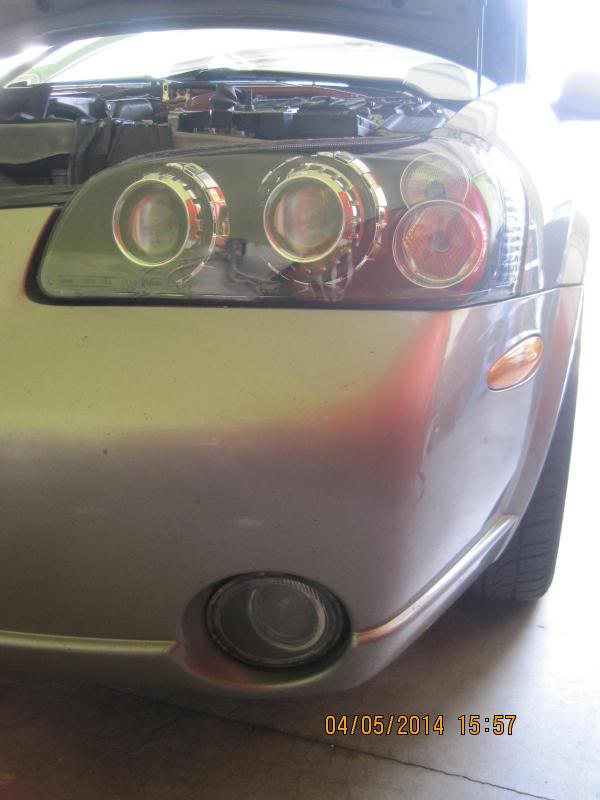

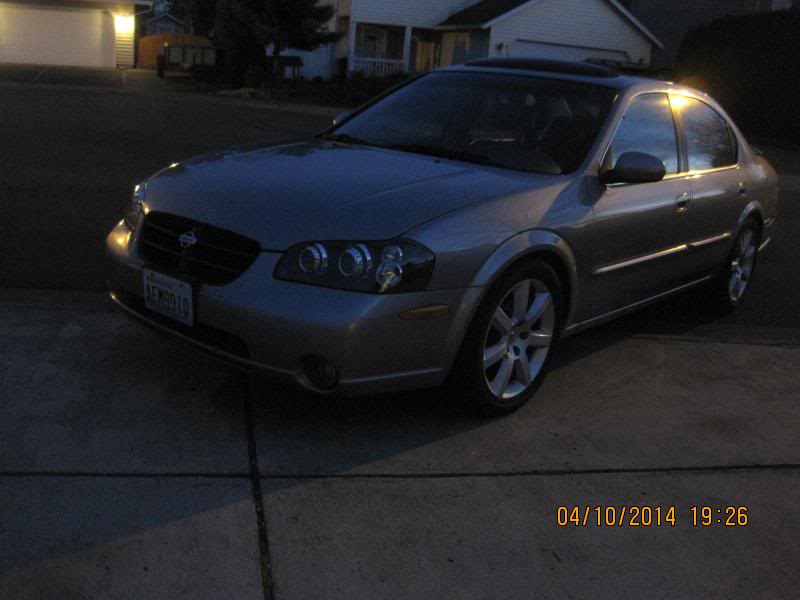

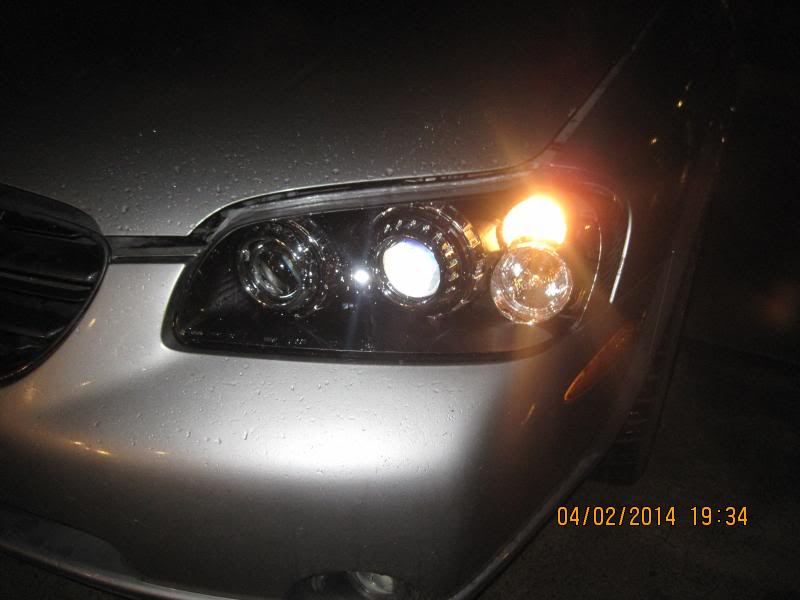

Currently installed in my car to test everything is in working condition.

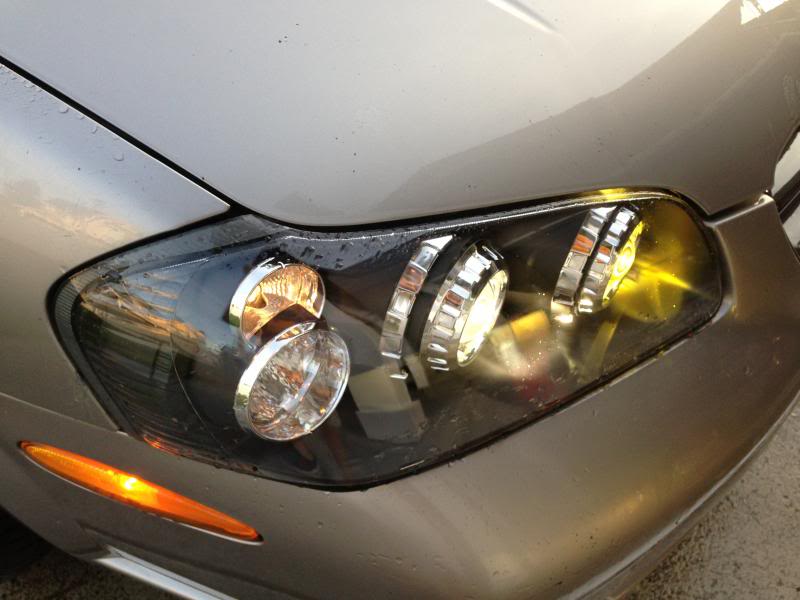

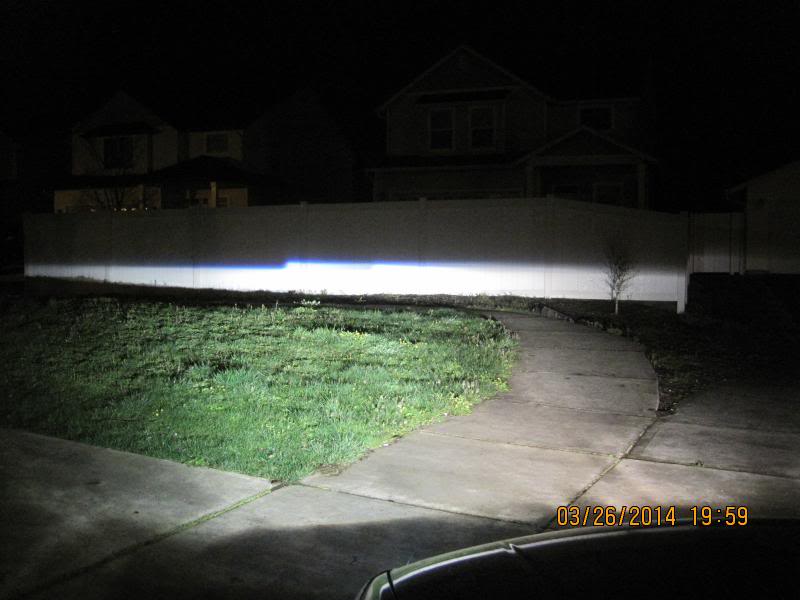

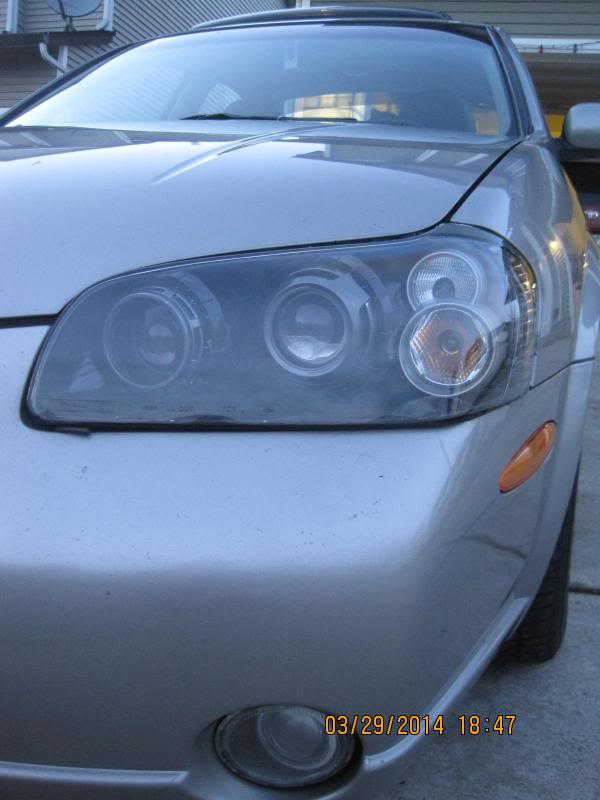

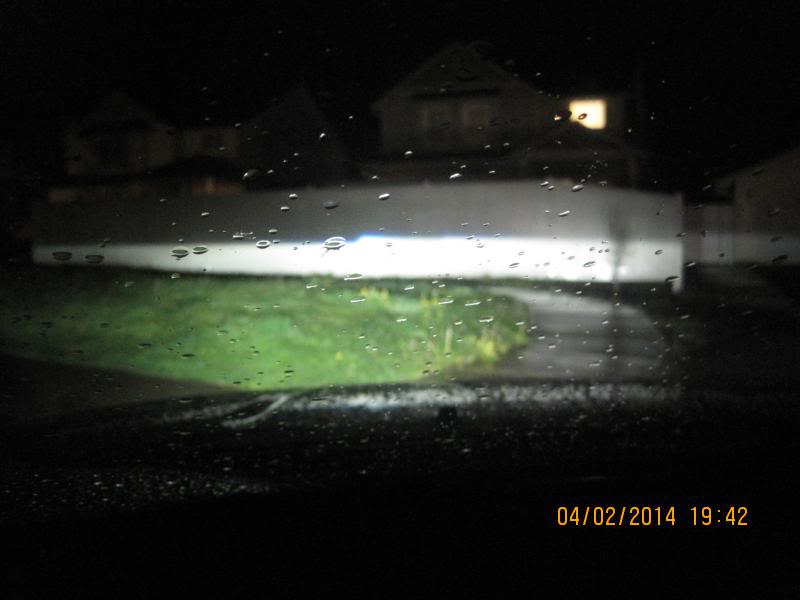

Passenger side is the quad FXRs, driver side is my current FXR 2.5" ( sorry for bad pic due to rain like EVERYDAY) It seems like the FXR 3.0" has alot more intensity than the FXR 2.5" I didn't really notice the width different either



Looking good. Can't wait!

S



Both sides are done and sealed. Extend the high beam back cap to fit the smallest TRS cap I can find. Mechanical fastening + JB weld filler + silicone.


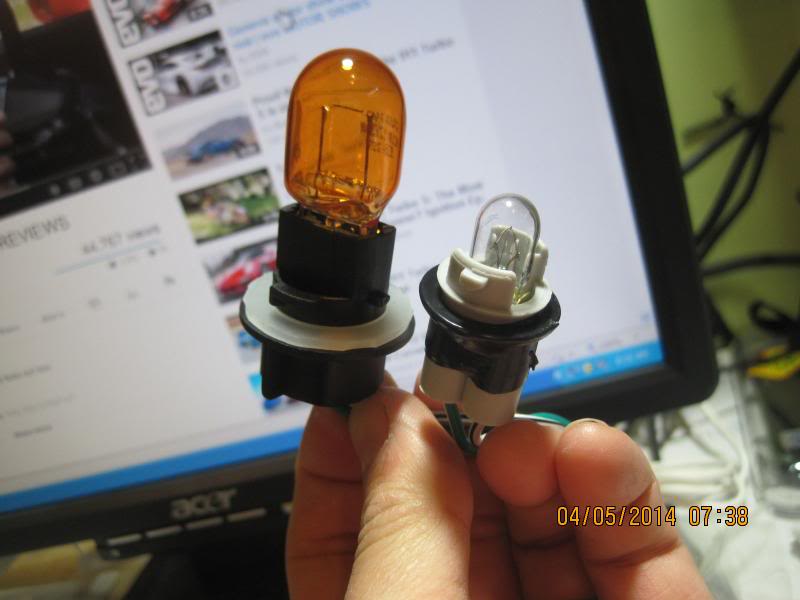

Added silicone washer and electical tape on the turn and parking signal for tight seal condition. These Ebay headlights are prone to leak on these area causing condensation.

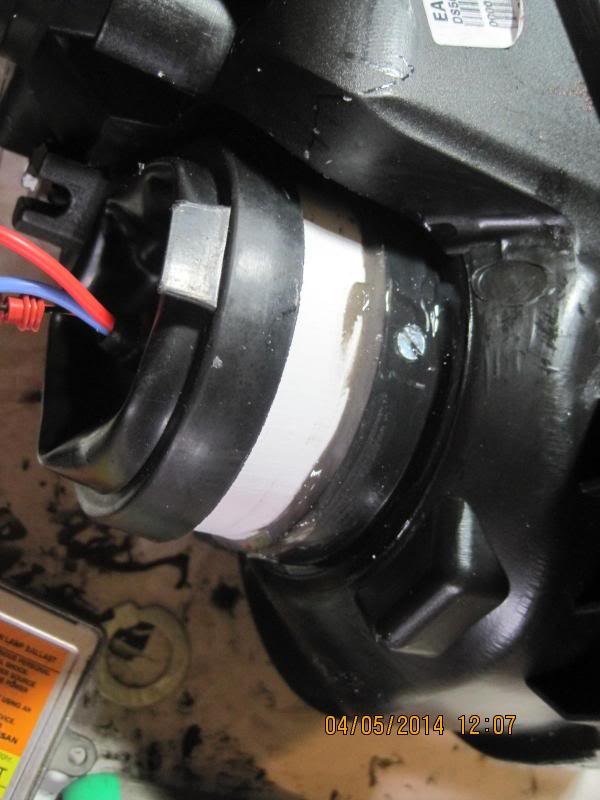

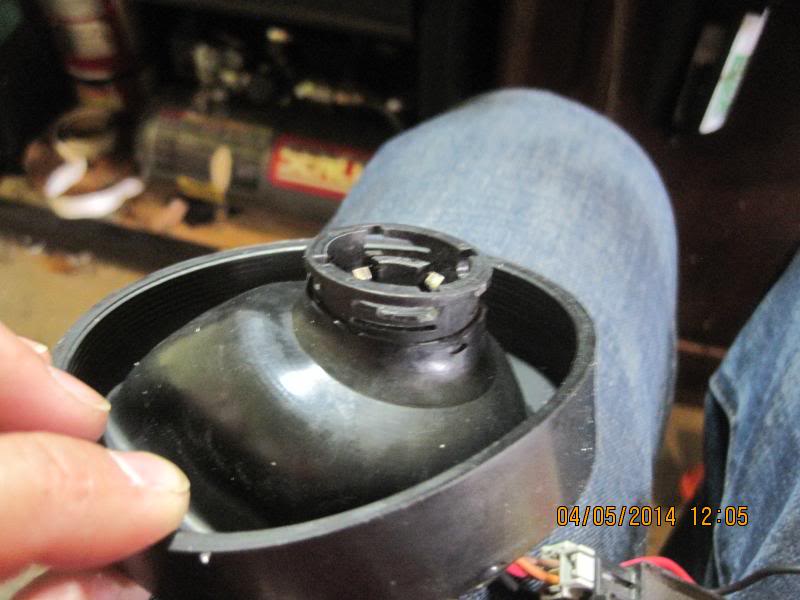

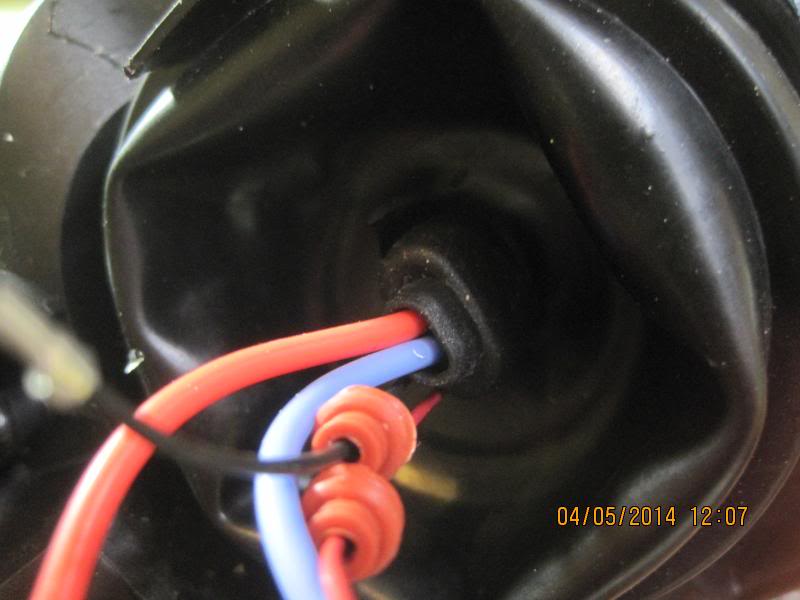

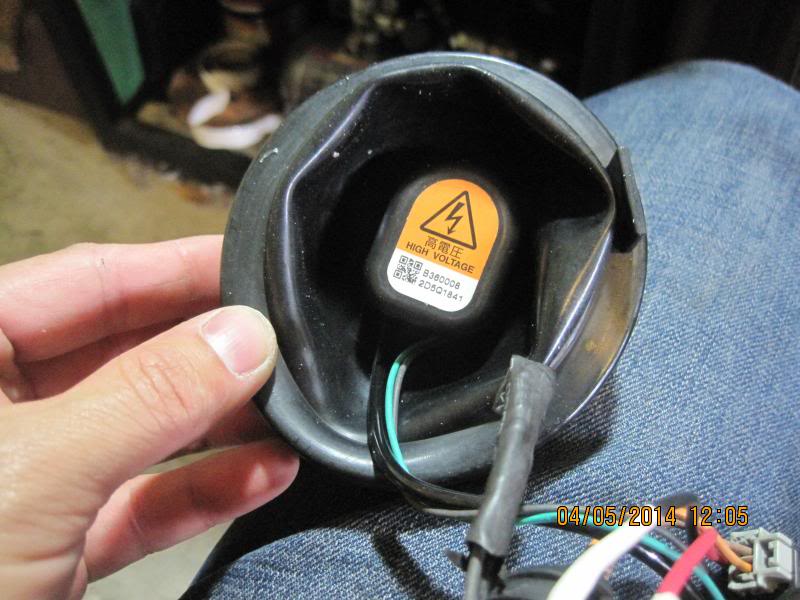

Low beam cap installation procedure.

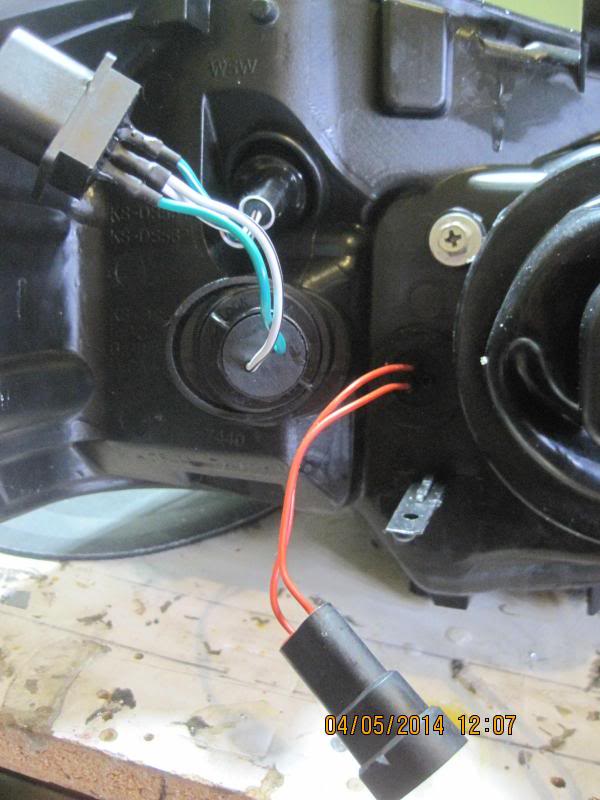

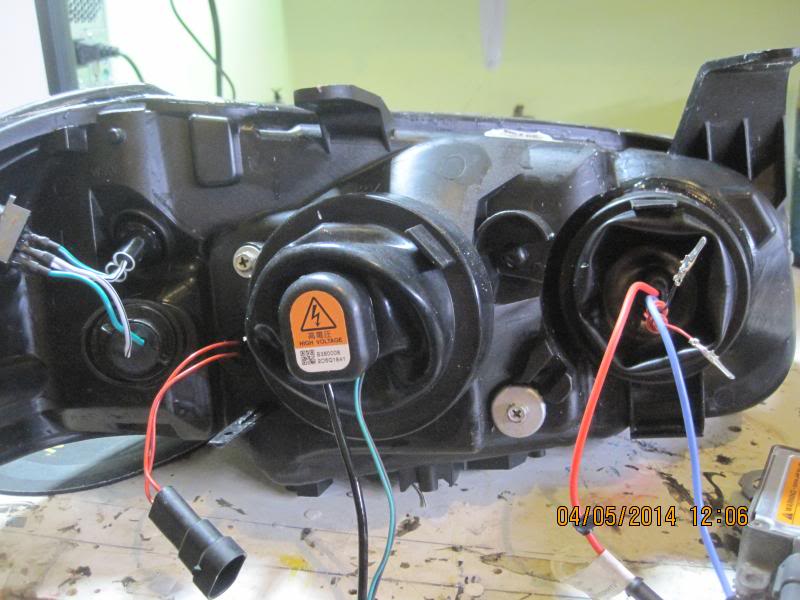

What the back should look like..




We'll test it for few days, hoping that I don't need any silica gel at all.



Nice work, i plan to do this but wanted to explore a factory option.

Can anyone verify post #15 that the 2002 maxima came with HID housings and if so can someone post a pic?

See post #15
http://forums.maxima.org/5th-generat...ght-issue.html



2002-2003 came with factory HID's. My car is an 2002 and had the factory units. Here is a stock shot from 2008.



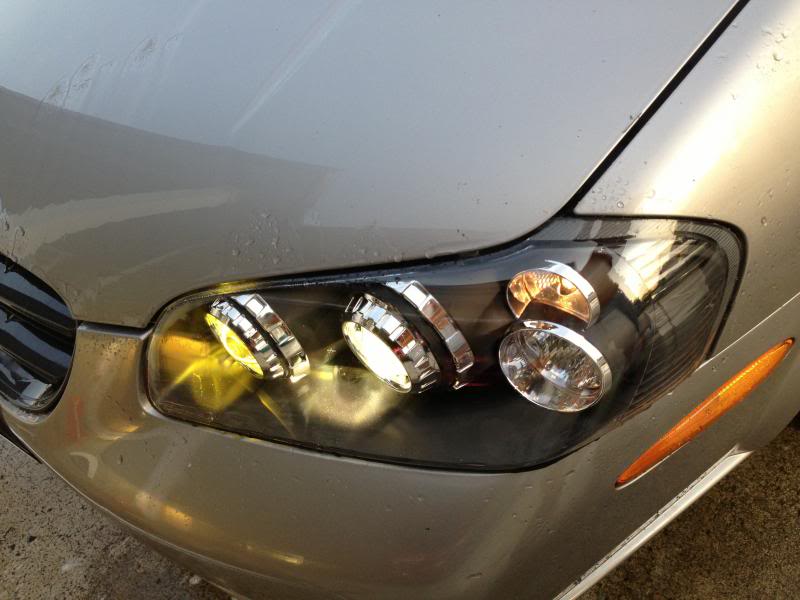

survived 1st manual car wash with engine running today....





Those look sick



Phew...it's a lot of work. No more quad retro for me, at least for awhile. I spent crazy hours designing and machining those brackets. The clearance between the headlight lens to the E46 shrouds extender is 1/16". This because the FXR 3" is 6" long from lens to bulb holder. Fitting the FXR 3" in the bucket was the hardest retro for me so far. The Mini h1 was pretty straight forward to the the small size



Well I hope you enjoyed the challenge I put your through! You should definitely use the pictures from this retro as well as your others to build a portfolio of your work to show future clients!

S



It was a good challenge for sure. I know now that you can fit pretty much anything on this headlight other than TL projector. The FXR 2.5" was pretty easy to fit it with only 5.5" overall length. RX350 Bi-X was also pretty easy. I made a pair of bracket of RX350 Bi-X for someone here in the .org, hopefully he posts the builds, I'd be very interested to see the result.



Want a 4 th gen light to build a bracket for my rx350 job?



The reflector bucket is big enough for projector, but I can defenetly build you a pair of brackets if you are serious about it.



Can I have some brackets for my rx330s going in my 5.5's ? :'(



I'm thinking about it. Mainly because I'm scared to death of getting the rotational alignment screwed up...



With custom bracket, rotational alignment is much quicker to adjust and in case you have to replace the projector, it would be a lot quicker.



Would you need one of my 99 lights to build the bracket?



May be not. Ideally you would open the light and do the fitting first. I would then need few dimensions based on your mock up to build the bracket. Your light has flat bottom reflector so tha bracket is going to be mounted in there. The idea is to have you do most of the work with bracket that I made, that way you save a bunch money.

I do thing you're ok without bracket though and I can give you pointer. I have RX350 Bi-x so I know how big they are incase you still want bracket done.



I'll chat with you when you come up for Sarin's install



Took the quad retro for a second car wash tonight.



Drove for about 5 miles to stop at fedex station, no problem, no condensation.


Drove around some more...


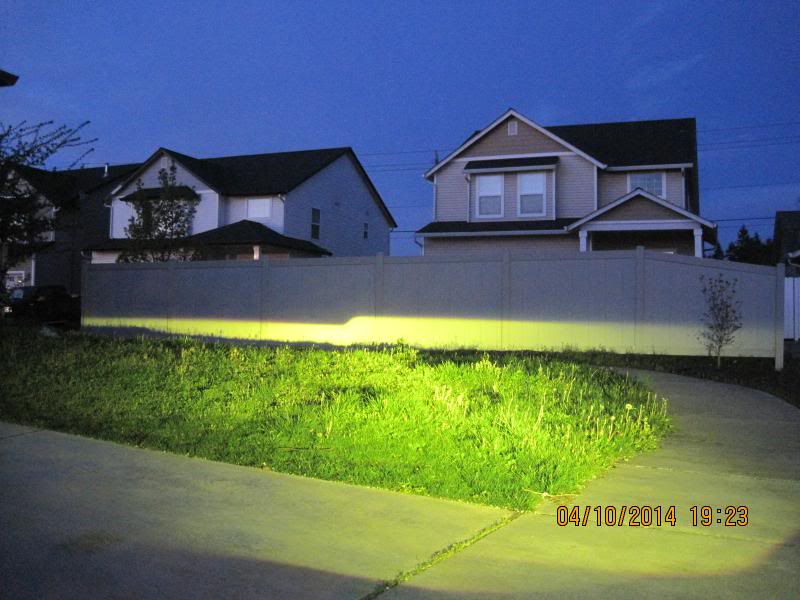

Mini H1s only

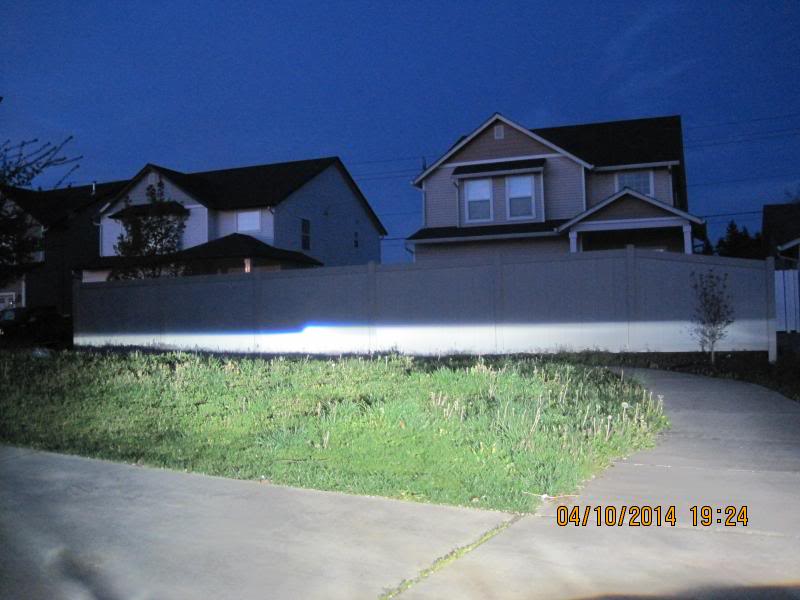

FXRs only

FXR high beam

Both

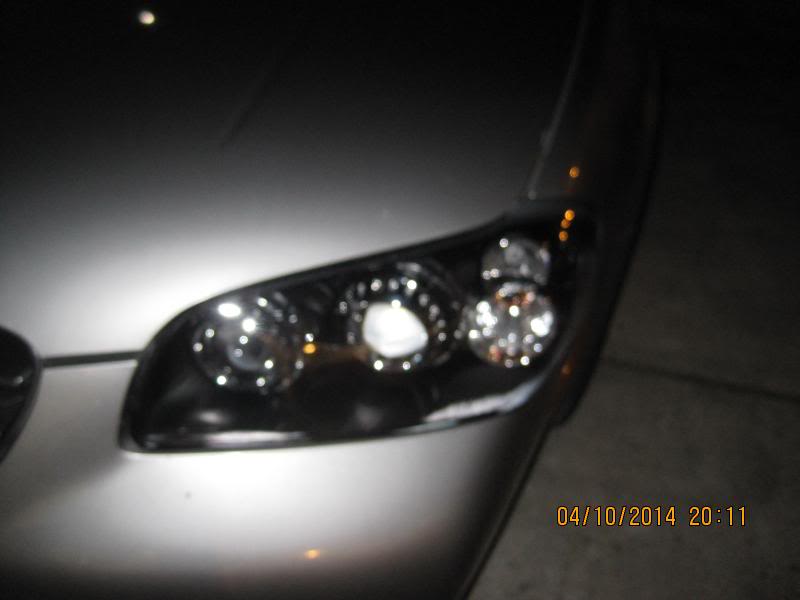

Close up


looks really good on the car I think.. Notice....still no condensation.....



Went for a drive to video shoot...


Parked the car, went outside to get mail, then condensation appeared on the driver side. It happened few days back when it was raining hard here too (after 30 minutes drive). I re-sealed and re-test it and it was water tight. Only on the driver side, which is strange. I think its time to place the Silicon pack.


1 hour later the right section is gone....

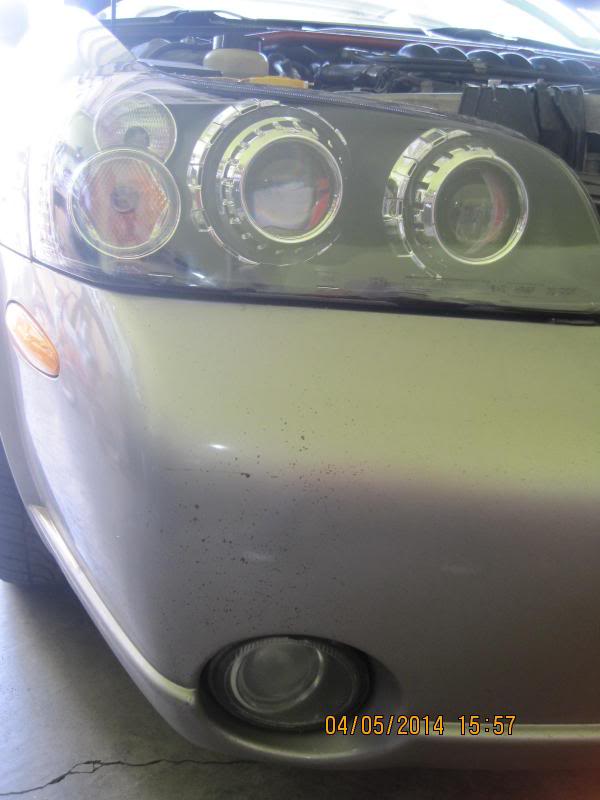

Here are some pics of the final install on my car of the FX-R 3.0/Mini Quad setup:

Initial Fitment

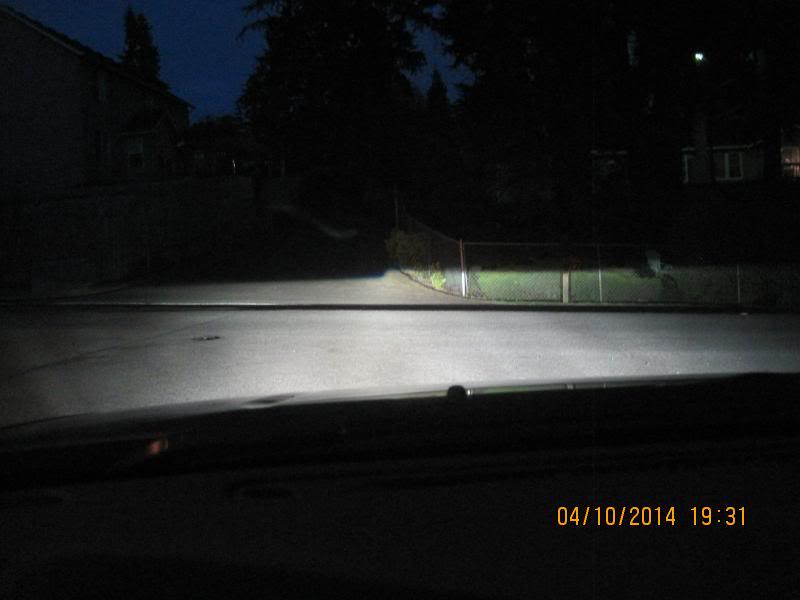

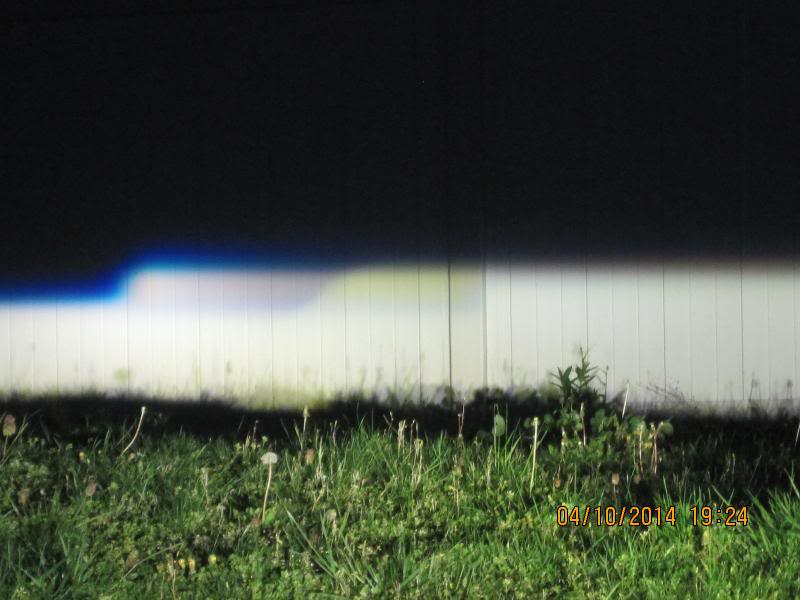

Aiming




Comparison

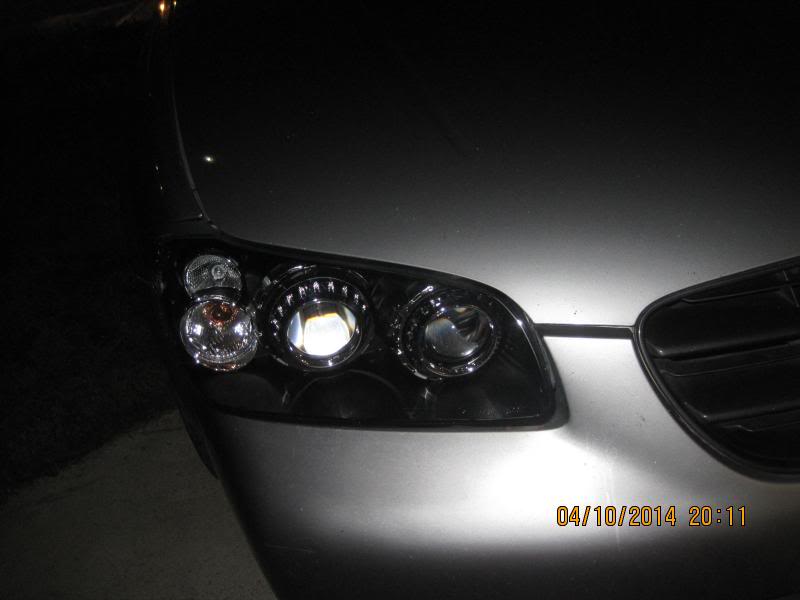

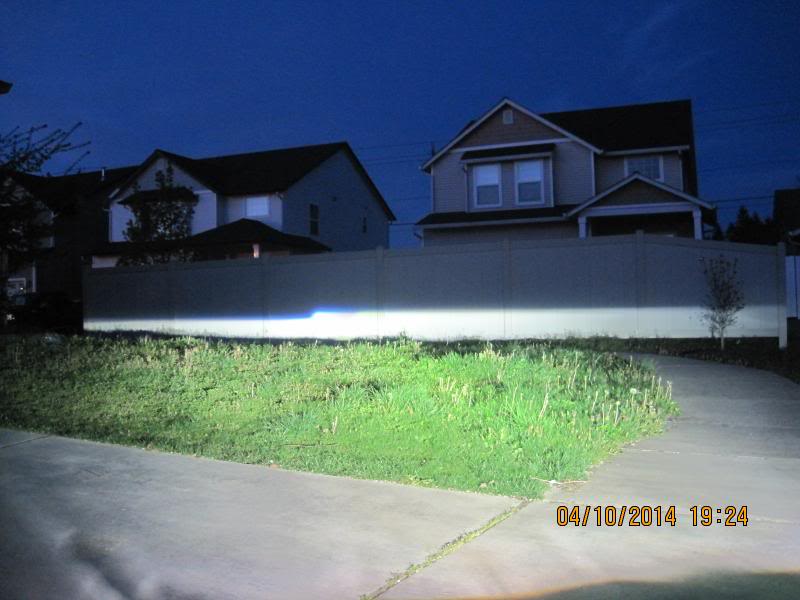

High Beam in Quad Mode

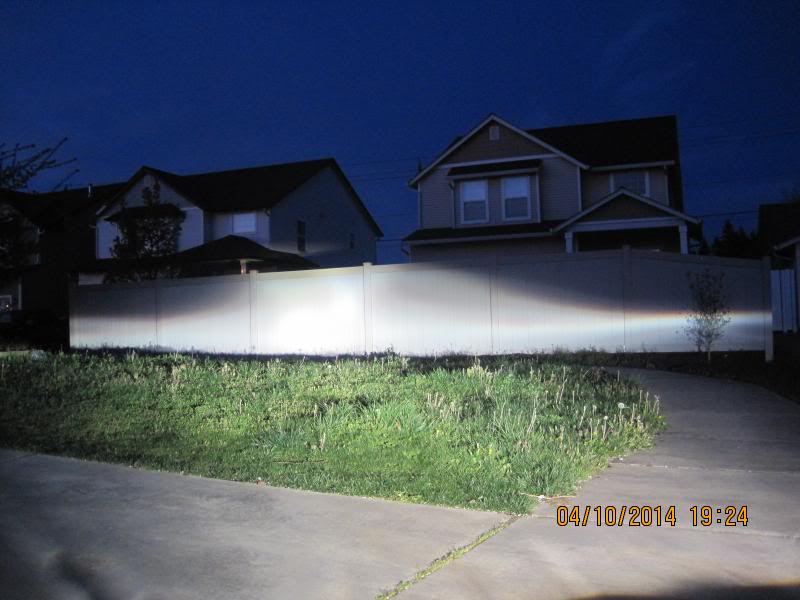

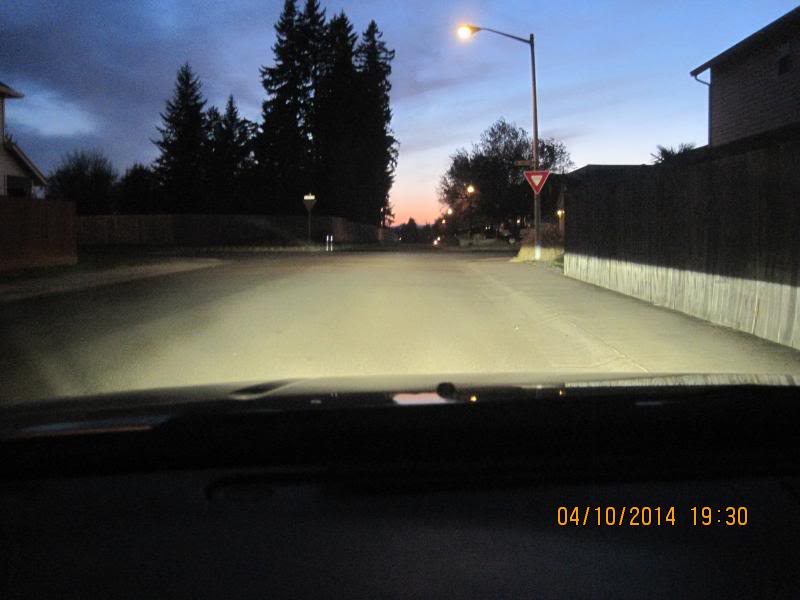

That output
